Gigabyte MU70-SU0 (rev. 1.0) [73/125] Acpi t states

- 73 - BIOS Setup

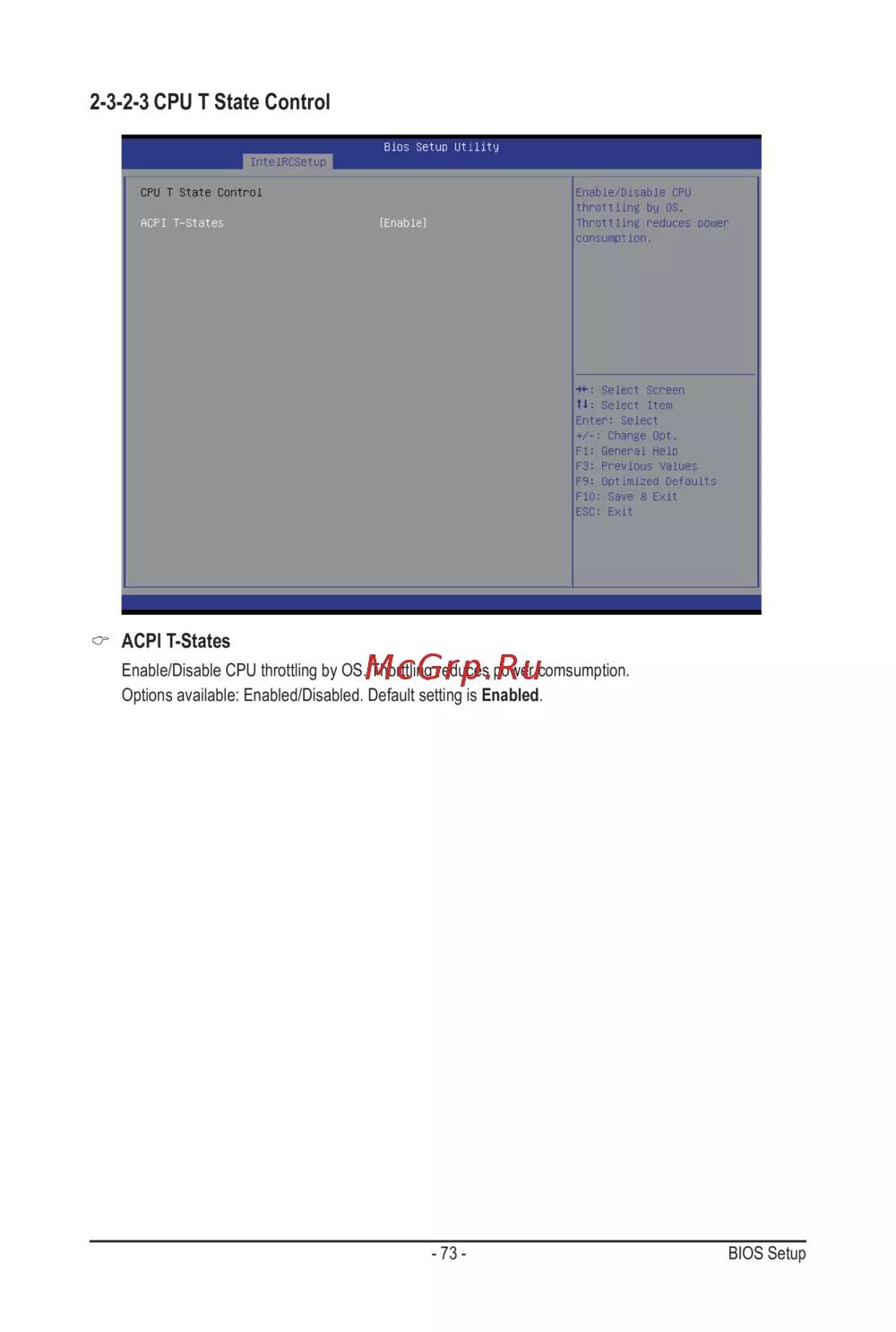

2-3-2-3 CPU T State Control

ACPI T-States

Enable/Disable CPU throttling by OS. Thorttling reduces power comsumption.

Options available: Enabled/Disabled. Default setting is Enabled.
