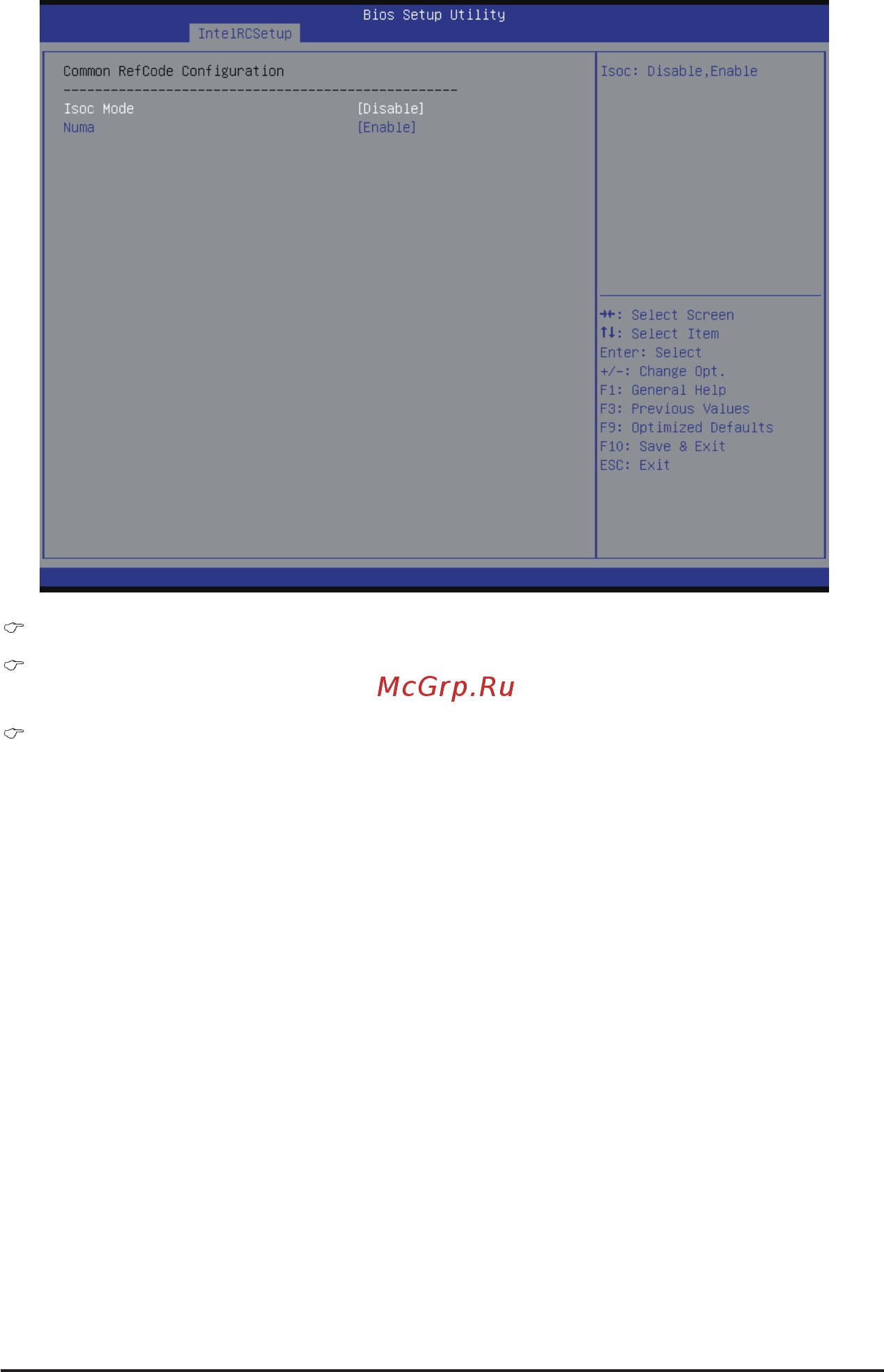

2-3-3 Common RefCode Conguration

Common RefCode Conguration

Isoc Mode

Options available: Auto/Enabled/Disabled. Default setting is Auto.

Numa (Non-Uniform Memory Access)

Options available: Enabled/Disabled. Default setting is Enabled.
