Gigabyte MU70-SU0 (rev. 1.0) [80/125] Set throttling mode

BIOS Setup - 80 -

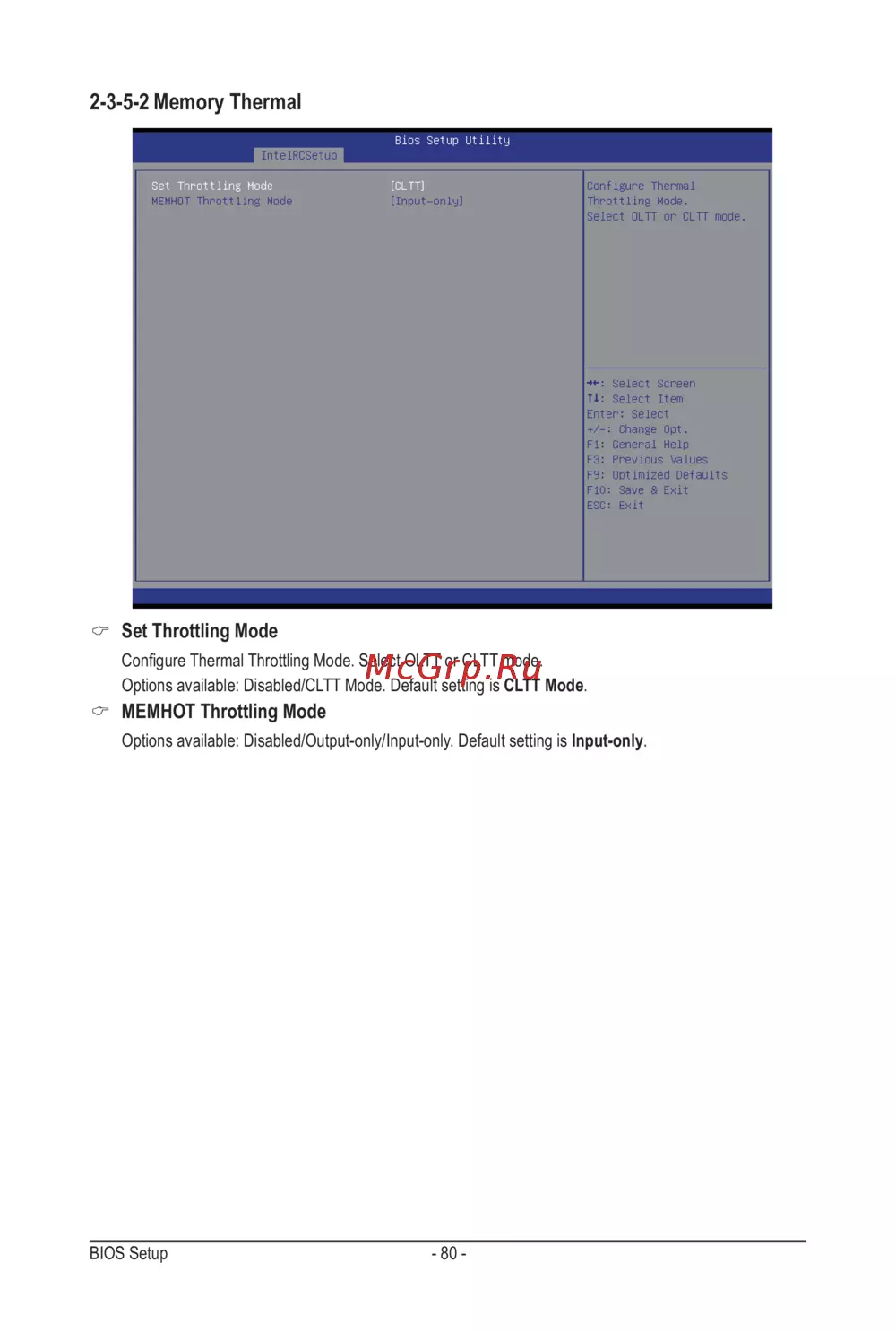

2-3-5-2 Memory Thermal

Set Throttling Mode

 CongureThermalThrottlingMode.SelectOLTTorCLTTmode.

Options available: Disabled/CLTT Mode. Default setting is CLTT Mode.

MEMHOT Throttling Mode

Options available: Disabled/Output-only/Input-only. Default setting is Input-only.
