Gigabyte MU70-SU0 (rev. 1.0) [83/125] Ioat configuration

- 83 - BIOS Setup

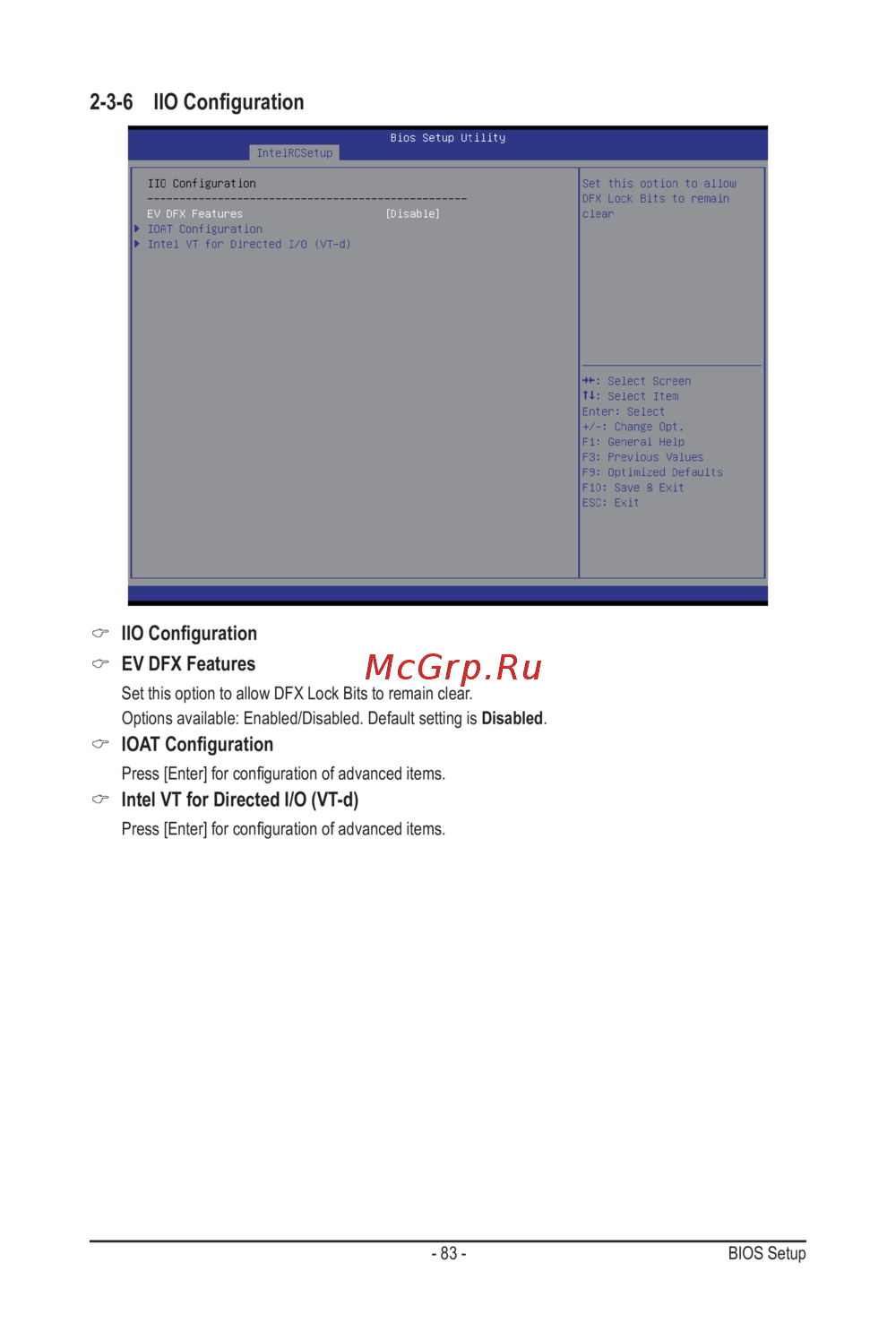

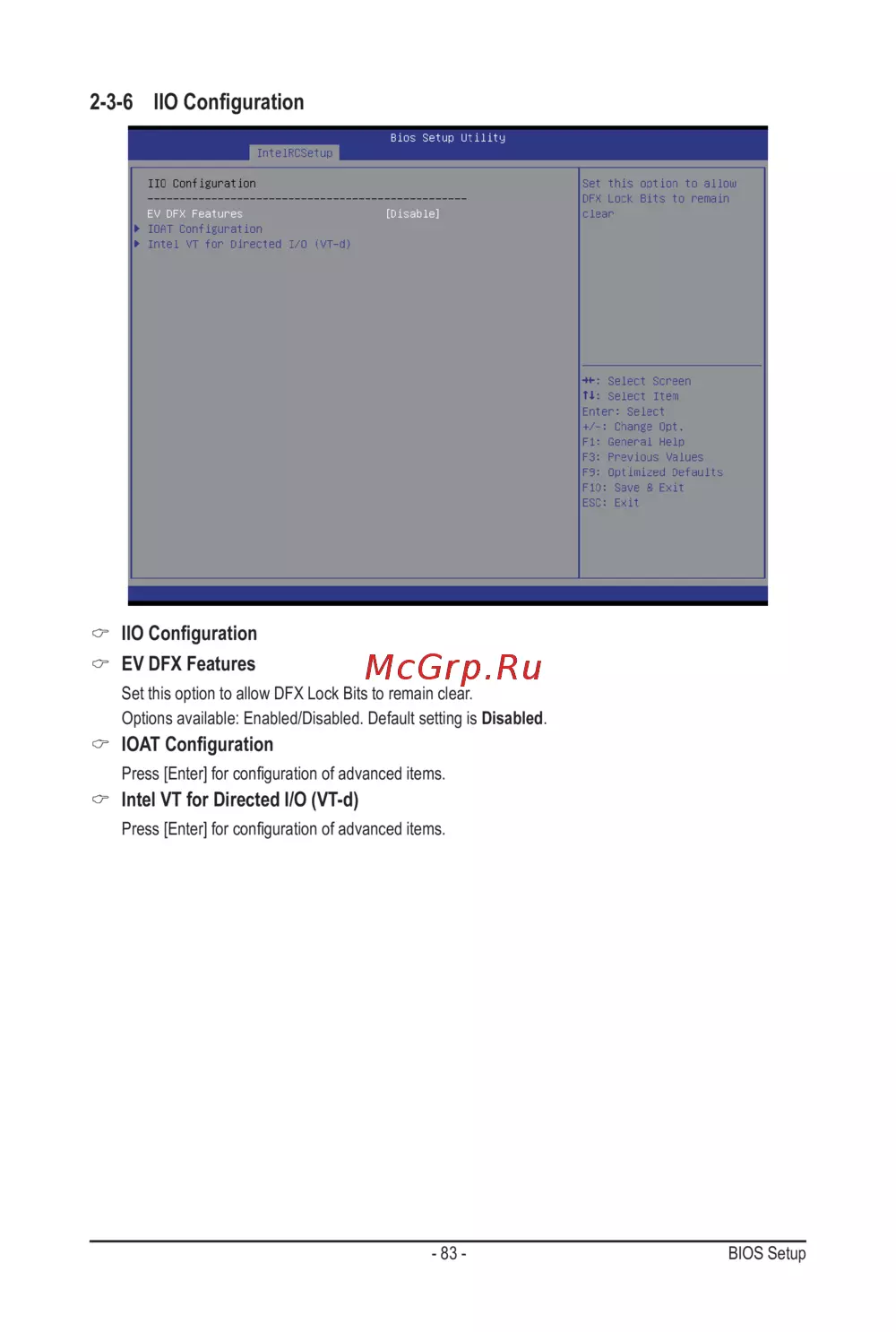

2-3-6 IIO Conguration

IIO Conguration

EV DFX Features

Set this option to allow DFX Lock Bits to remain clear.

Options available: Enabled/Disabled. Default setting is Disabled.

IOAT Conguration

Press[Enter]forcongurationofadvanceditems.

Intel VT for Directed I/O (VT-d)

Press[Enter]forcongurationofadvanceditems.
