Gigabyte MU70-SU0 (rev. 1.0) [86/125] Usb configuration

BIOS Setup - 86 -

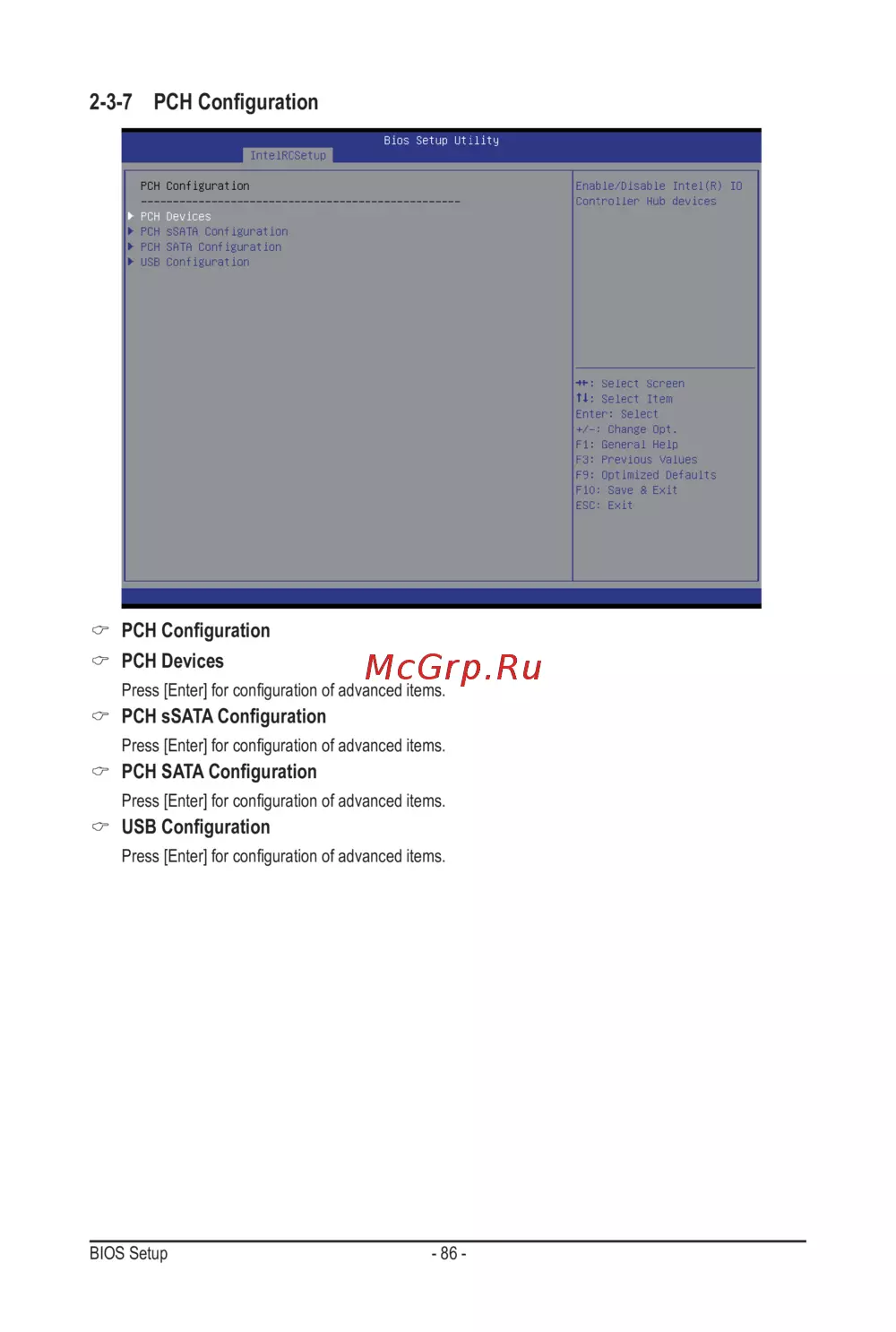

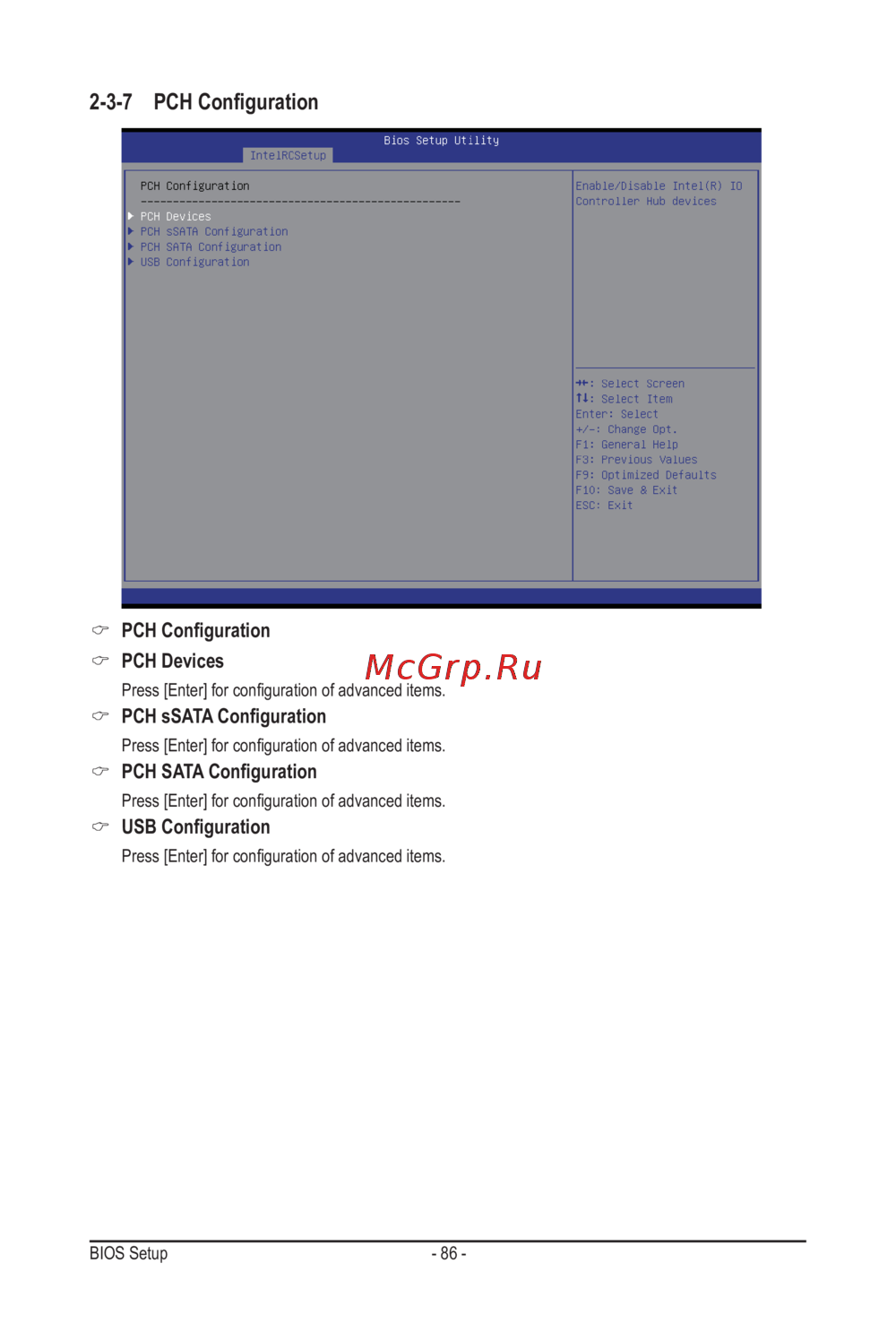

2-3-7 PCH Conguration

PCH Conguration

PCH Devices

Press[Enter]forcongurationofadvanceditems.

PCH sSATA Conguration

Press[Enter]forcongurationofadvanceditems.

PCH SATA Conguration

Press[Enter]forcongurationofadvanceditems.

USB Conguration

Press[Enter]forcongurationofadvanceditems.
