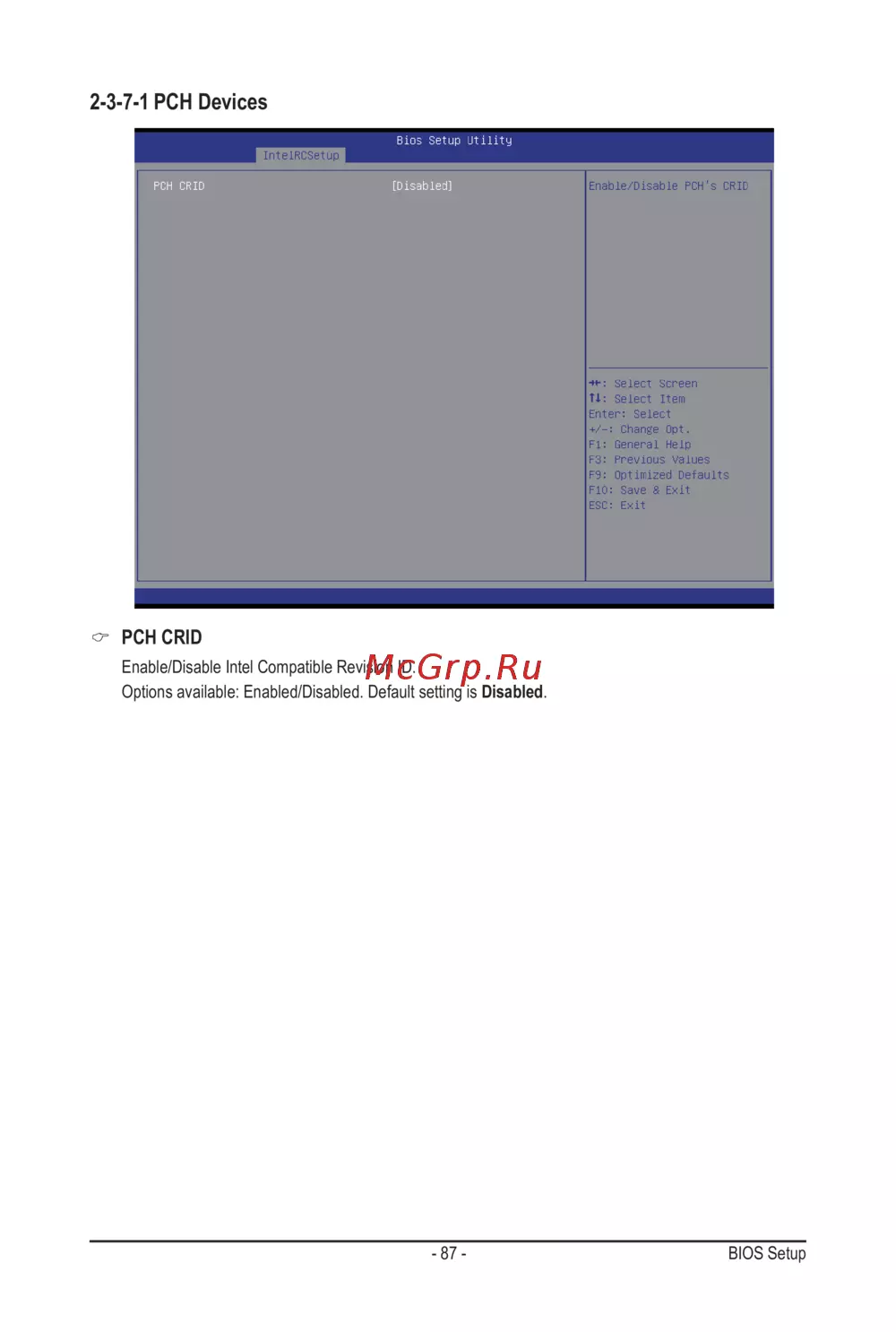

Gigabyte MU70-SU0 (rev. 1.0) [87/125] Pch crid

- 87 - BIOS Setup

2-3-7-1 PCH Devices

PCH CRID

Enable/Disable Intel Compatible Revision ID.

Options available: Enabled/Disabled. Default setting is Disabled.
