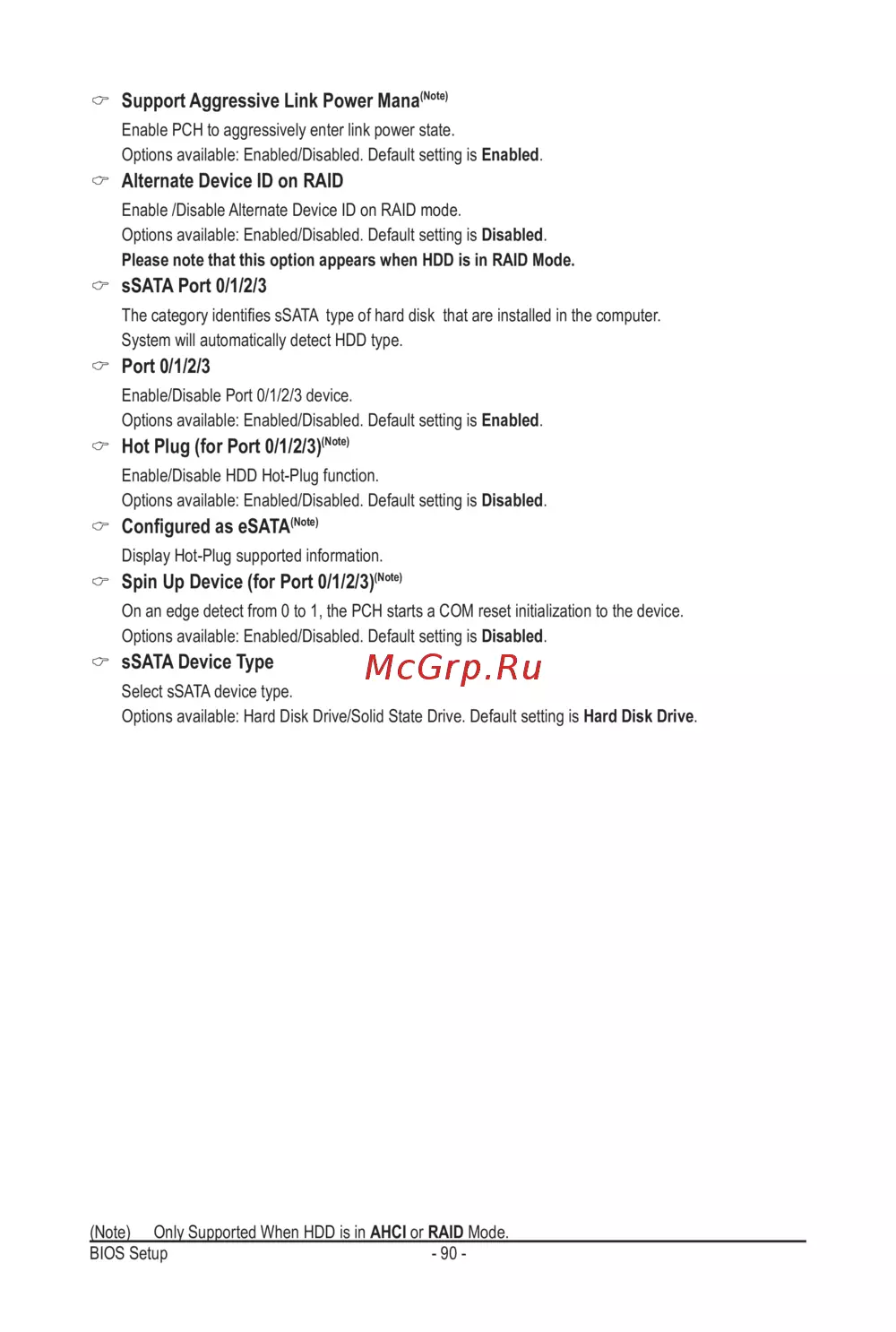

BIOS Setup - 90 -
Support Aggressive Link Power Mana
(Note)
Enable PCH to aggressively enter link power state.
Options available: Enabled/Disabled. Default setting is Enabled.
Alternate Device ID on RAID
Enable /Disable Alternate Device ID on RAID mode.
Options available: Enabled/Disabled. Default setting is Disabled.
Please note that this option appears when HDD is in RAID Mode.
sSATA Port 0/1/2/3
ThecategoryidentiessSATAtypeofharddiskthatareinstalledinthecomputer.
System will automatically detect HDD type.
Port 0/1/2/3
Enable/Disable Port 0/1/2/3 device.
Options available: Enabled/Disabled. Default setting is Enabled.
Hot Plug (for Port 0/1/2/3)
(Note)
Enable/Disable HDD Hot-Plug function.
Options available: Enabled/Disabled. Default setting is Disabled.
Congured as eSATA
(Note)
Display Hot-Plug supported information.
Spin Up Device (for Port 0/1/2/3)
(Note)
On an edge detect from 0 to 1, the PCH starts a COM reset initialization to the device.
Options available: Enabled/Disabled. Default setting is Disabled.
sSATA Device Type
Select sSATA device type.
Options available: Hard Disk Drive/Solid State Drive. Default setting is Hard Disk Drive.
(Note) Only Supported When HDD is in AHCI or RAID Mode.
