Gigabyte MU70-SU0 (rev. 1.0) [96/125] When sata type is set to ide ahci mode

BIOS Setup - 96 -

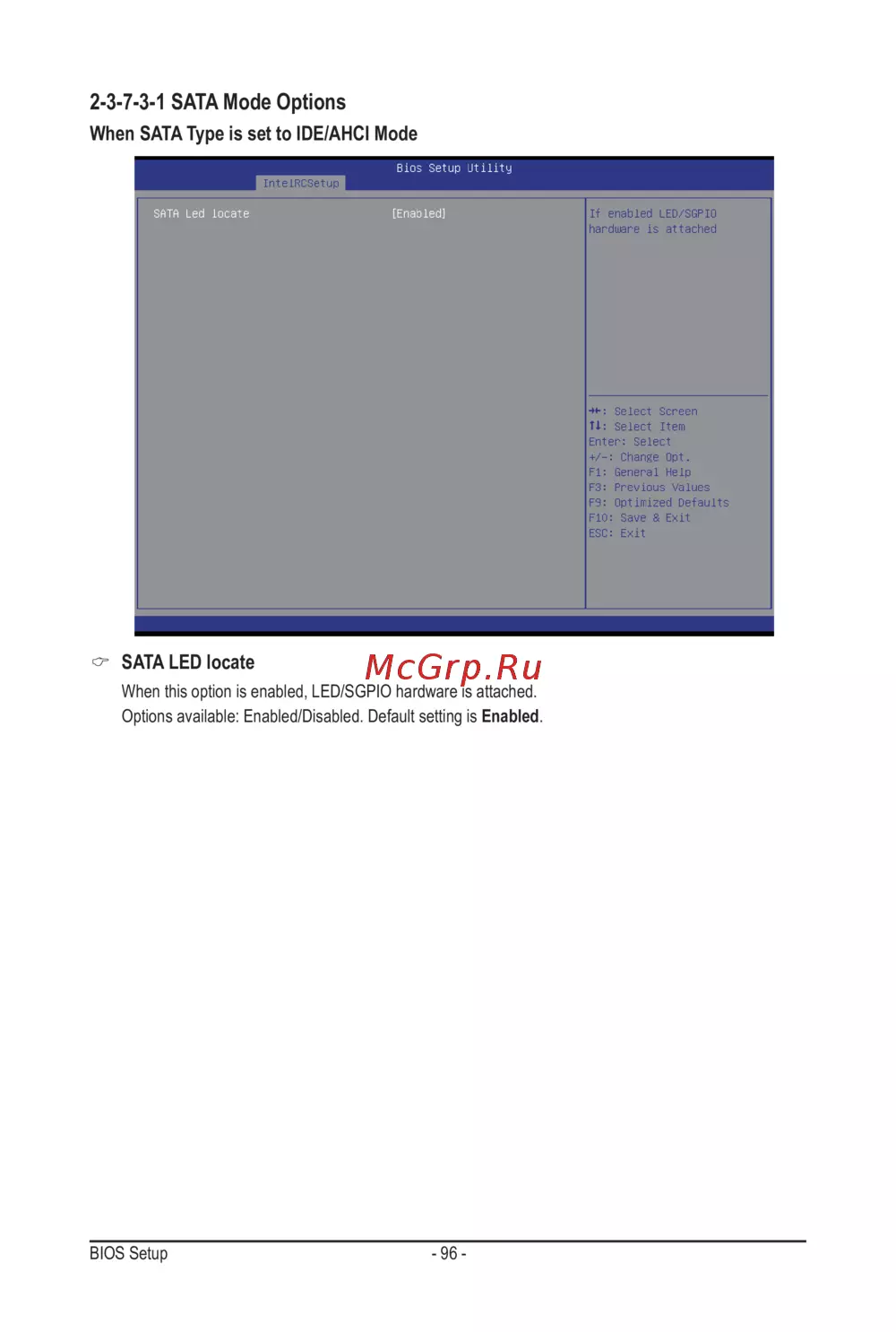

2-3-7-3-1 SATA Mode Options

SATA LED locate

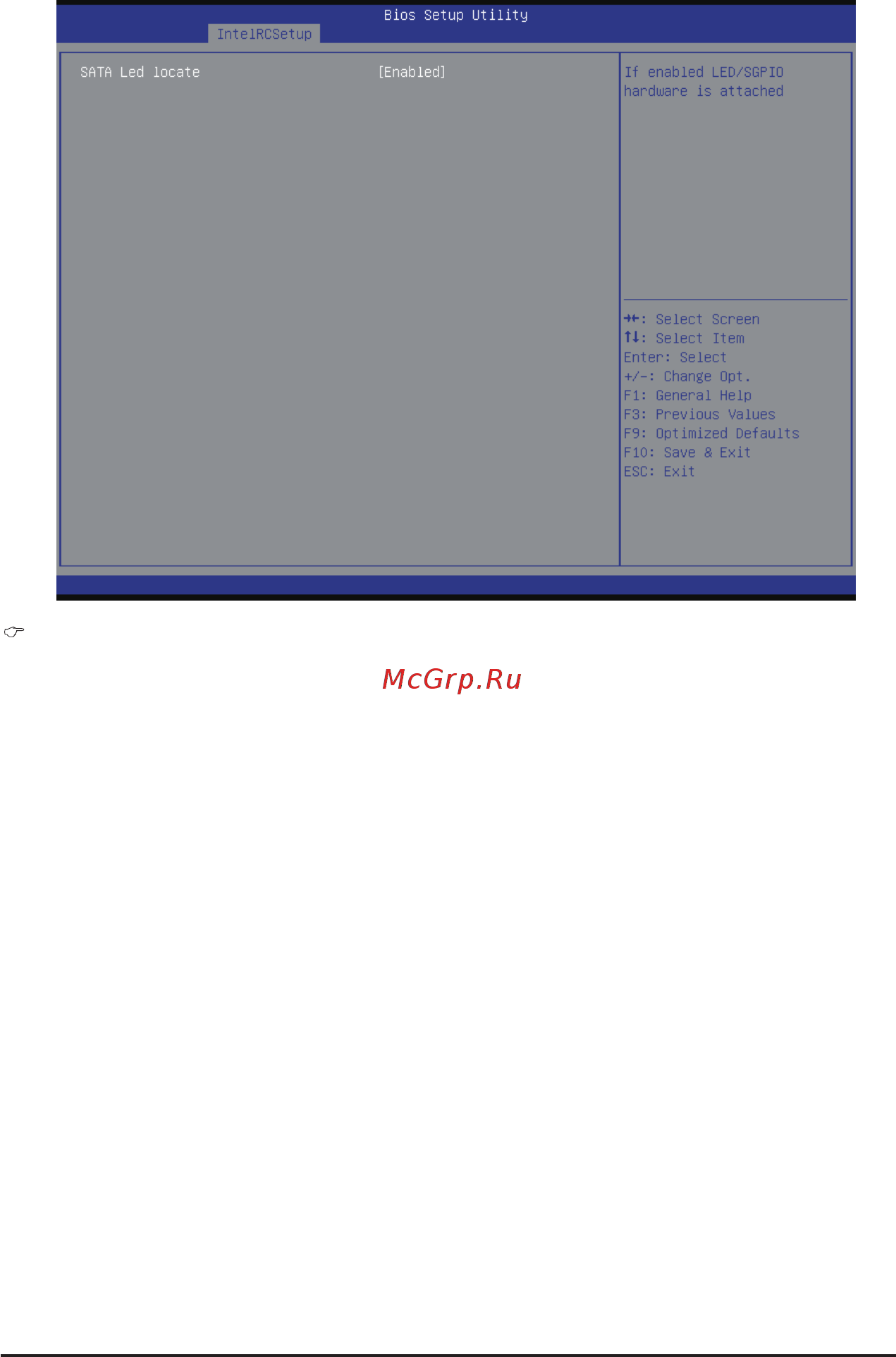

When this option is enabled, LED/SGPIO hardware is attached.

Options available: Enabled/Disabled. Default setting is Enabled.

When SATA Type is set to IDE/AHCI Mode
