MU70-SU0 (rev. 1.0)
Инструкция Страница: 99

Gigabyte MU70-SU0 (rev. 1.0) [99/125] Miscellaneous configuration active video

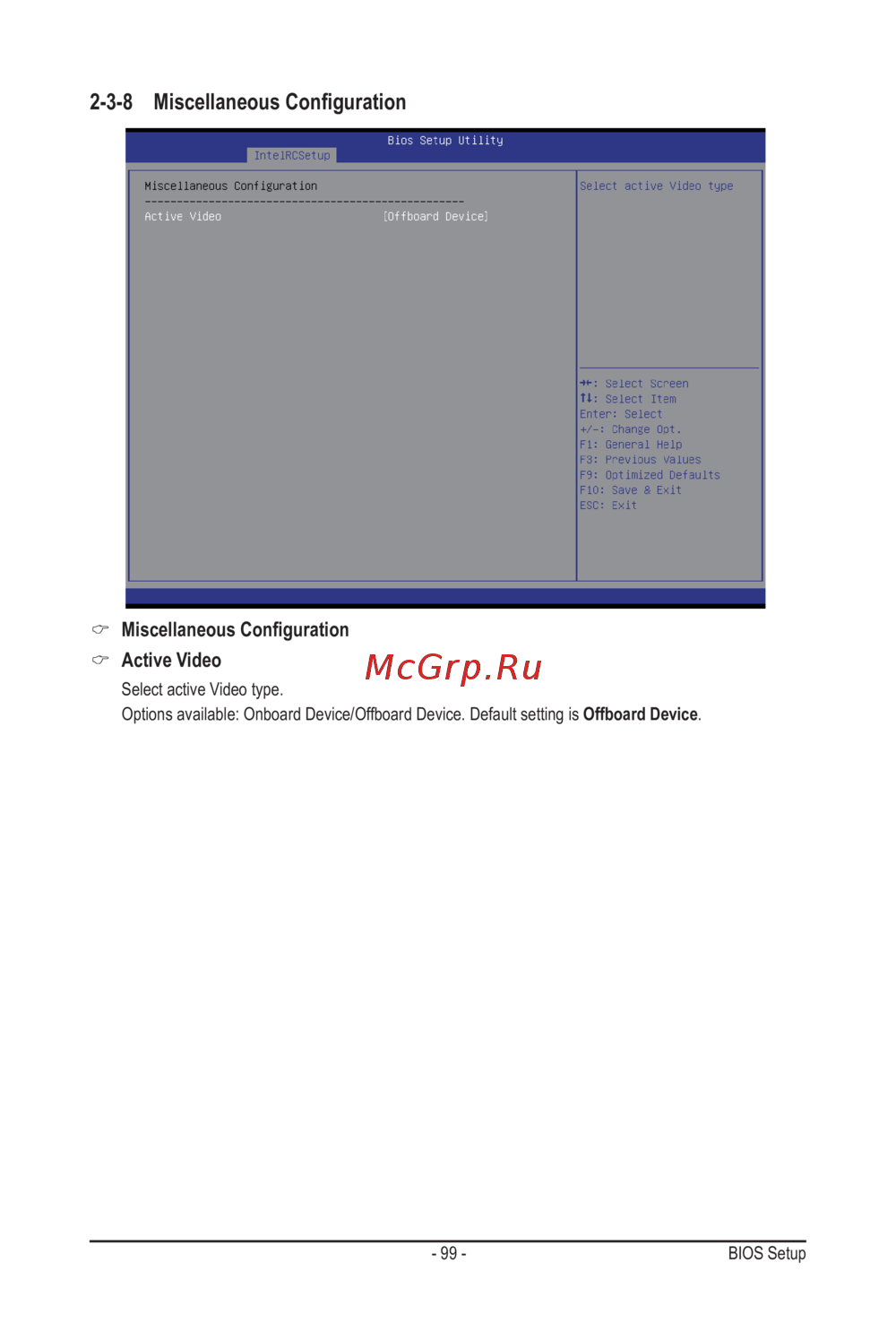

- 99 - BIOS Setup

2-3-8 Miscellaneous Conguration

Miscellaneous Conguration

Active Video

Select active Video type.

Options available: Onboard Device/Offboard Device. Default setting is Offboard Device.
