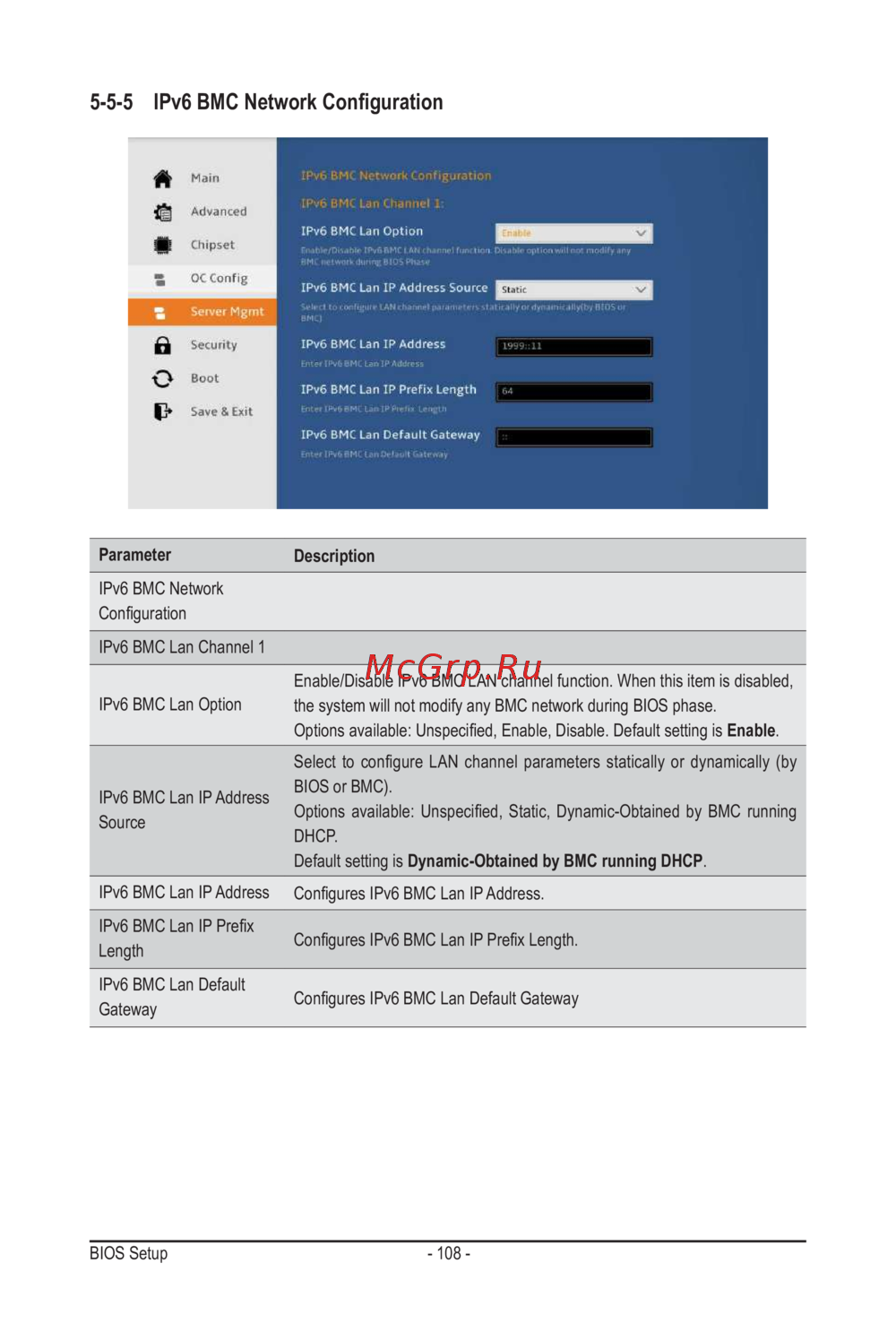

BIOS Setup - 108 -
5-5-5 IPv6 BMC Network Conguration
Parameter
Description
IPv6 BMC Network
Conguration
IPv6 BMC Lan Channel 1
IPv6 BMC Lan Option
Enable/Disable IPv6 BMC LAN channel function. When this item is disabled,
the system will not modify any BMC network during BIOS phase.
Options available: Unspecied, Enable, Disable. Default setting is Enable.
IPv6 BMC Lan IP Address
Source
Select to configure LAN channel parameters statically or dynamically (by
BIOS or BMC).
Options available: Unspecied, Static, Dynamic-Obtained by BMC running
DHCP.
Default setting is Dynamic-Obtained by BMC running DHCP.
IPv6 BMC Lan IP Address
Congures IPv6 BMC Lan IP Address.
IPv6 BMC Lan IP Prex
Length
Congures IPv6 BMC Lan IP Prex Length.
IPv6 BMC Lan Default
Gateway
Congures IPv6 BMC Lan Default Gateway
