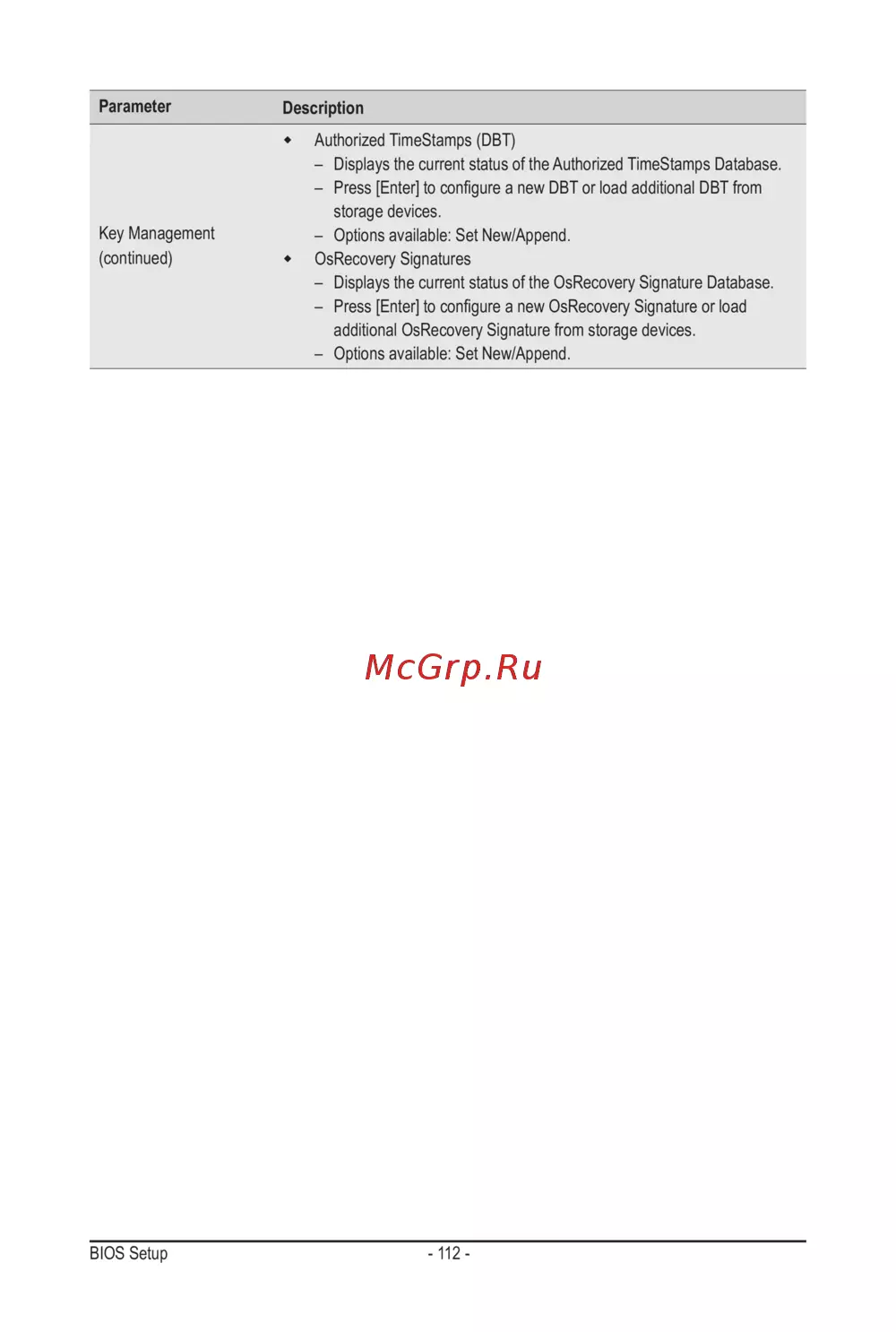

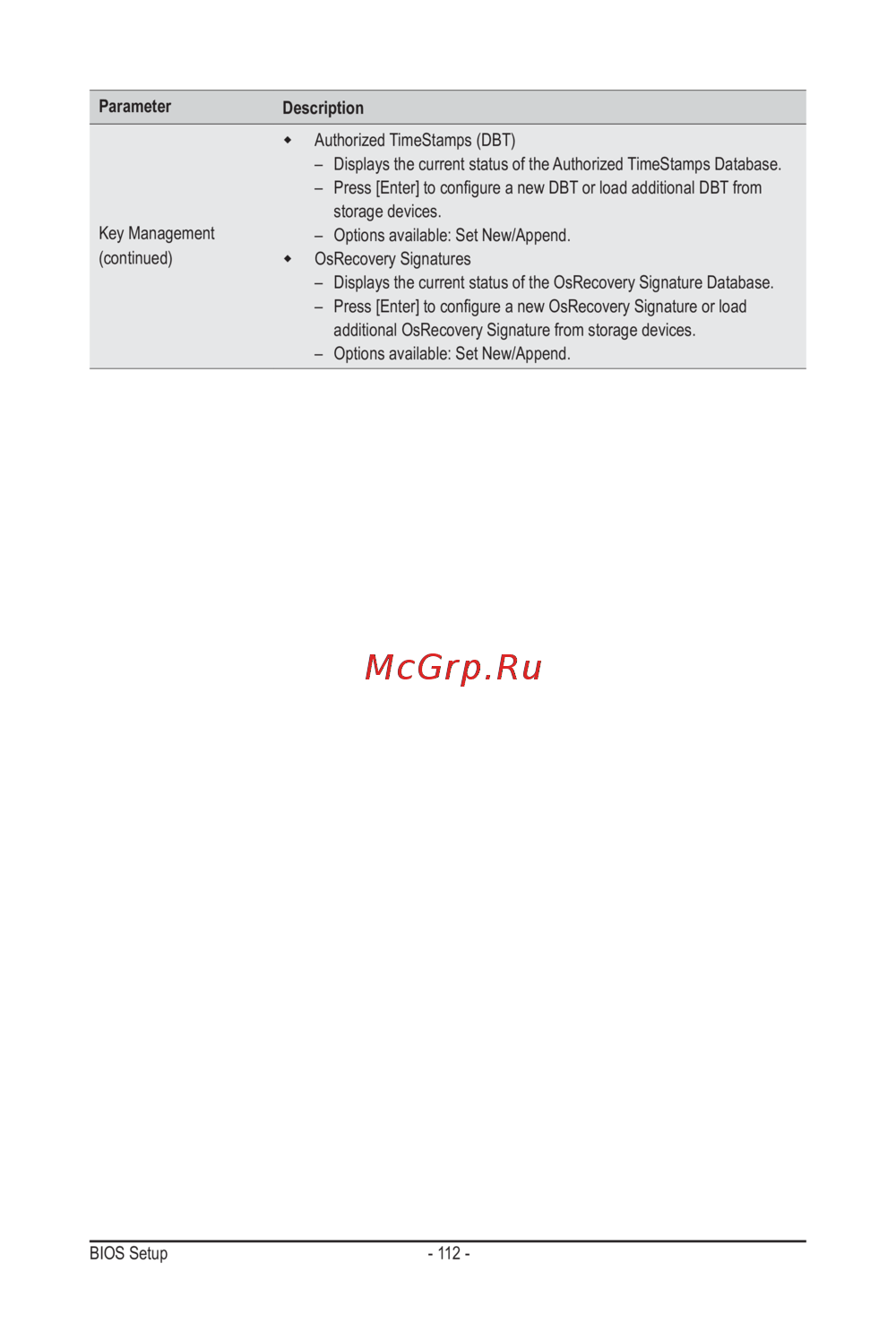

BIOS Setup - 112 -

Parameter

Description

Key Management

(continued)



Authorized TimeStamps (DBT)

– Displays the current status of the Authorized TimeStamps Database.

– Press [Enter] to congure a new DBT or load additional DBT from

storage devices.

– Options available: Set New/Append.



OsRecovery Signatures

– Displays the current status of the OsRecovery Signature Database.

– Press [Enter] to congure a new OsRecovery Signature or load

additional OsRecovery Signature from storage devices.

– Options available: Set New/Append.
