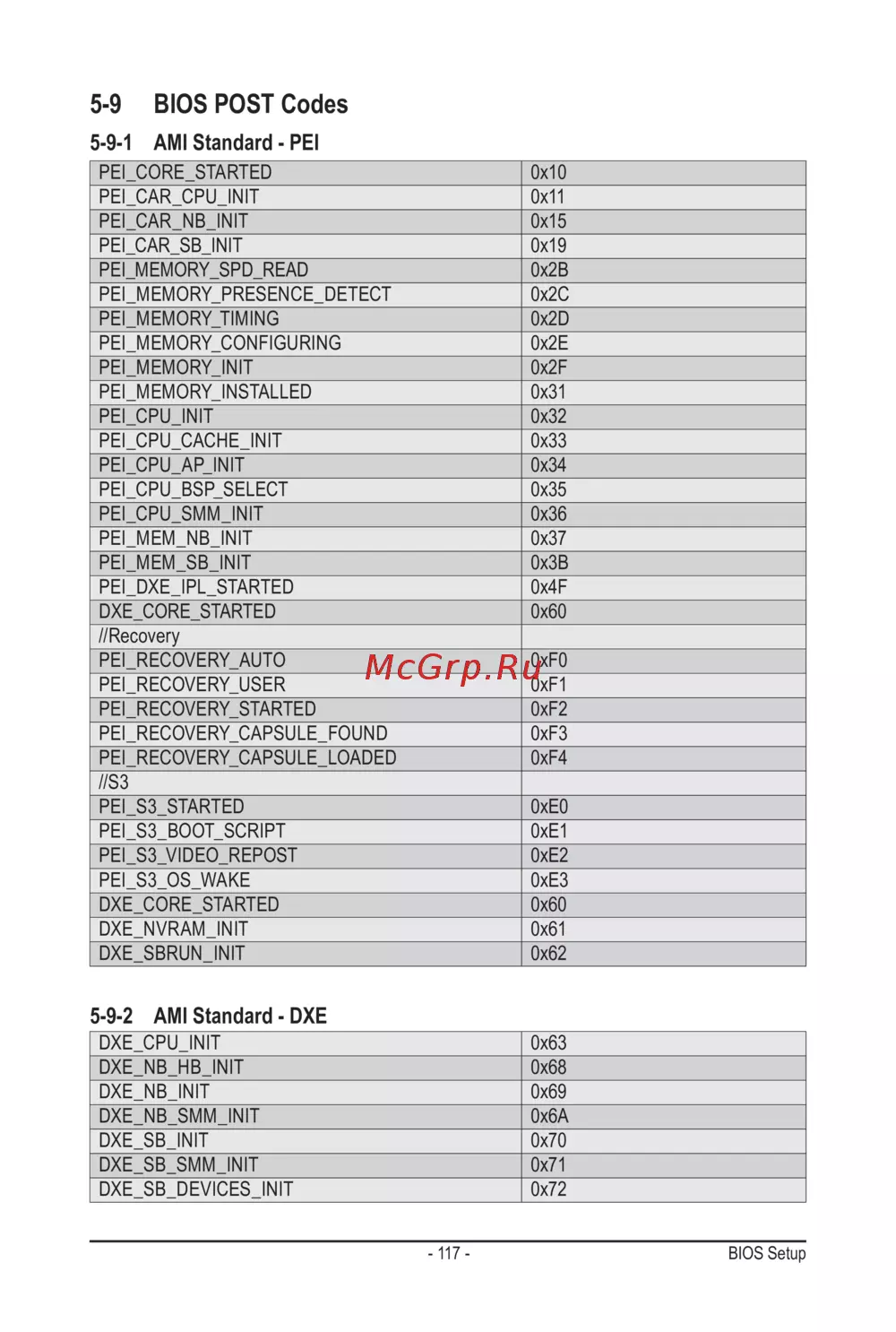

- 117 - BIOS Setup
5-9 BIOS POST Codes
5-9-1 AMI Standard - PEI
PEI_CORE_STARTED 0x10
PEI_CAR_CPU_INIT 0x11
PEI_CAR_NB_INIT 0x15
PEI_CAR_SB_INIT 0x19
PEI_MEMORY_SPD_READ 0x2B
PEI_MEMORY_PRESENCE_DETECT 0x2C
PEI_MEMORY_TIMING 0x2D
PEI_MEMORY_CONFIGURING 0x2E
PEI_MEMORY_INIT 0x2F
PEI_MEMORY_INSTALLED 0x31
PEI_CPU_INIT 0x32
PEI_CPU_CACHE_INIT 0x33
PEI_CPU_AP_INIT 0x34
PEI_CPU_BSP_SELECT 0x35
PEI_CPU_SMM_INIT 0x36
PEI_MEM_NB_INIT 0x37
PEI_MEM_SB_INIT 0x3B
PEI_DXE_IPL_STARTED 0x4F
DXE_CORE_STARTED 0x60
//Recovery
PEI_RECOVERY_AUTO 0xF0
PEI_RECOVERY_USER 0xF1
PEI_RECOVERY_STARTED 0xF2
PEI_RECOVERY_CAPSULE_FOUND 0xF3
PEI_RECOVERY_CAPSULE_LOADED 0xF4
//S3
PEI_S3_STARTED 0xE0
PEI_S3_BOOT_SCRIPT 0xE1
PEI_S3_VIDEO_REPOST 0xE2
PEI_S3_OS_WAKE 0xE3
DXE_CORE_STARTED 0x60
DXE_NVRAM_INIT 0x61
DXE_SBRUN_INIT 0x62
5-9-2 AMI Standard - DXE
DXE_CPU_INIT 0x63
DXE_NB_HB_INIT 0x68
DXE_NB_INIT 0x69
DXE_NB_SMM_INIT 0x6A
DXE_SB_INIT 0x70
DXE_SB_SMM_INIT 0x71
DXE_SB_DEVICES_INIT 0x72
