- 119 - BIOS Setup

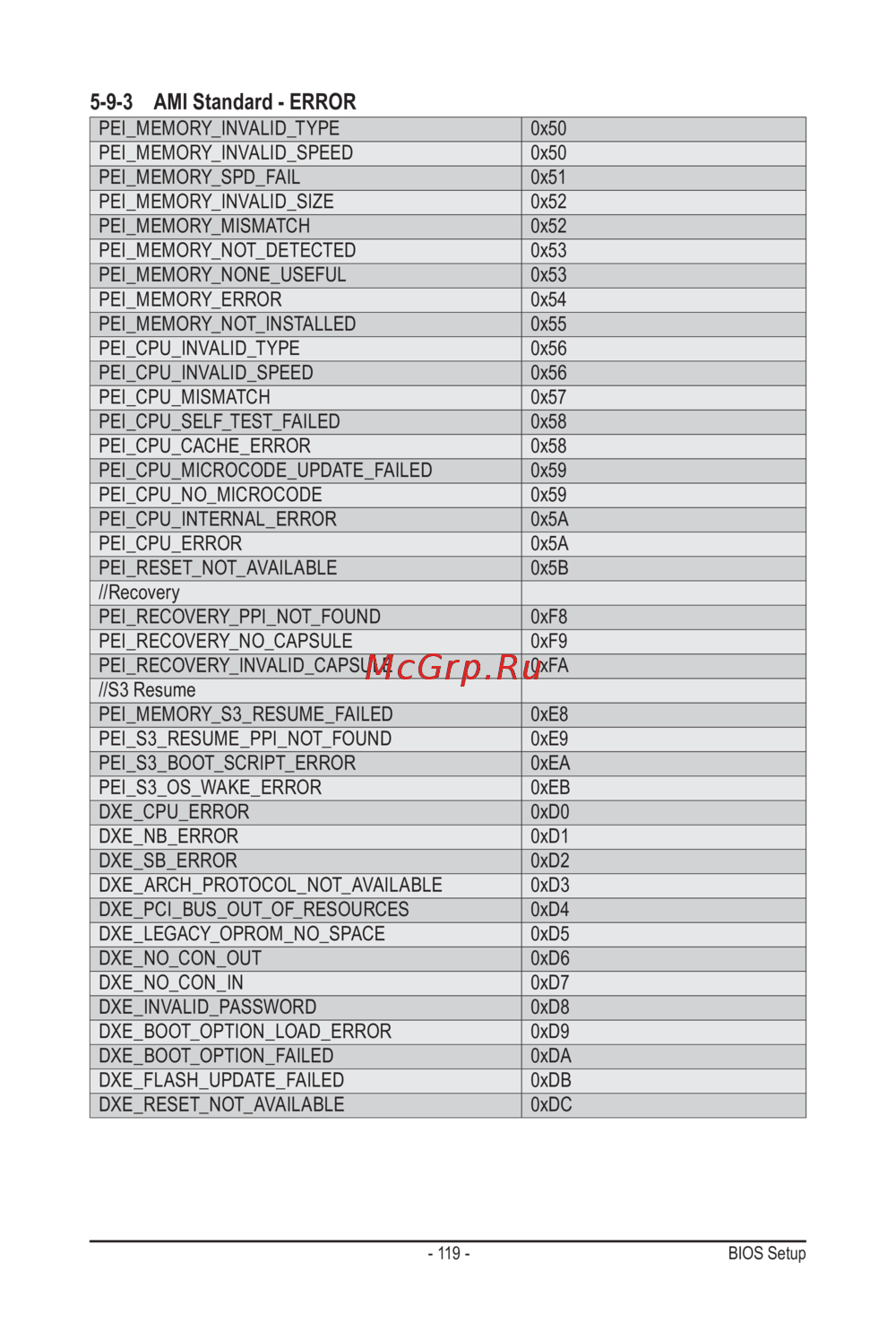

5-9-3 AMI Standard - ERROR
PEI_MEMORY_INVALID_TYPE 0x50
PEI_MEMORY_INVALID_SPEED 0x50
PEI_MEMORY_SPD_FAIL 0x51
PEI_MEMORY_INVALID_SIZE 0x52
PEI_MEMORY_MISMATCH 0x52
PEI_MEMORY_NOT_DETECTED 0x53
PEI_MEMORY_NONE_USEFUL 0x53
PEI_MEMORY_ERROR 0x54
PEI_MEMORY_NOT_INSTALLED 0x55
PEI_CPU_INVALID_TYPE 0x56
PEI_CPU_INVALID_SPEED 0x56
PEI_CPU_MISMATCH 0x57
PEI_CPU_SELF_TEST_FAILED 0x58
PEI_CPU_CACHE_ERROR 0x58
PEI_CPU_MICROCODE_UPDATE_FAILED 0x59
PEI_CPU_NO_MICROCODE 0x59
PEI_CPU_INTERNAL_ERROR 0x5A
PEI_CPU_ERROR 0x5A
PEI_RESET_NOT_AVAILABLE 0x5B
//Recovery
PEI_RECOVERY_PPI_NOT_FOUND 0xF8
PEI_RECOVERY_NO_CAPSULE 0xF9
PEI_RECOVERY_INVALID_CAPSULE 0xFA
//S3 Resume
PEI_MEMORY_S3_RESUME_FAILED 0xE8
PEI_S3_RESUME_PPI_NOT_FOUND 0xE9
PEI_S3_BOOT_SCRIPT_ERROR 0xEA
PEI_S3_OS_WAKE_ERROR 0xEB
DXE_CPU_ERROR 0xD0
DXE_NB_ERROR 0xD1
DXE_SB_ERROR 0xD2
DXE_ARCH_PROTOCOL_NOT_AVAILABLE 0xD3
DXE_PCI_BUS_OUT_OF_RESOURCES 0xD4
DXE_LEGACY_OPROM_NO_SPACE 0xD5
DXE_NO_CON_OUT 0xD6
DXE_NO_CON_IN 0xD7
DXE_INVALID_PASSWORD 0xD8
DXE_BOOT_OPTION_LOAD_ERROR 0xD9
DXE_BOOT_OPTION_FAILED 0xDA
DXE_FLASH_UPDATE_FAILED 0xDB
DXE_RESET_NOT_AVAILABLE 0xDC
