Инструкция Страница: 43

Gigabyte R161-R12 (rev. 100) [43/123] 2 3 smart settings

- 43 - BIOS Setup

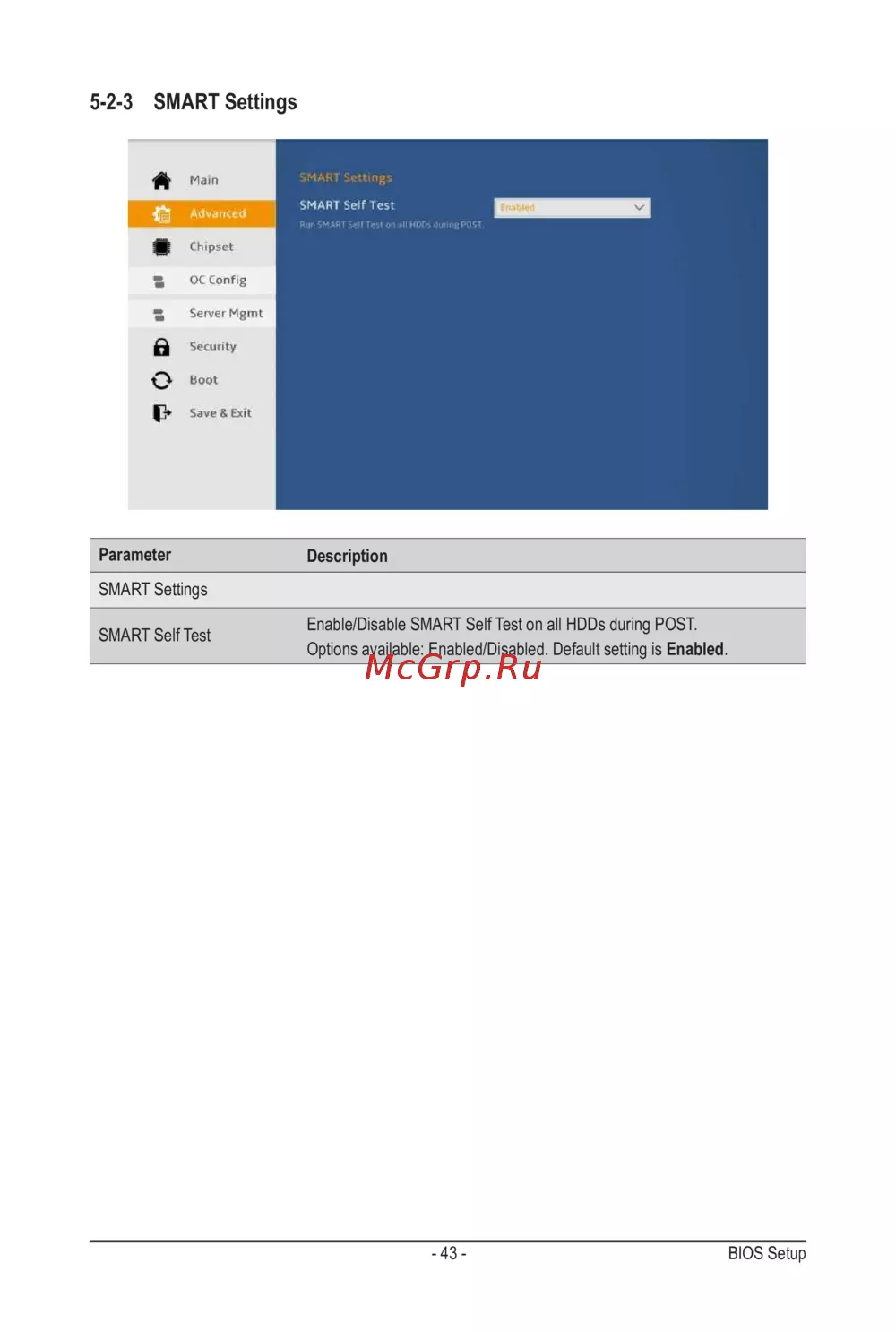

5-2-3 SMART Settings

Parameter

Description

SMART Settings

SMART Self Test

Enable/Disable SMART Self Test on all HDDs during POST.

Options available: Enabled/Disabled. Default setting is Enabled.
