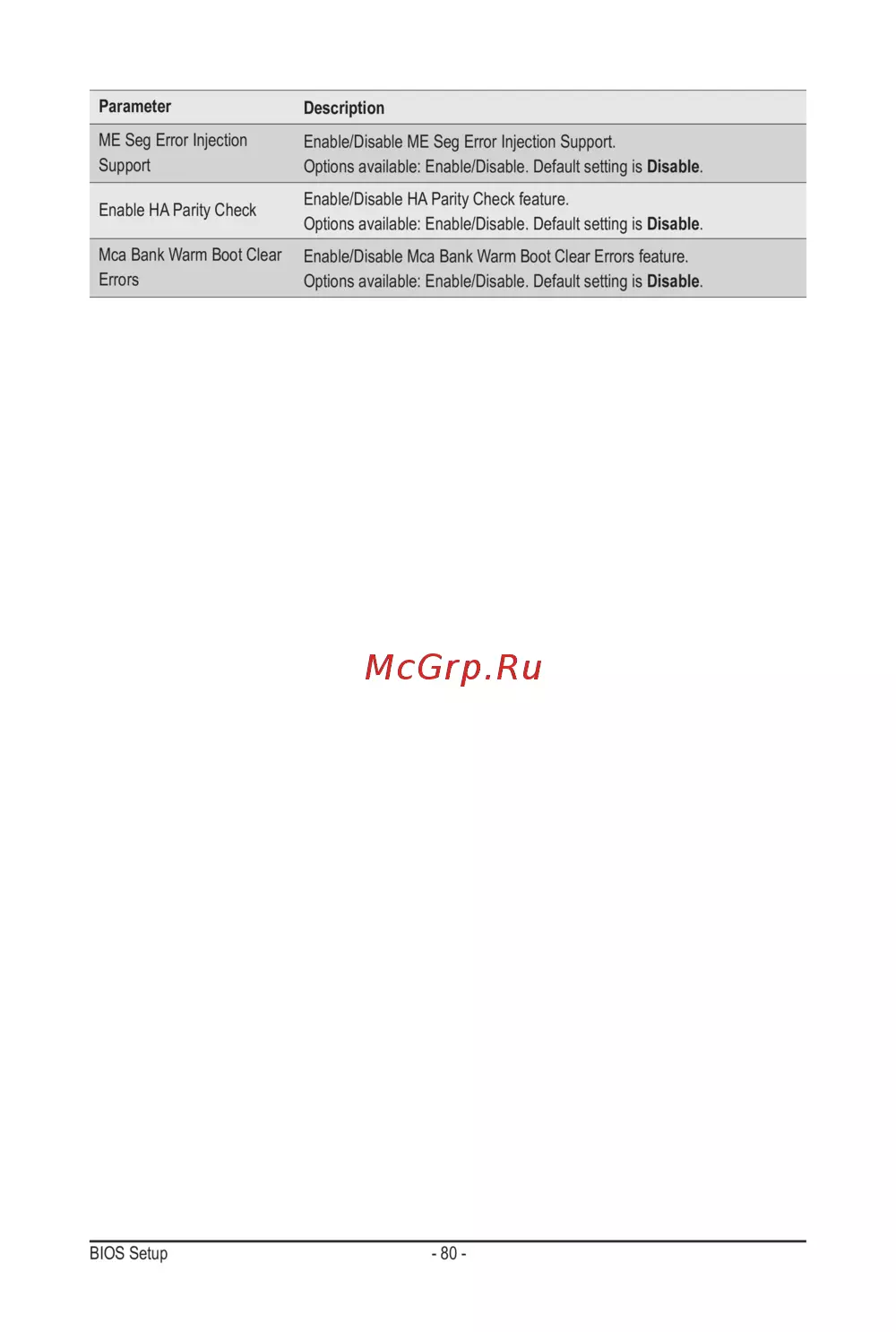

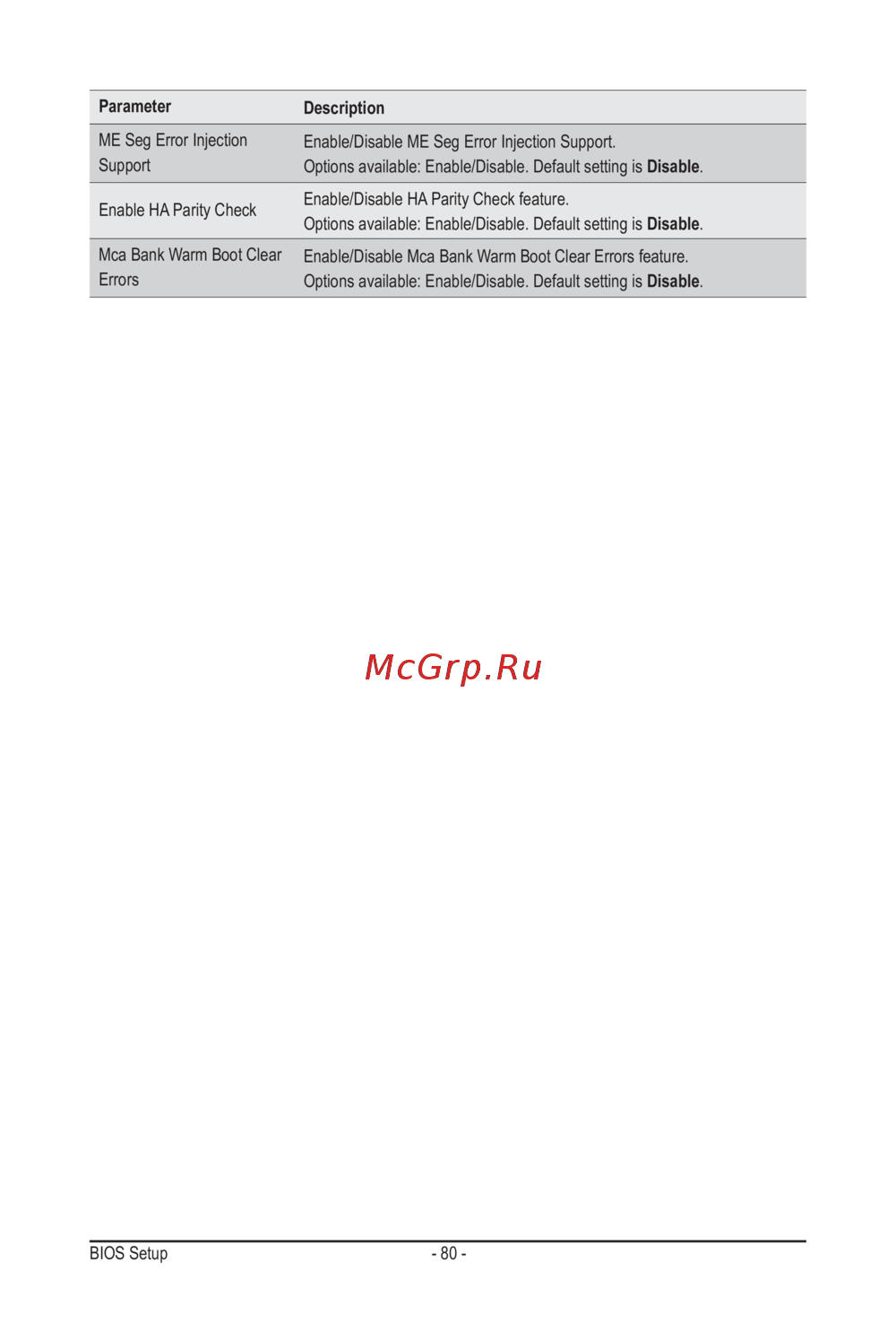

BIOS Setup - 80 -
Parameter
Description
ME Seg Error Injection
Support
Enable/Disable ME Seg Error Injection Support.
Options available: Enable/Disable. Default setting is Disable.
Enable HA Parity Check
Enable/Disable HA Parity Check feature.
Options available: Enable/Disable. Default setting is Disable.
Mca Bank Warm Boot Clear
Errors
Enable/Disable Mca Bank Warm Boot Clear Errors feature.
Options available: Enable/Disable. Default setting is Disable.
