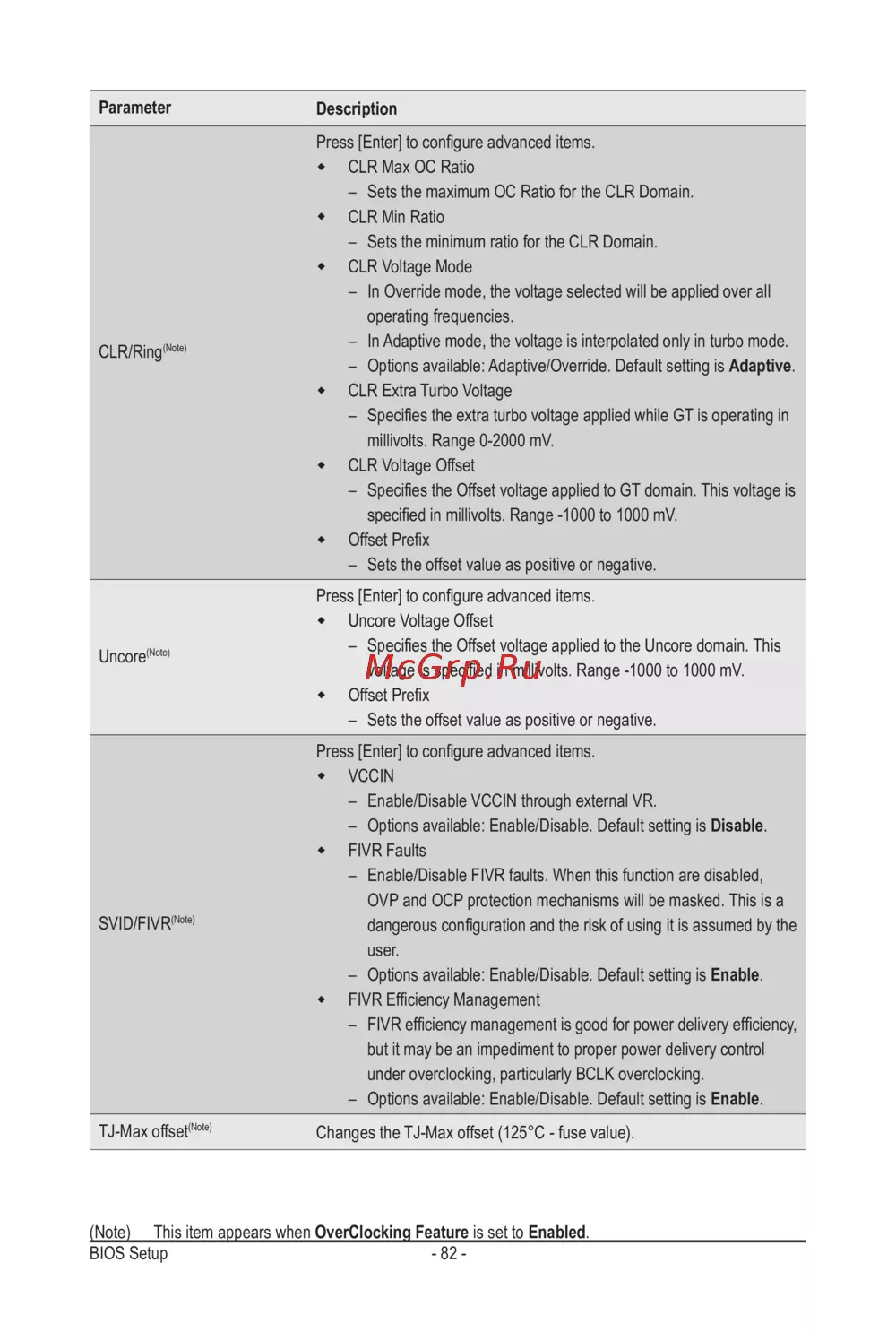

BIOS Setup - 82 -
Parameter
Description
CLR/Ring
(Note)
Press [Enter] to congure advanced items.
CLR Max OC Ratio
– Sets the maximum OC Ratio for the CLR Domain.
CLR Min Ratio
– Sets the minimum ratio for the CLR Domain.
CLR Voltage Mode
– In Override mode, the voltage selected will be applied over all
operating frequencies.
– In Adaptive mode, the voltage is interpolated only in turbo mode.
– Options available: Adaptive/Override. Default setting is Adaptive.
CLR Extra Turbo Voltage
– Species the extra turbo voltage applied while GT is operating in
millivolts. Range 0-2000 mV.
CLR Voltage Offset
– Species the Offset voltage applied to GT domain. This voltage is
specied in millivolts. Range -1000 to 1000 mV.
Offset Prex
– Sets the offset value as positive or negative.
Uncore
(Note)
Press [Enter] to congure advanced items.
Uncore Voltage Offset
– Species the Offset voltage applied to the Uncore domain. This
voltage is specied in millivolts. Range -1000 to 1000 mV.
Offset Prex
– Sets the offset value as positive or negative.
SVID/FIVR
(Note)
Press [Enter] to congure advanced items.
VCCIN
– Enable/Disable VCCIN through external VR.
– Options available: Enable/Disable. Default setting is Disable.
FIVR Faults
– Enable/Disable FIVR faults. When this function are disabled,
OVP and OCP protection mechanisms will be masked. This is a
dangerous conguration and the risk of using it is assumed by the
user.
– Options available: Enable/Disable. Default setting is Enable.
FIVR Efciency Management
– FIVR efciency management is good for power delivery efciency,
but it may be an impediment to proper power delivery control
under overclocking, particularly BCLK overclocking.
– Options available: Enable/Disable. Default setting is Enable.
TJ-Max offset
(Note)
Changes the TJ-Max offset (125°C - fuse value).
(Note) This item appears when OverClocking Feature is set to Enabled.
