BIOS Setup - 86 -

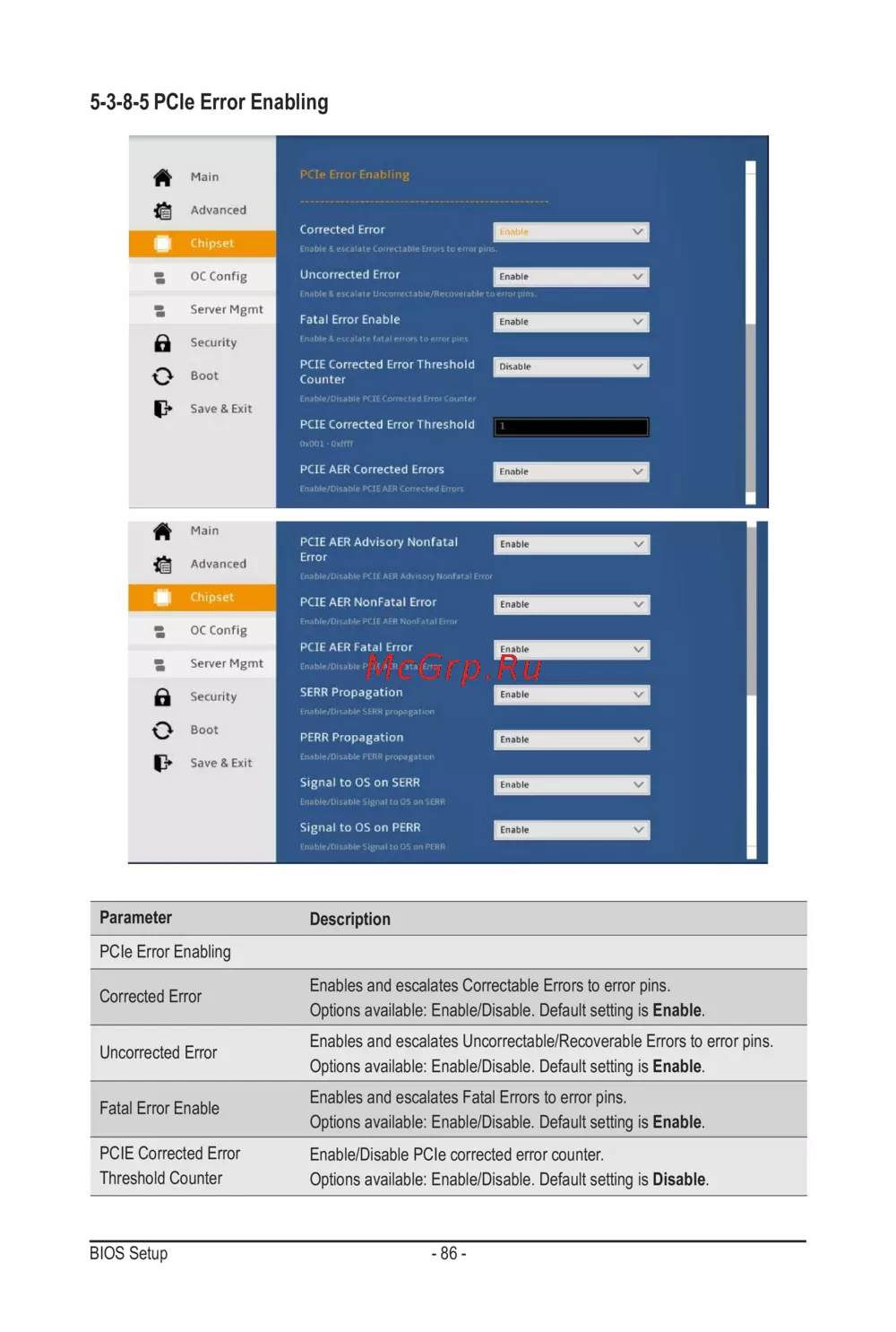

5-3-8-5 PCIe Error Enabling

Parameter

Description

PCIe Error Enabling

Corrected Error

Enables and escalates Correctable Errors to error pins.

Options available: Enable/Disable. Default setting is Enable.

Uncorrected Error

Enables and escalates Uncorrectable/Recoverable Errors to error pins.

Options available: Enable/Disable. Default setting is Enable.

Fatal Error Enable

Enables and escalates Fatal Errors to error pins.

Options available: Enable/Disable. Default setting is Enable.

PCIE Corrected Error

Threshold Counter

Enable/Disable PCIe corrected error counter.

Options available: Enable/Disable. Default setting is Disable.
