Gigabyte R161-R12 (rev. 100) [92/123] 4 2 memory overclocking

BIOS Setup - 92 -

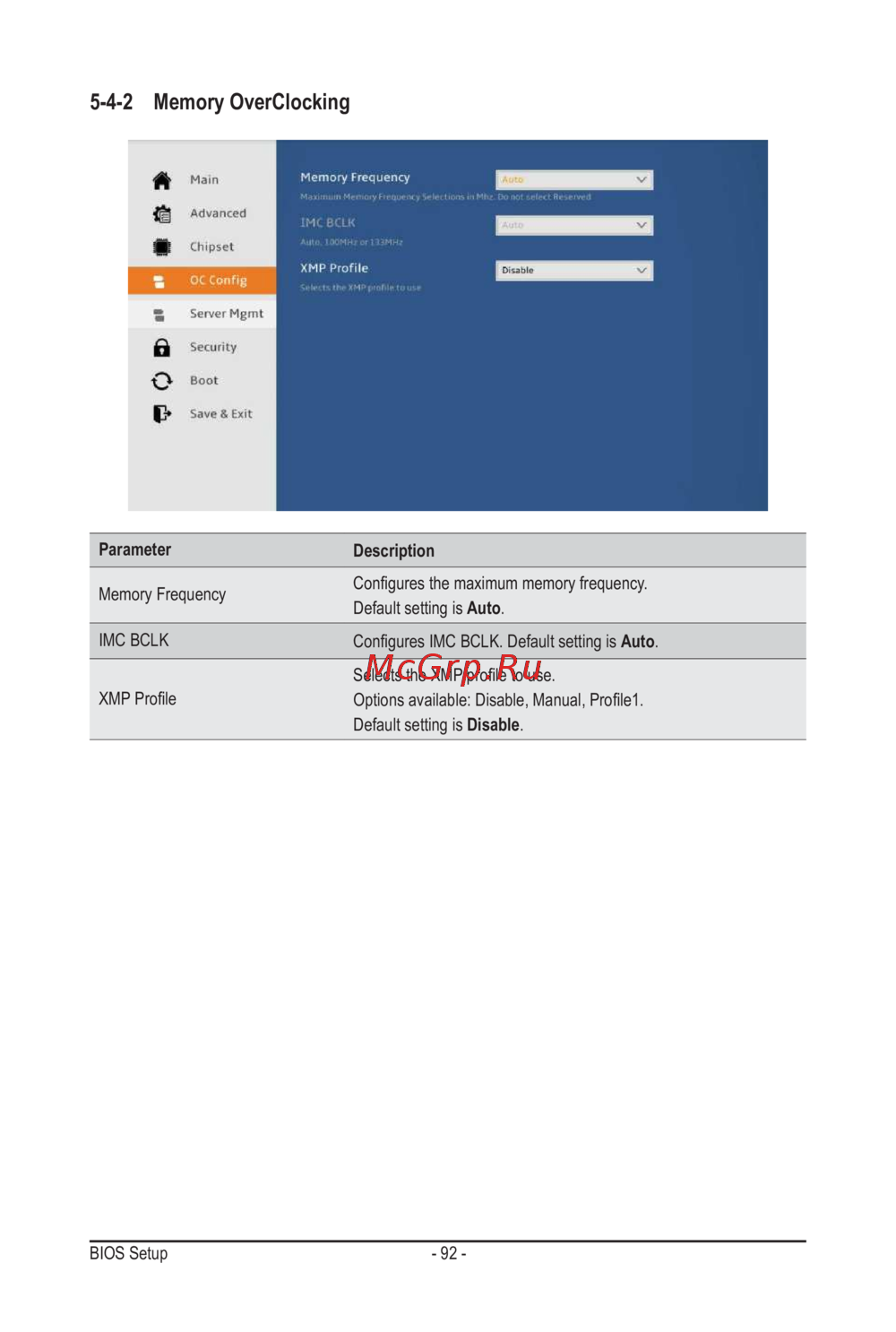

5-4-2 Memory OverClocking

Parameter

Description

Memory Frequency

Congures the maximum memory frequency.

Default setting is Auto.

IMC BCLK

Congures IMC BCLK. Default setting is Auto.

XMP Prole

Selects the XMP prole to use.

Options available: Disable, Manual, Prole1.

Default setting is Disable.
