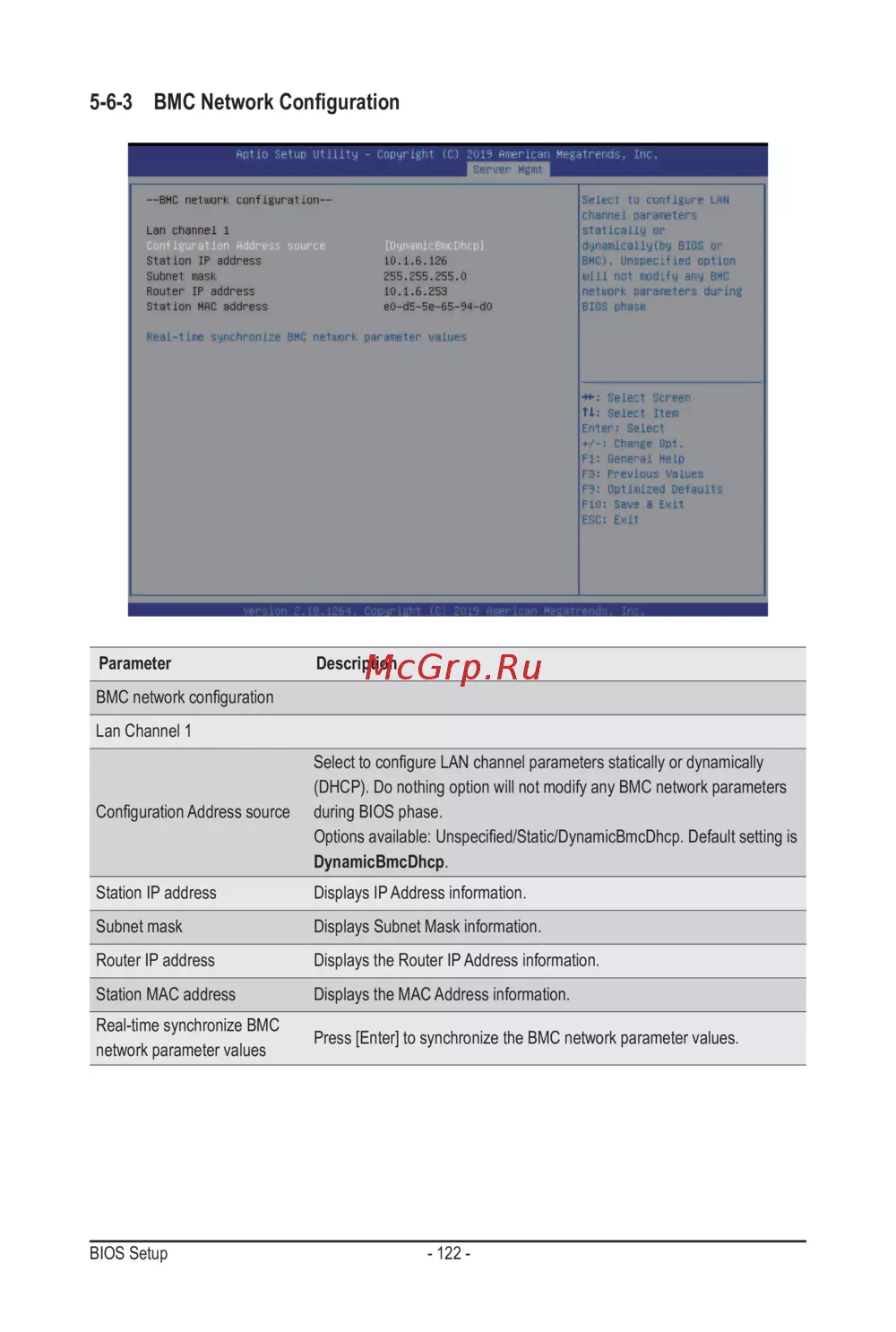

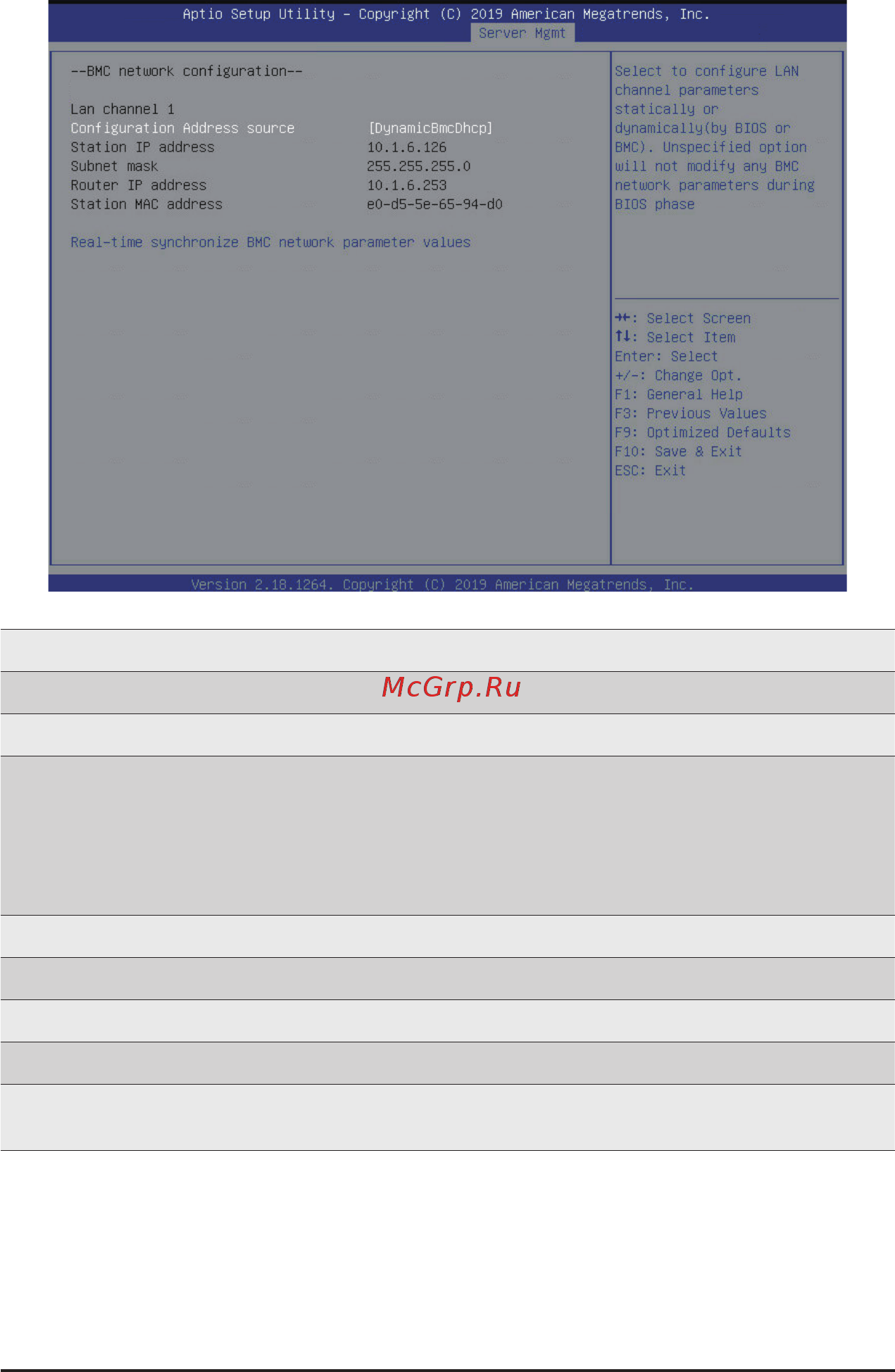

5-6-3 BMC Network Conguration

Parameter Description

BMC network conguration

Lan Channel 1

Conguration Address source

Select to congure LAN channel parameters statically or dynamically

(DHCP). Do nothing option will not modify any BMC network parameters

during BIOS phase.

Options available: Unspecied/Static/DynamicBmcDhcp. Default setting is

DynamicBmcDhcp.

Station IP address Displays IP Address information.

Subnet mask Displays Subnet Mask information.

Router IP address Displays the Router IP Address information.

Station MAC address Displays the MAC Address information.

Real-time synchronize BMC

network parameter values

Press [Enter] to synchronize the BMC network parameter values.
