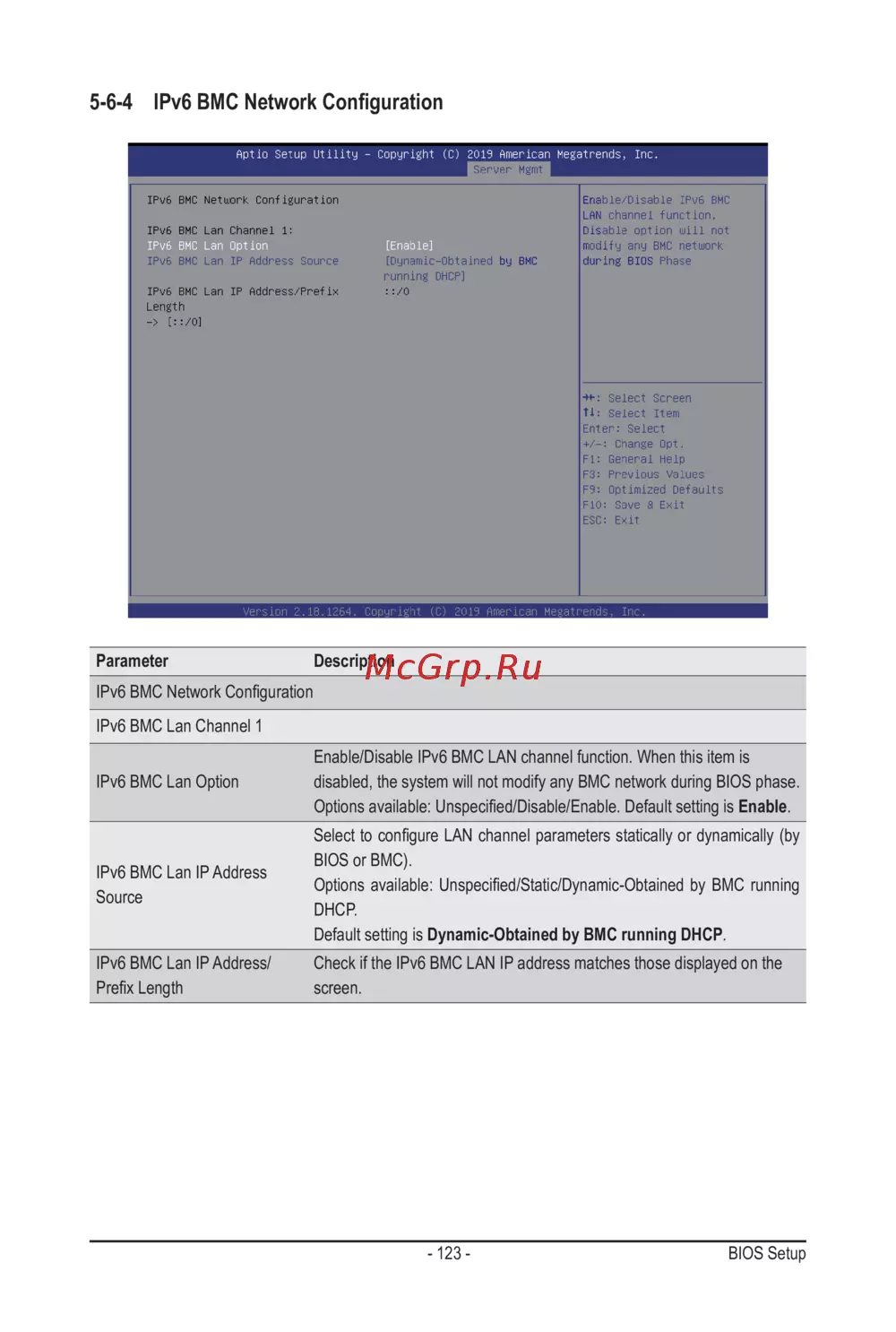

5-6-4 IPv6 BMC Network Conguration
Parameter Description

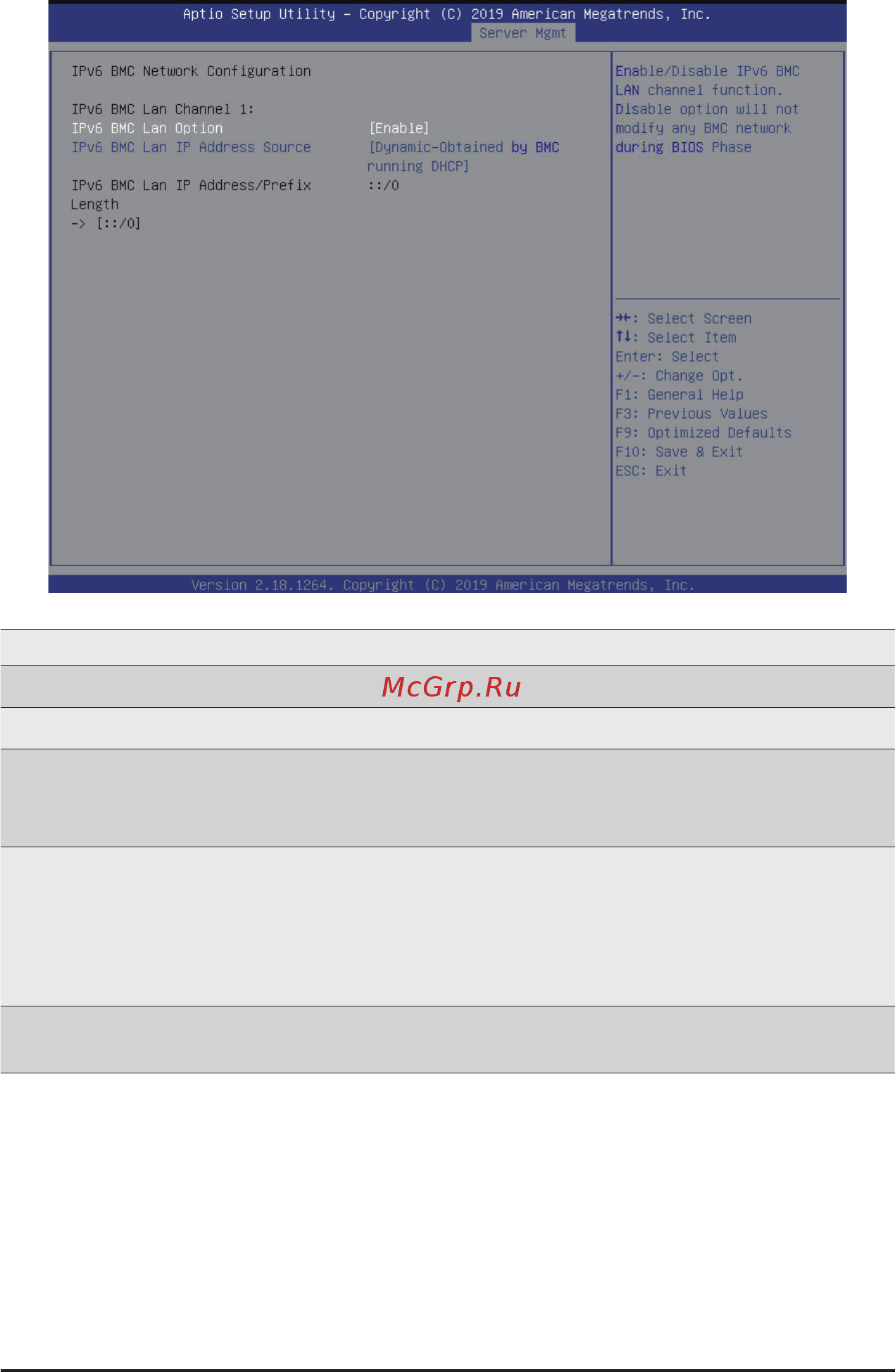

IPv6 BMC Network Conguration
IPv6 BMC Lan Channel 1
IPv6 BMC Lan Option
Enable/Disable IPv6 BMC LAN channel function. When this item is
disabled, the system will not modify any BMC network during BIOS phase.
Options available: Unspecied/Disable/Enable. Default setting is Enable.
IPv6 BMC Lan IP Address
Source
Select to congure LAN channel parameters statically or dynamically (by
BIOS or BMC).
Options available: Unspecied/Static/Dynamic-Obtained by BMC running
DHCP.
Default setting is Dynamic-Obtained by BMC running DHCP.
IPv6 BMC Lan IP Address/
Prex Length
Check if the IPv6 BMC LAN IP address matches those displayed on the
screen.
