- 127 - BIOS Setup

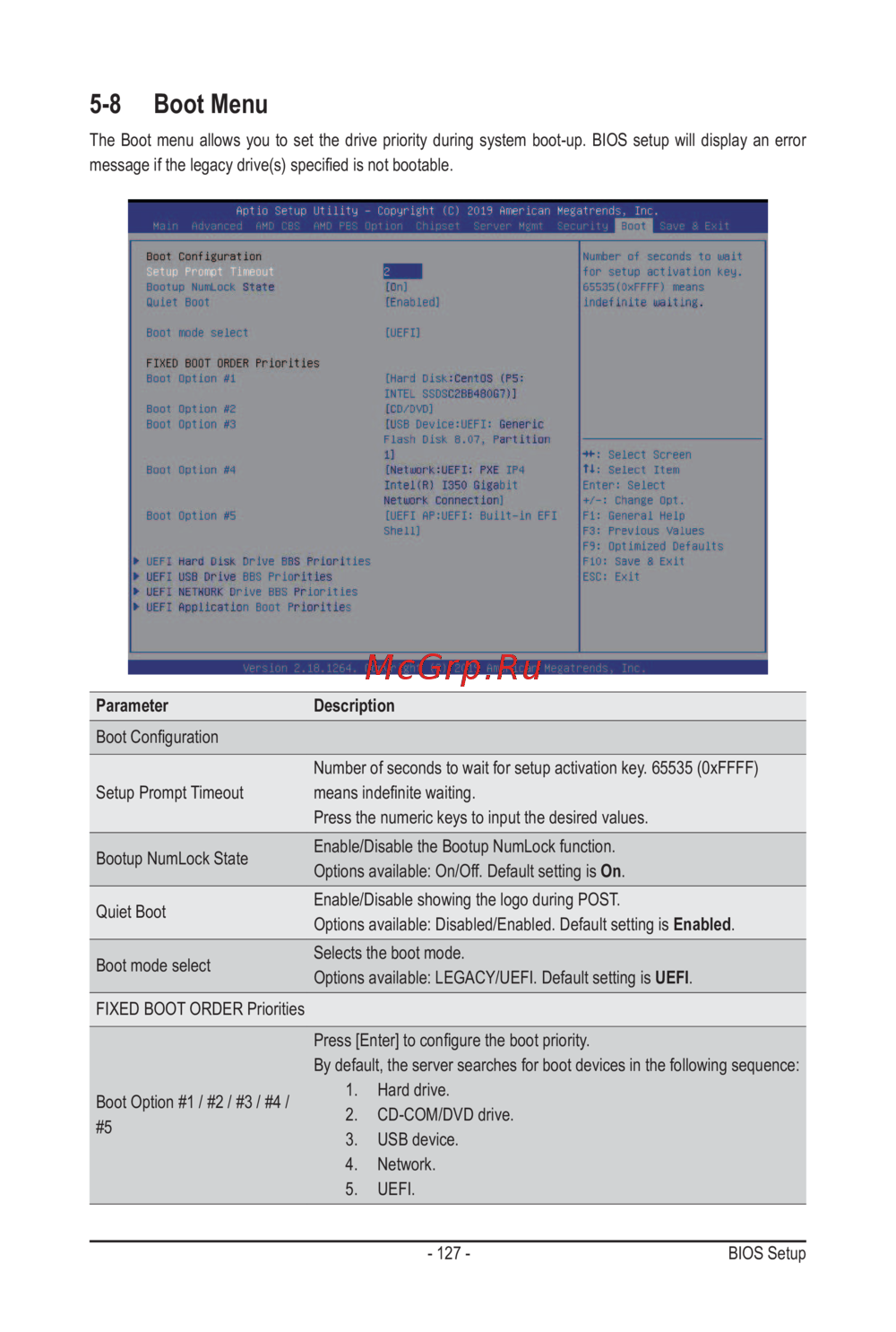

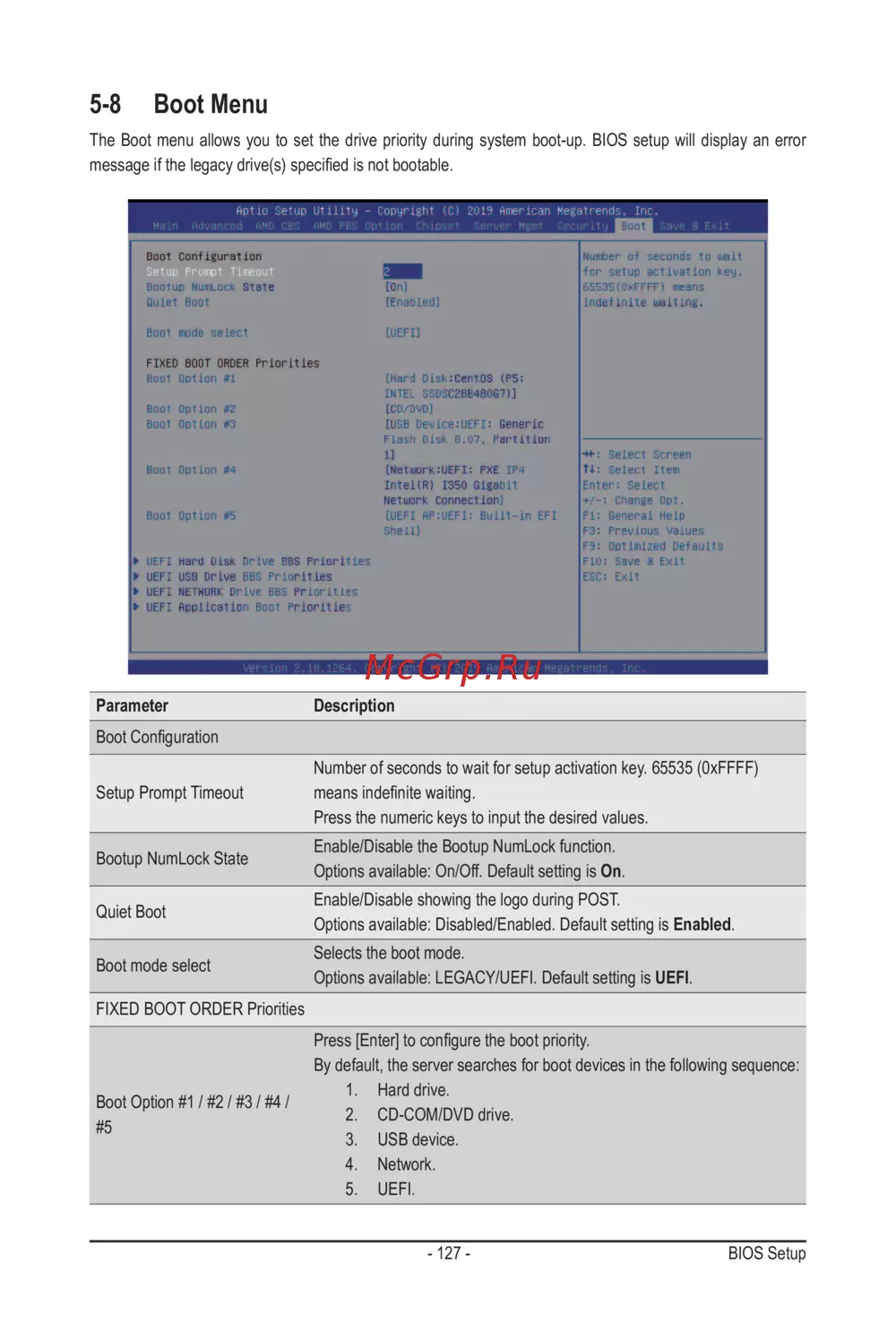

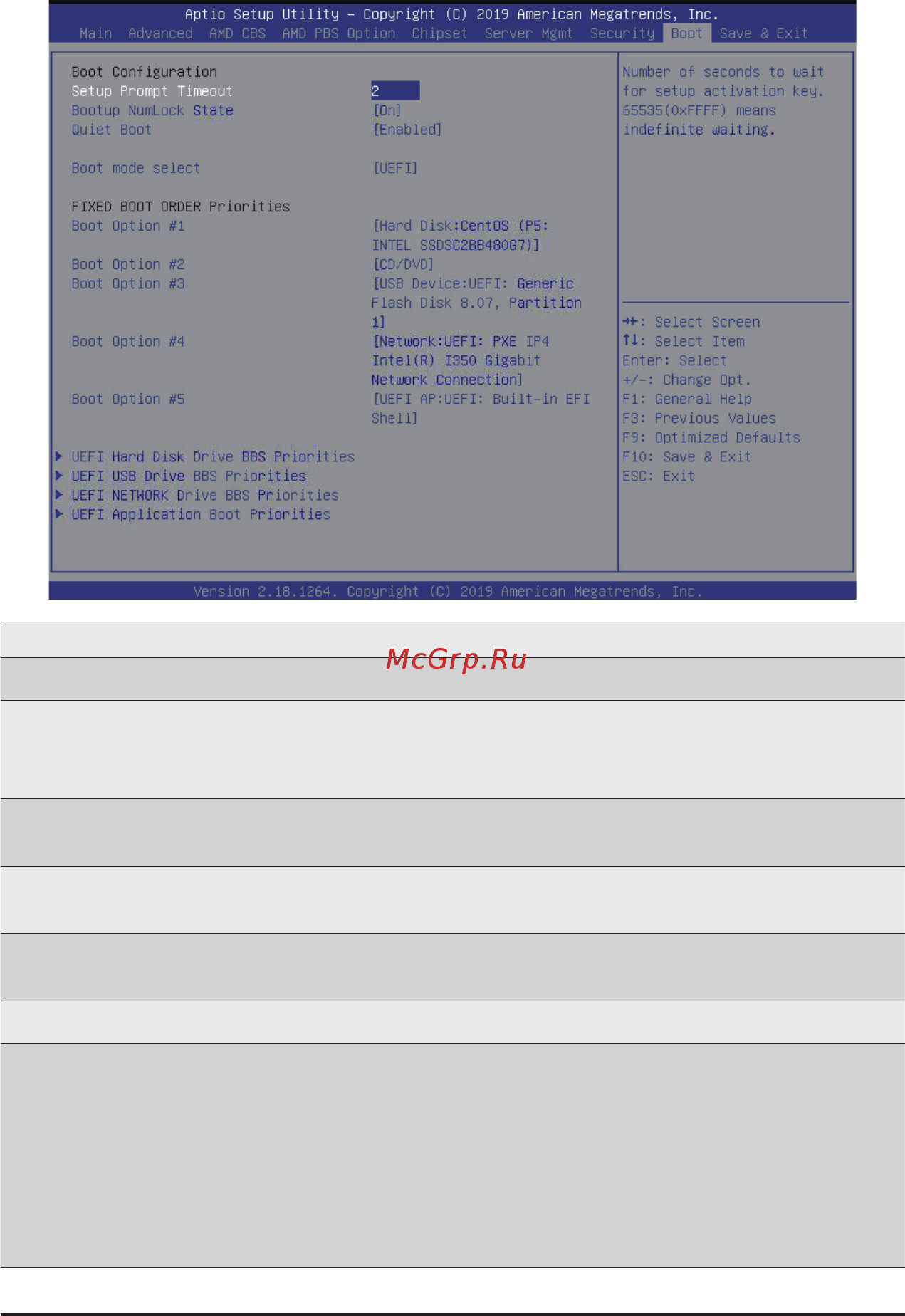

5-8 Boot Menu
The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error
message if the legacy drive(s) specied is not bootable.
Parameter Description
Boot Conguration
Setup Prompt Timeout
Number of seconds to wait for setup activation key. 65535 (0xFFFF)
means indenite waiting.
Press the numeric keys to input the desired values.
Bootup NumLock State
Enable/Disable the Bootup NumLock function.
Options available: On/Off. Default setting is On.
Quiet Boot
Enable/Disable showing the logo during POST.
Options available: Disabled/Enabled. Default setting is Enabled.
Boot mode select
Selects the boot mode.
Options available: LEGACY/UEFI. Default setting is UEFI.
FIXED BOOT ORDER Priorities
Boot Option #1 / #2 / #3 / #4 /
#5
Press [Enter] to congure the boot priority.
By default, the server searches for boot devices in the following sequence:
1. Hard drive.
2. CD-COM/DVD drive.
3. USB device.
4. Network.
5. UEFI.
