BIOS Setup - 130 -

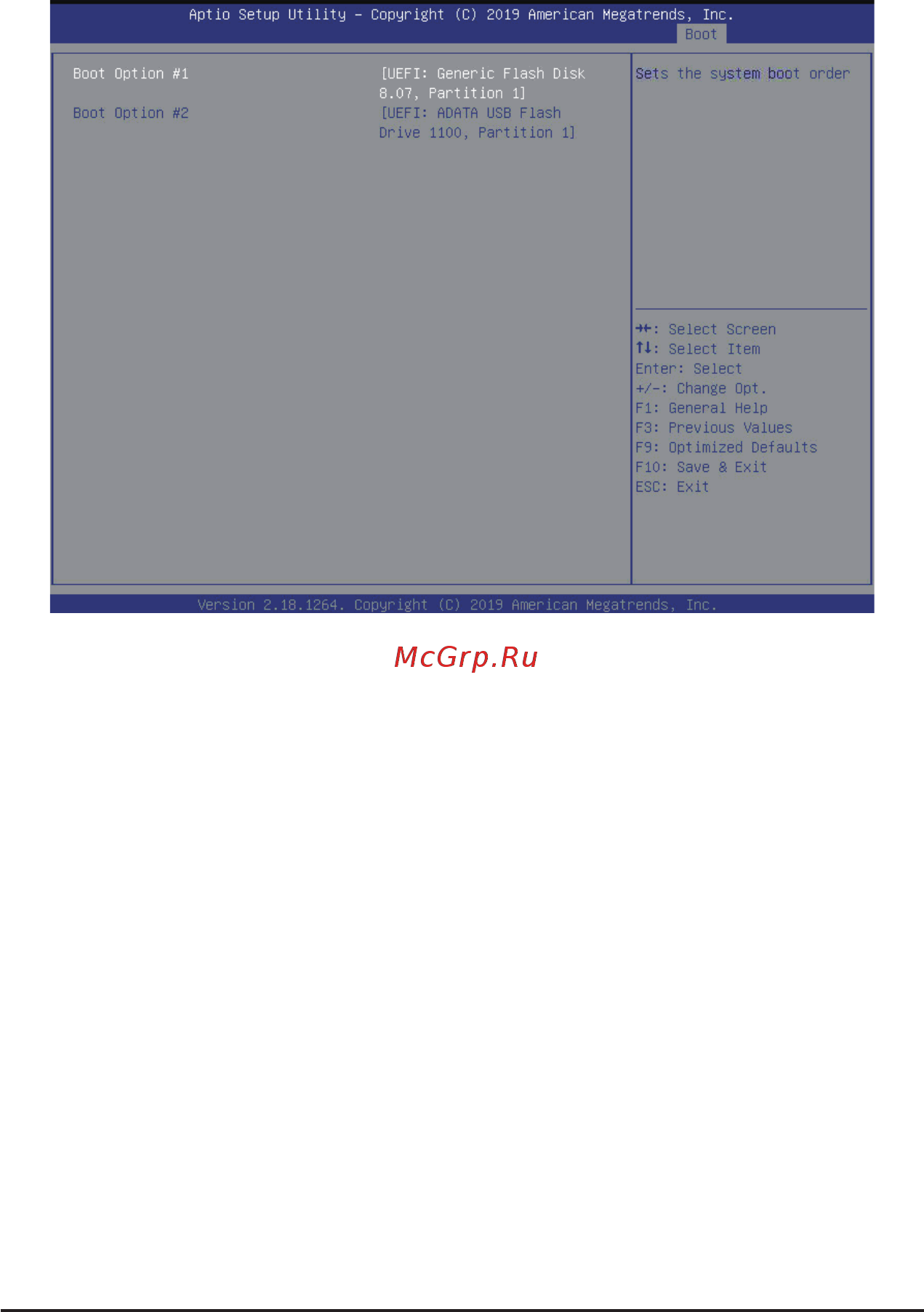

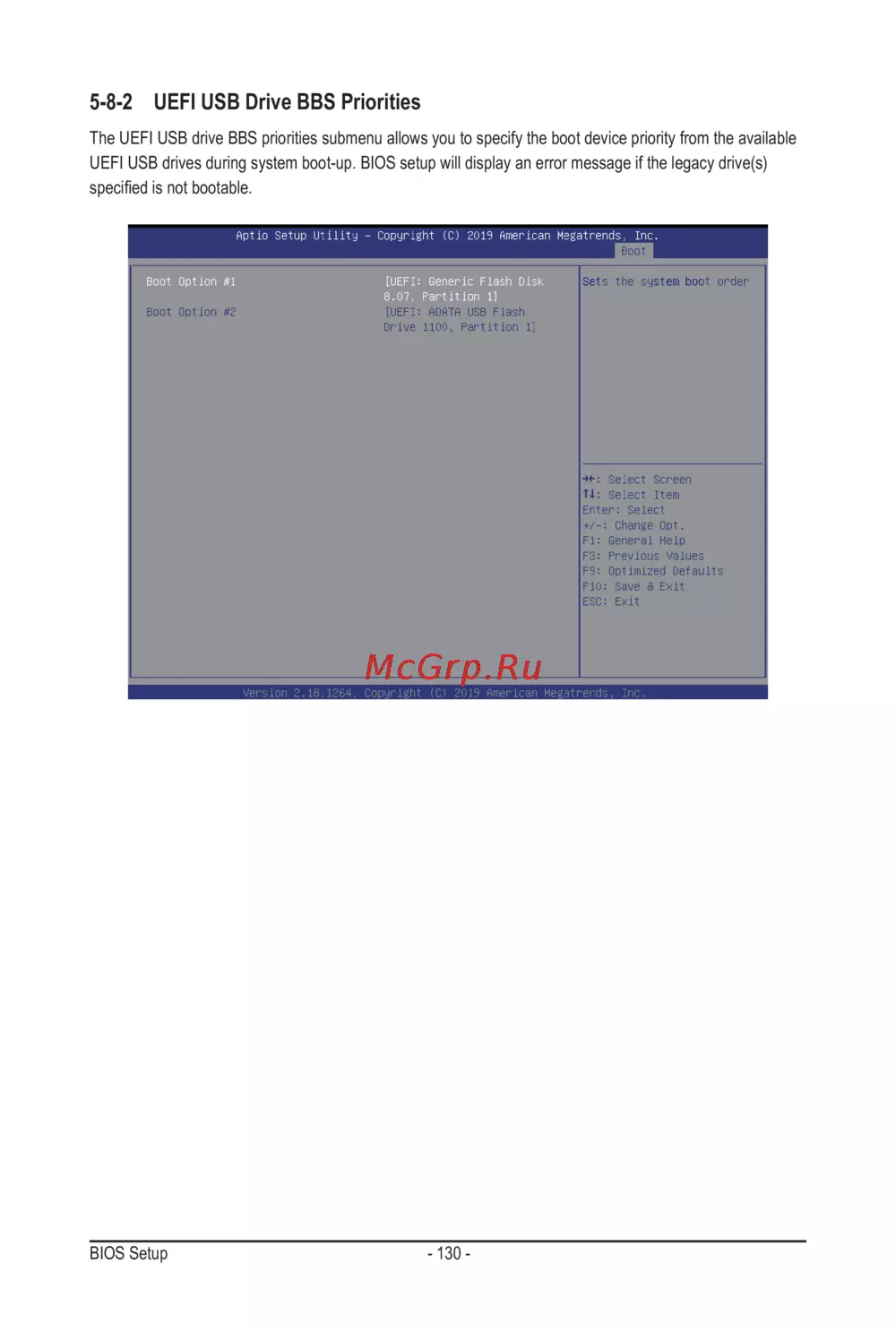

5-8-2 UEFI USB Drive BBS Priorities

The UEFI USB drive BBS priorities submenu allows you to specify the boot device priority from the available

UEFI USB drives during system boot-up. BIOS setup will display an error message if the legacy drive(s)

specied is not bootable.
