Gigabyte G292-Z42 (rev. 100) [132/155] 8 4 uefi application boot priorities

BIOS Setup - 132 -

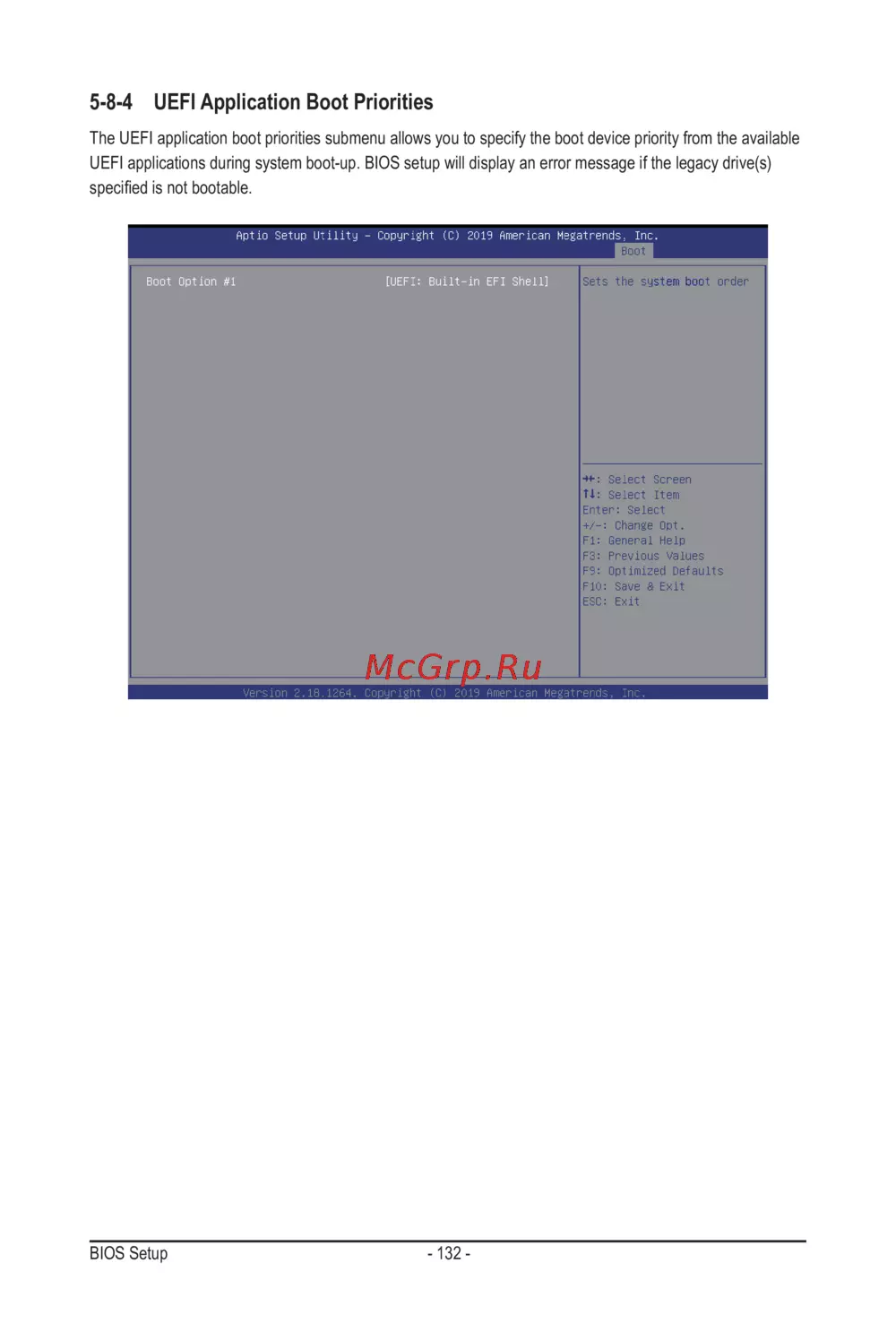

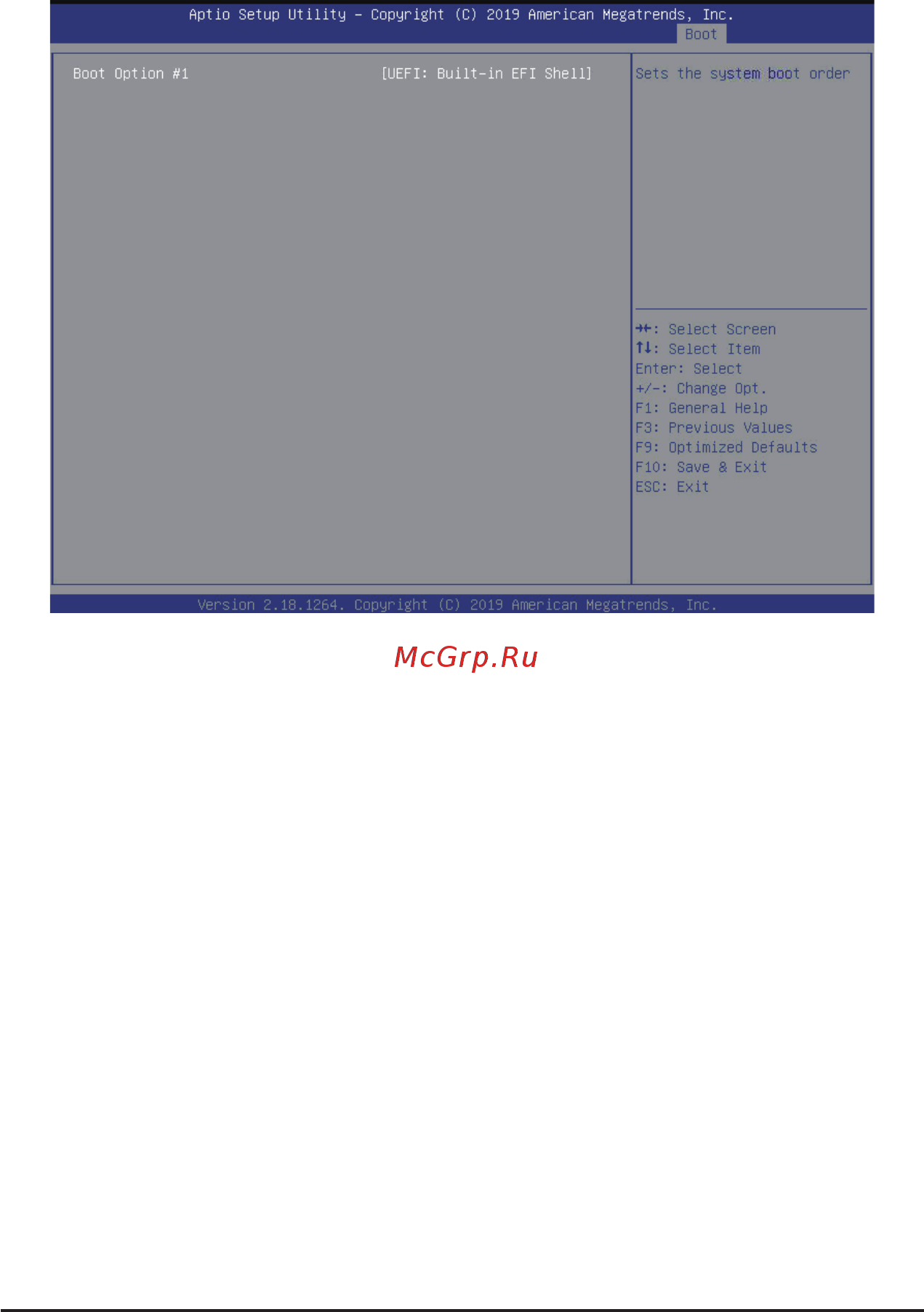

5-8-4 UEFI Application Boot Priorities

The UEFI application boot priorities submenu allows you to specify the boot device priority from the available

UEFI applications during system boot-up. BIOS setup will display an error message if the legacy drive(s)

specied is not bootable.
