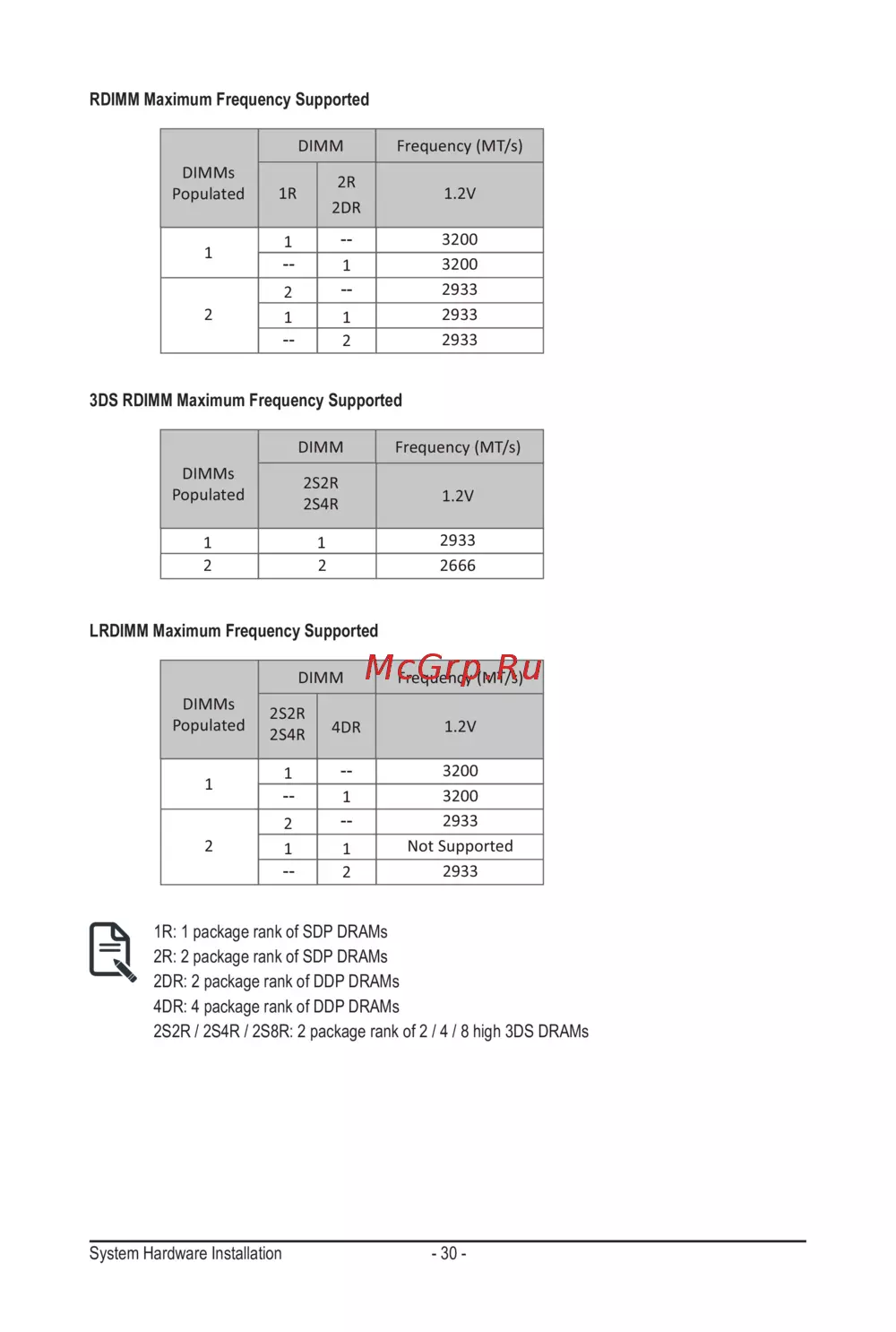

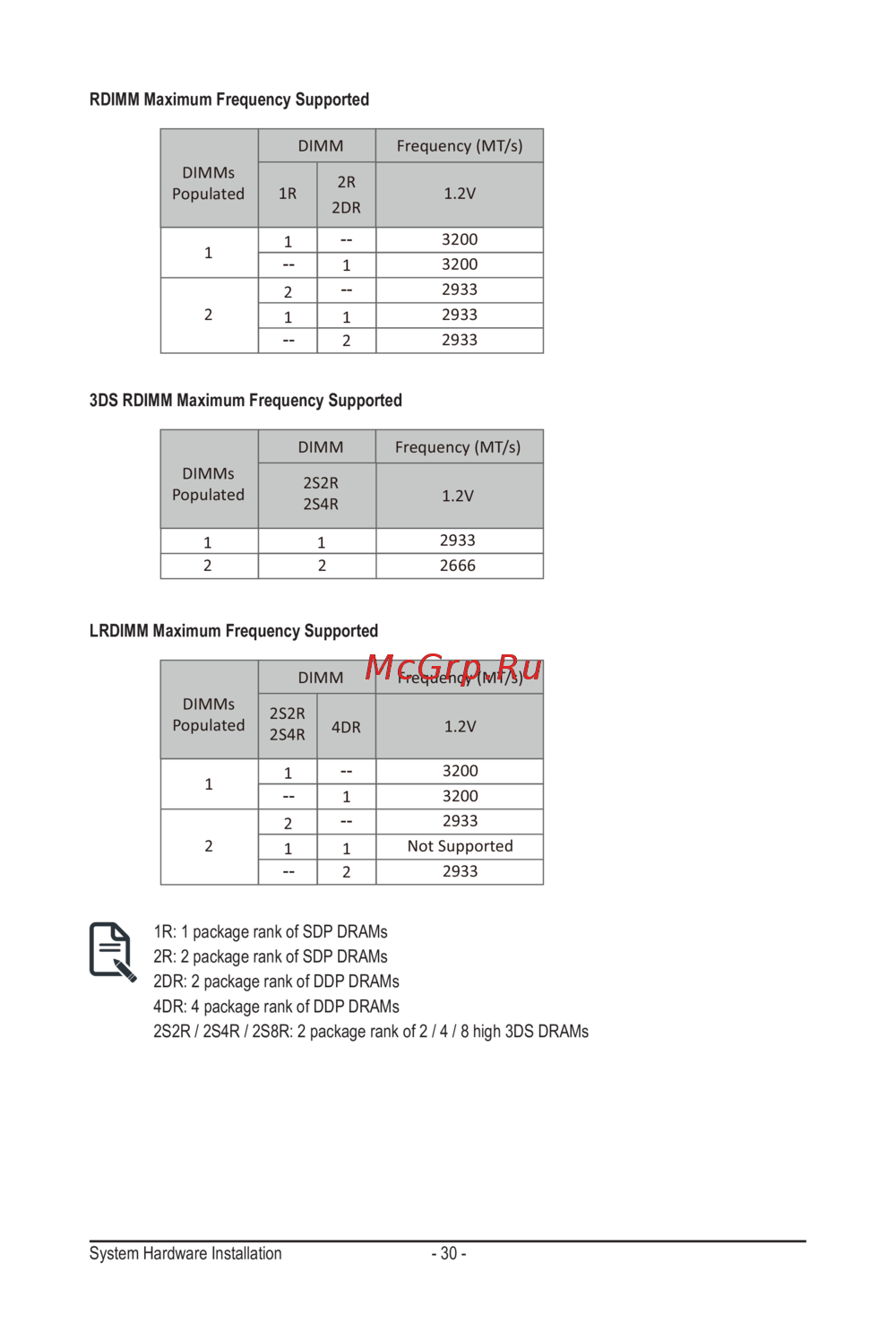

Gigabyte G292-Z42 (rev. 100) [30/155] System hardware installation 30

System Hardware Installation - 30 -

DIMMs

Populated

DIMM

2DR

3200

2933

1.2V

Frequency (MT/s)

RDIMM Maximum Frequency Supported

3DS RDIMM Maximum Frequency Supported

DIMMs

Populated

DIMM

2S2R

2S4R

2933

2666

1.2V

Frequency (MT/s)

LRDIMM Maximum Frequency Supported

4DR

DIMMs

Populated

DIMM

2S2R

2S4R

3200

2933

Not Supported

2933

1.2V

Frequency (MT/s)

1R: 1 package rank of SDP DRAMs

2R: 2 package rank of SDP DRAMs

2DR: 2 package rank of DDP DRAMs

4DR: 4 package rank of DDP DRAMs

2S2R / 2S4R / 2S8R: 2 package rank of 2 / 4 / 8 high 3DS DRAMs
