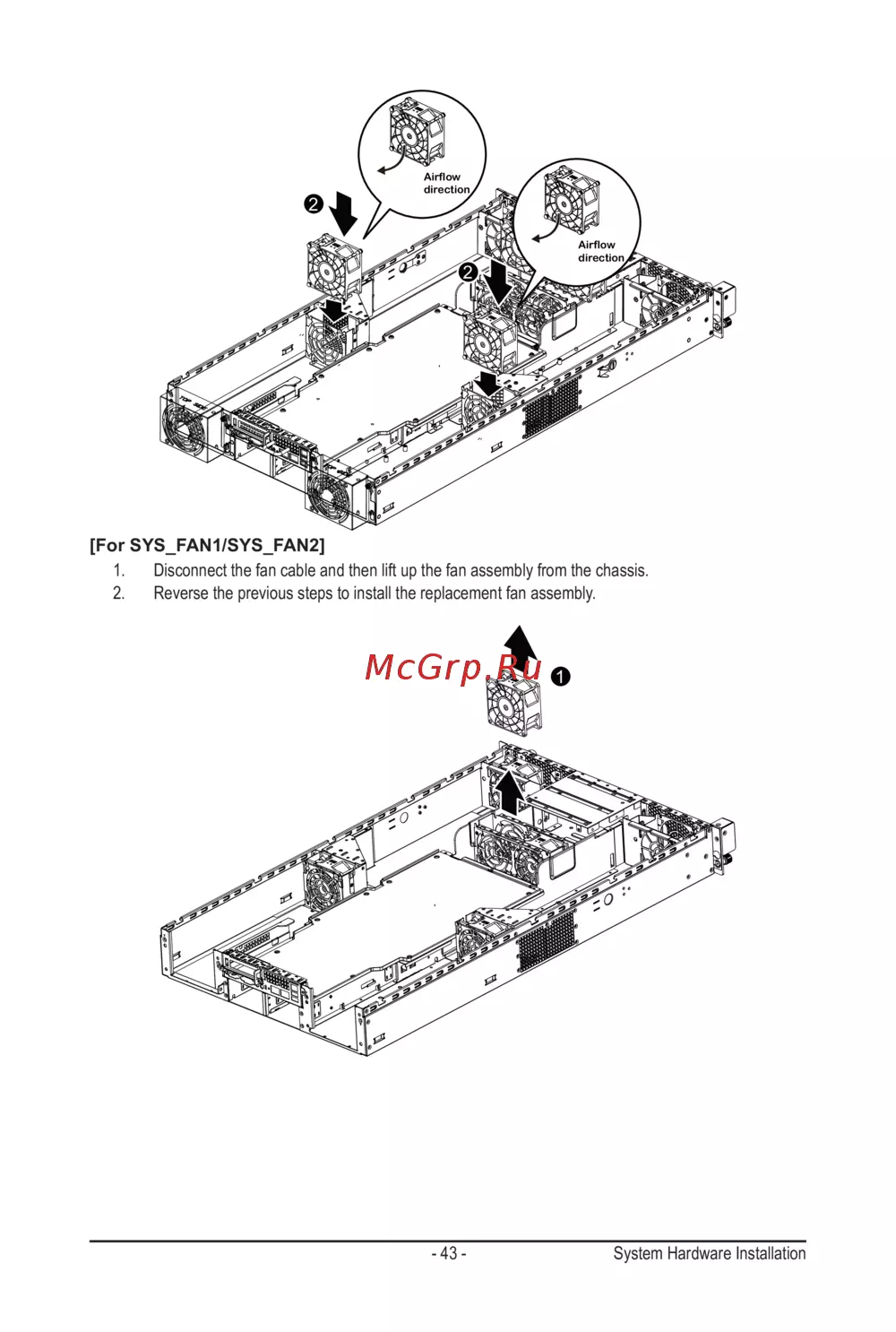

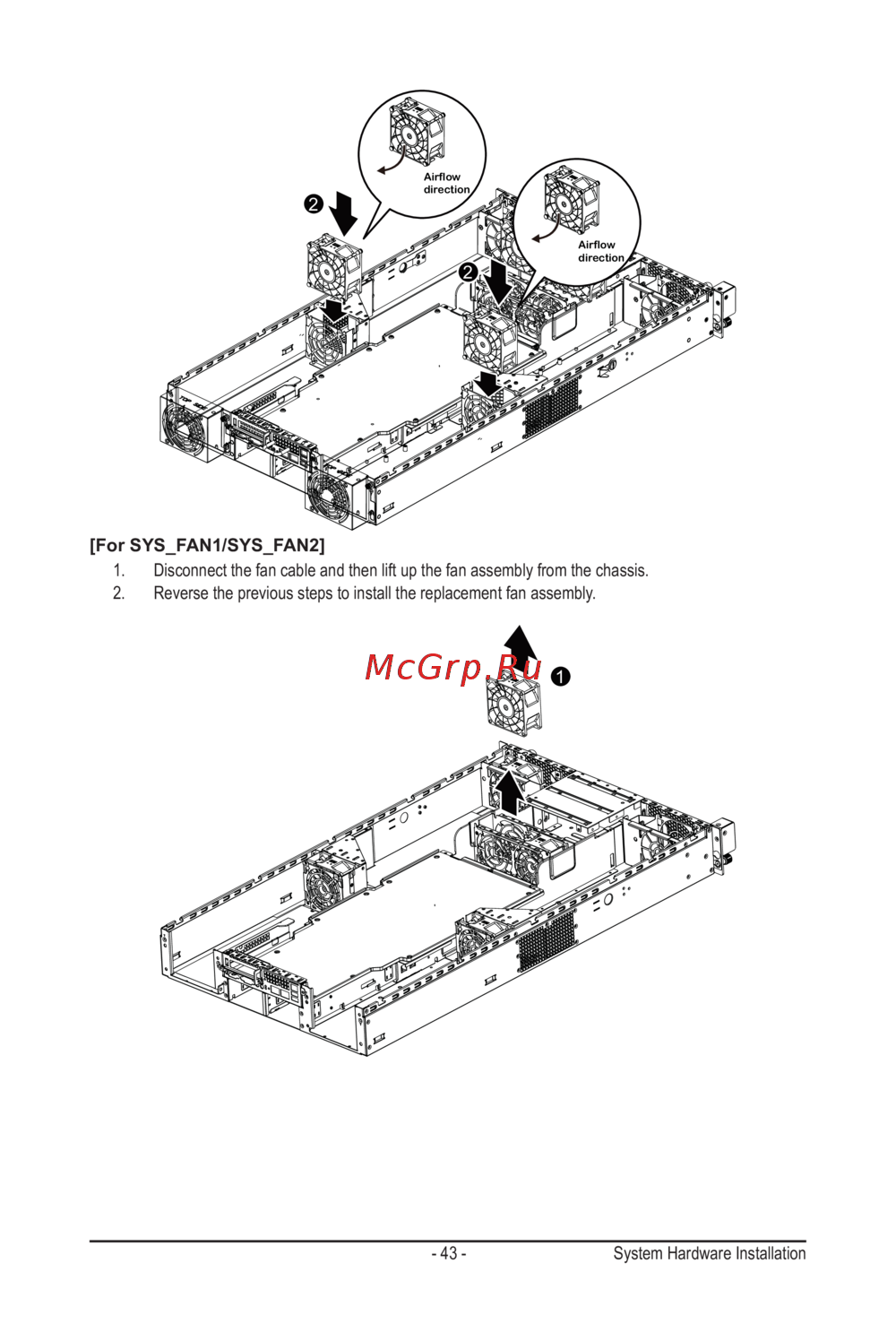

- 43 - System Hardware Installation

Airflow

direction

Airflow

direction

[For SYS_FAN1/SYS_FAN2]

1. Disconnect the fan cable and then lift up the fan assembly from the chassis.

2. Reverse the previous steps to install the replacement fan assembly.
