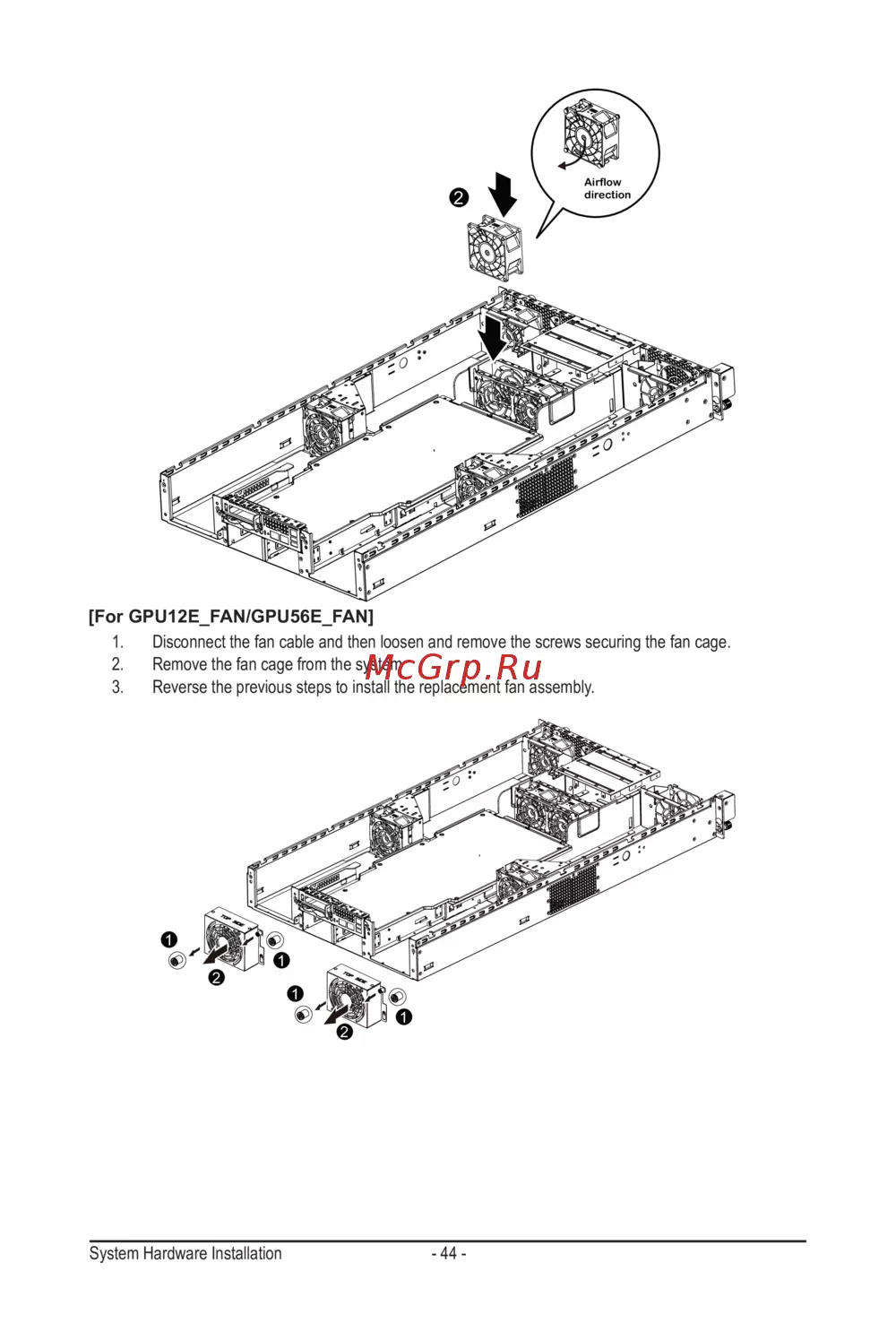

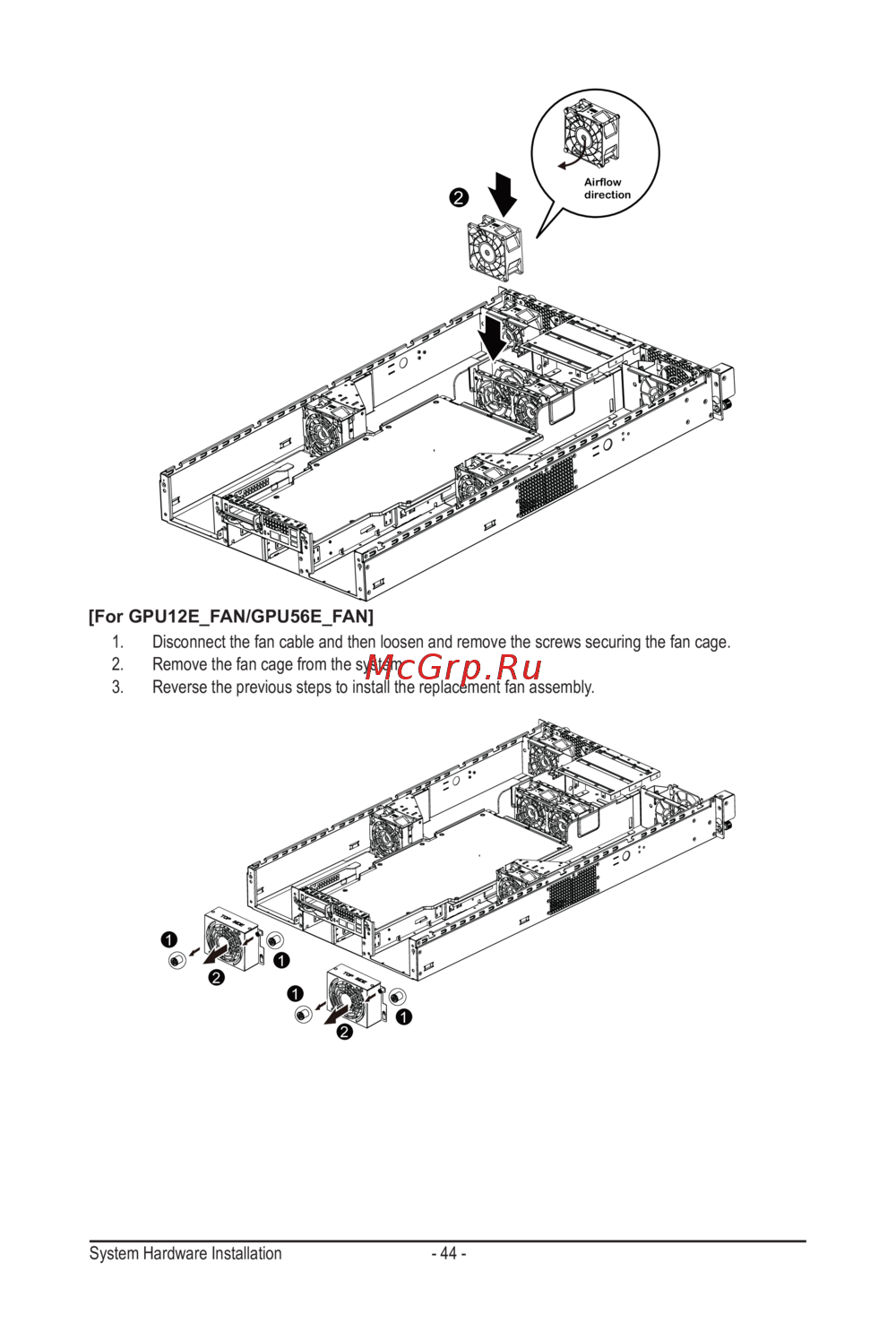

System Hardware Installation - 44 -

Airflow

direction

[For GPU12E_FAN/GPU56E_FAN]

1. Disconnect the fan cable and then loosen and remove the screws securing the fan cage.

2. Remove the fan cage from the system

3. Reverse the previous steps to install the replacement fan assembly.
