Gigabyte G292-Z42 (rev. 100) [64/155] 2 advanced menu

BIOS Setup - 64 -

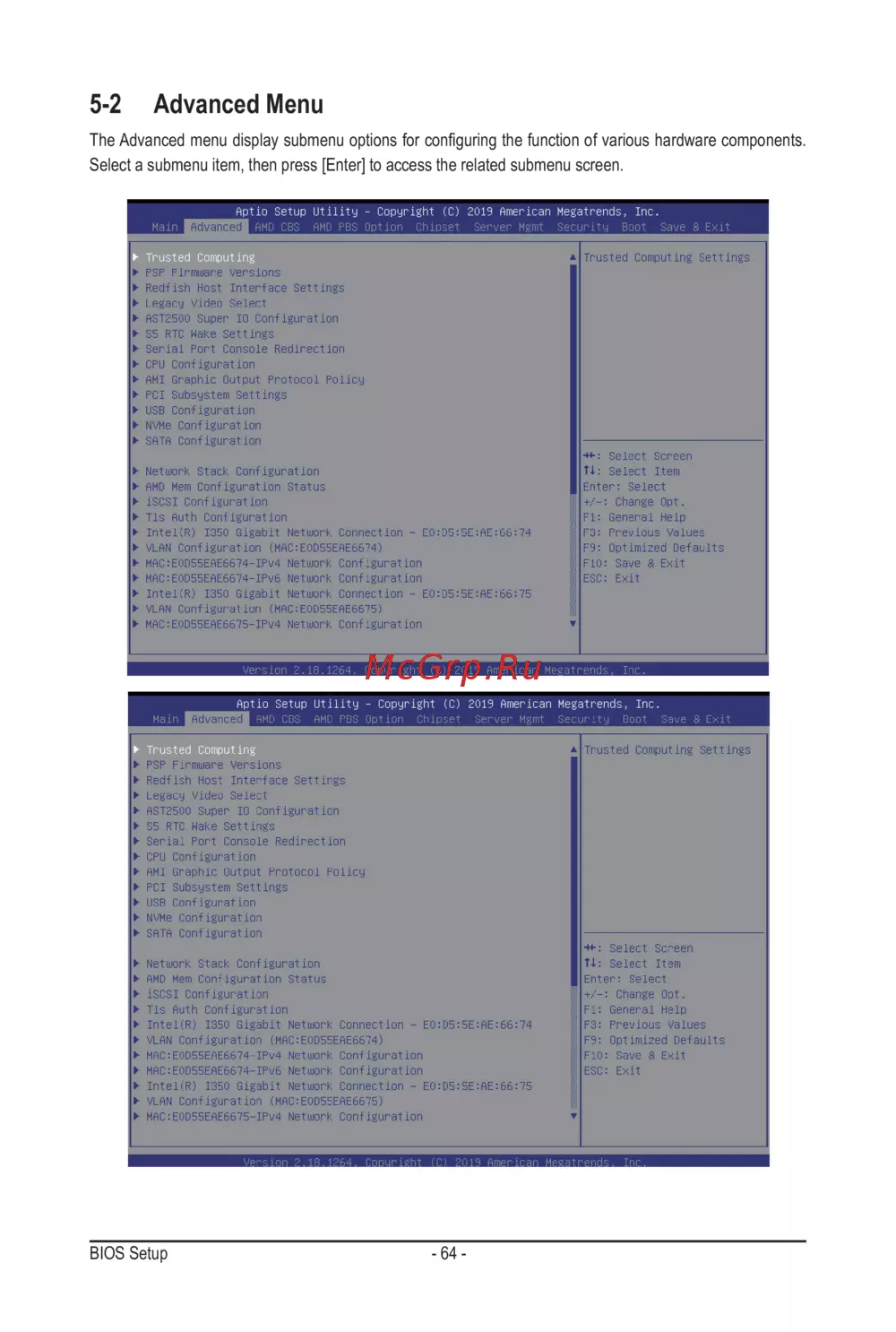

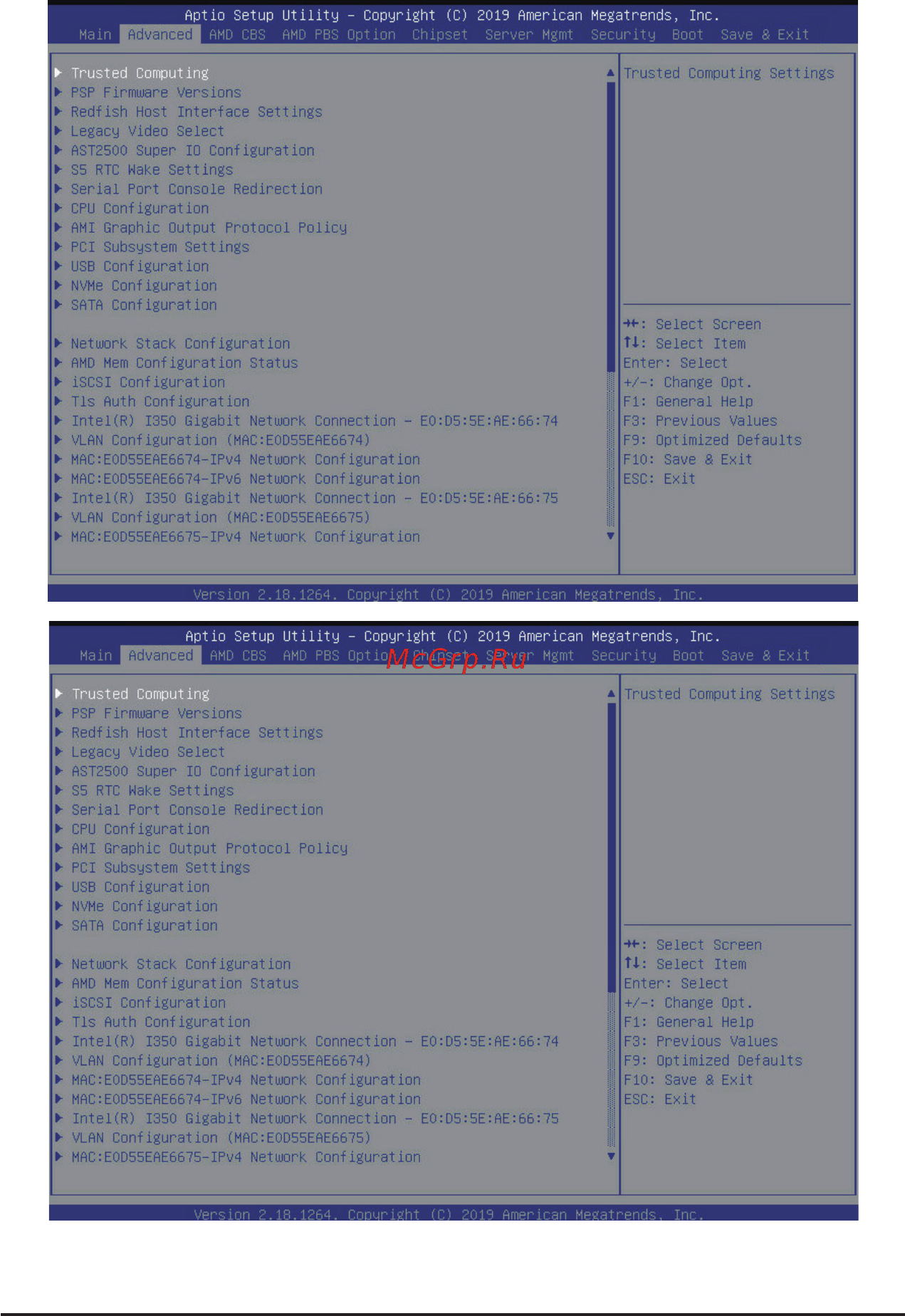

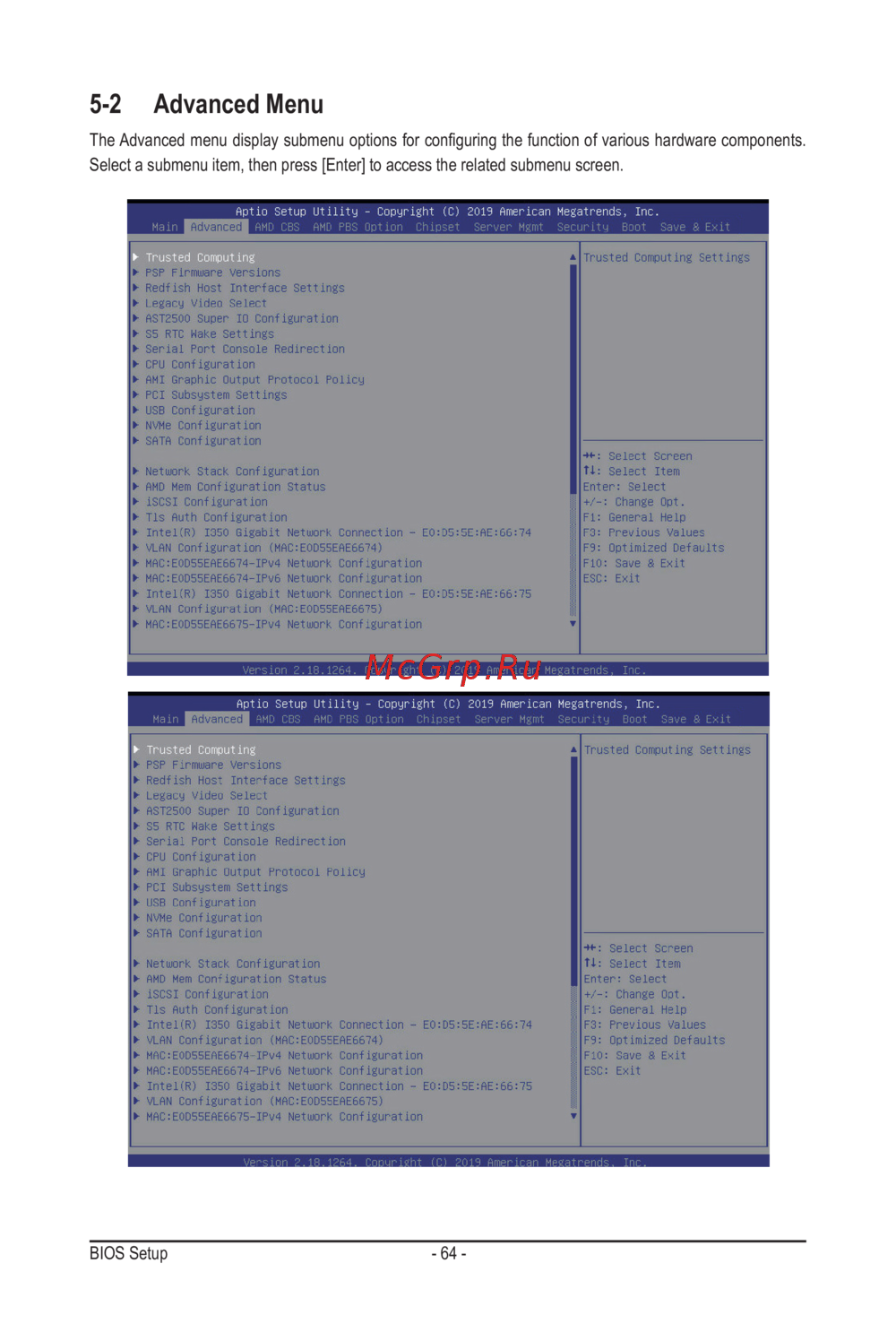

5-2 Advanced Menu

The Advanced menu display submenu options for conguring the function of various hardware components.

Select a submenu item, then press [Enter] to access the related submenu screen.
