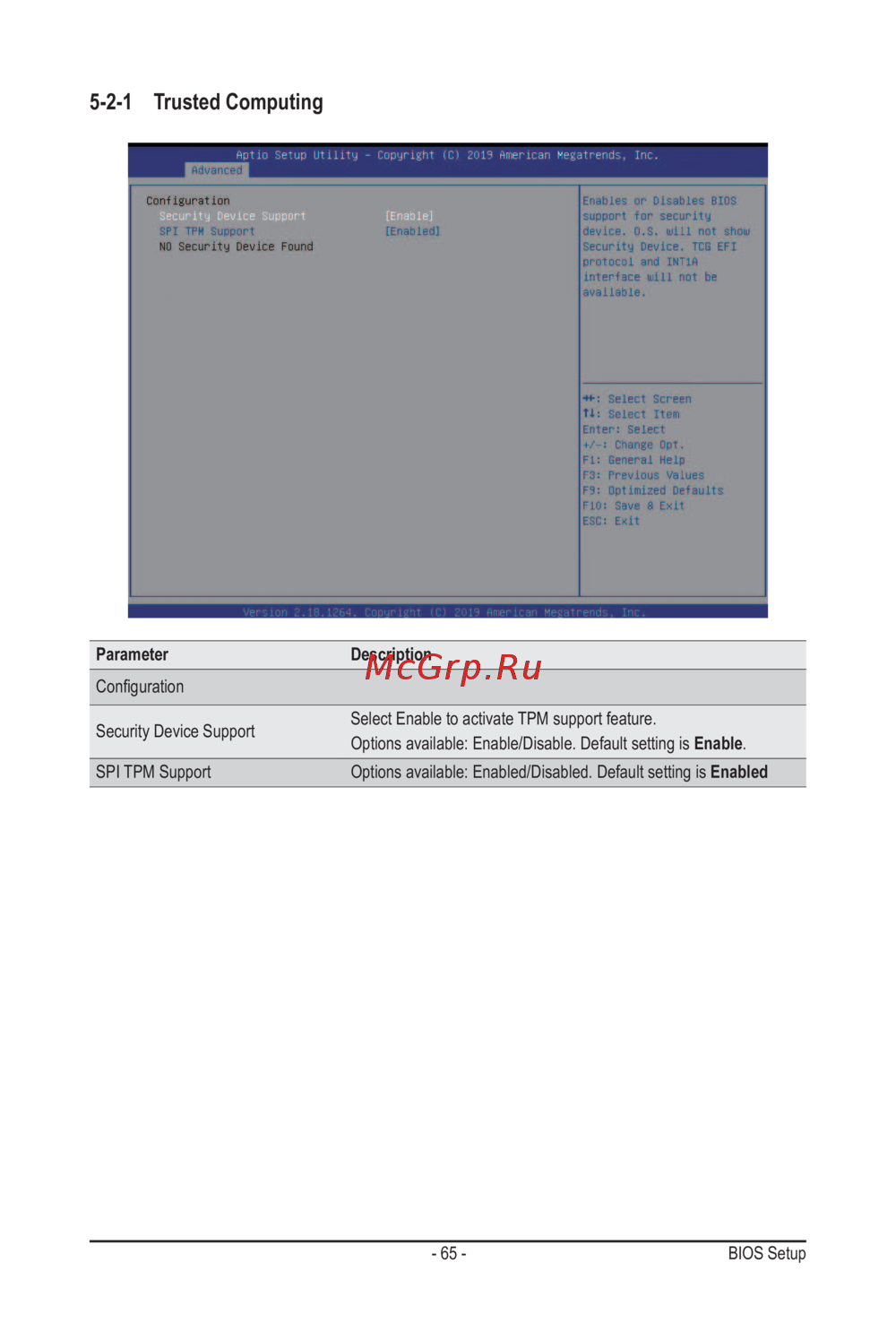

Gigabyte G292-Z42 (rev. 100) [65/155] 2 1 trusted computing

- 65 - BIOS Setup

Parameter Description

Conguration

Security Device Support

Select Enable to activate TPM support feature.

Options available: Enable/Disable. Default setting is Enable.

SPI TPM Support Options available: Enabled/Disabled. Default setting is Enabled

5-2-1 Trusted Computing
