Gigabyte G292-Z42 (rev. 100) [66/155] 2 2 psp firmware versions

BIOS Setup - 66 -

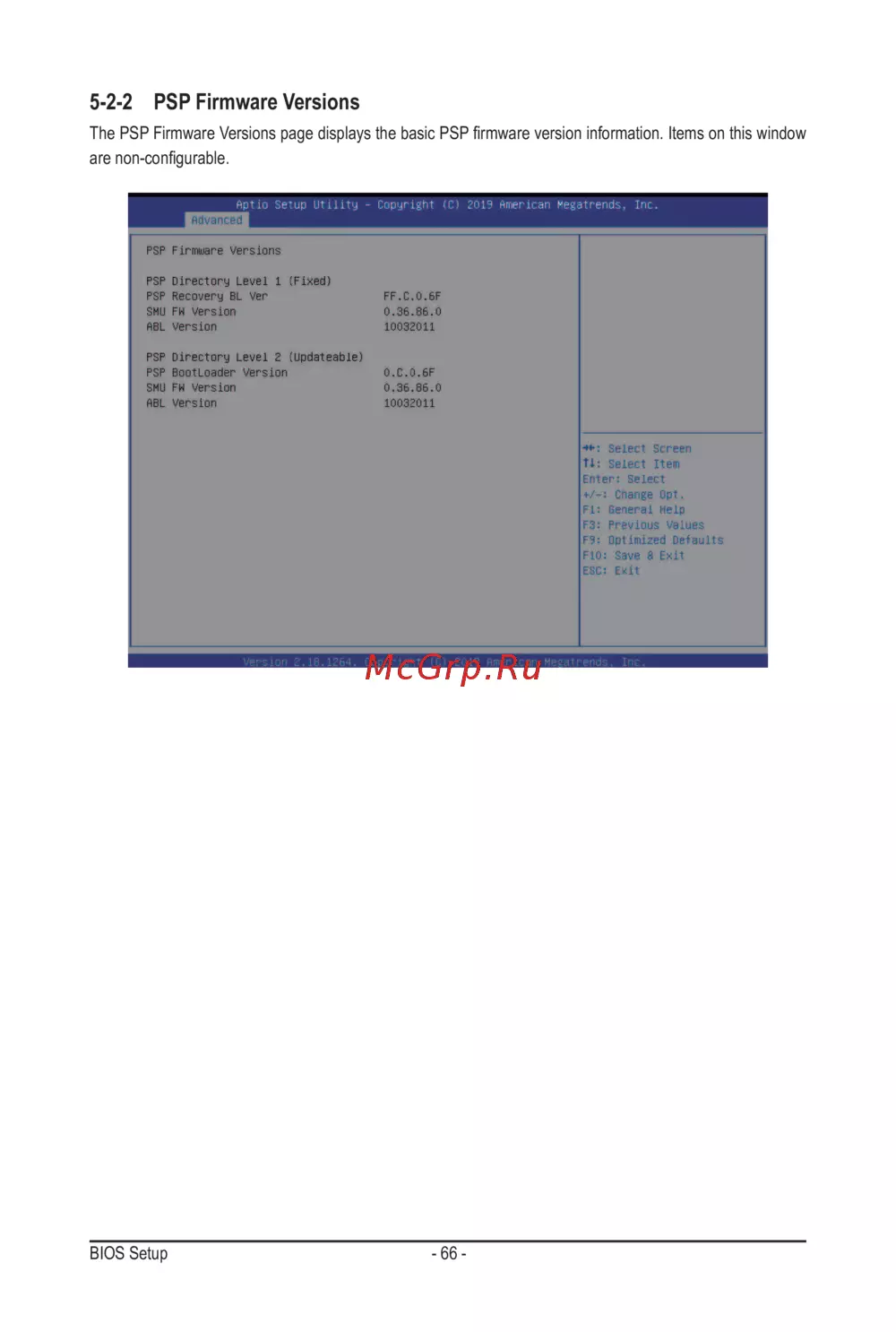

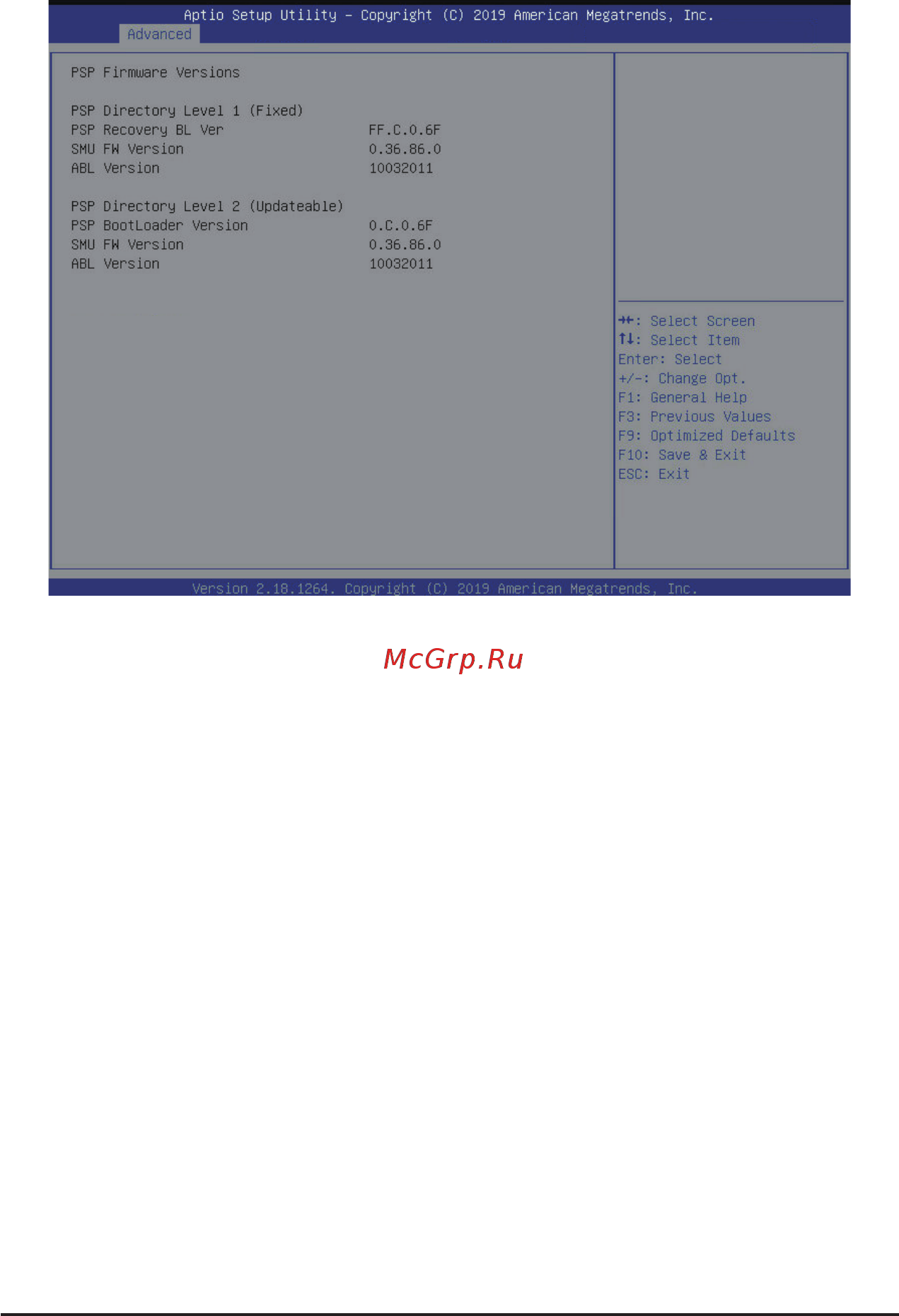

5-2-2 PSP Firmware Versions

The PSP Firmware Versions page displays the basic PSP rmware version information. Items on this window

are non-congurable.
