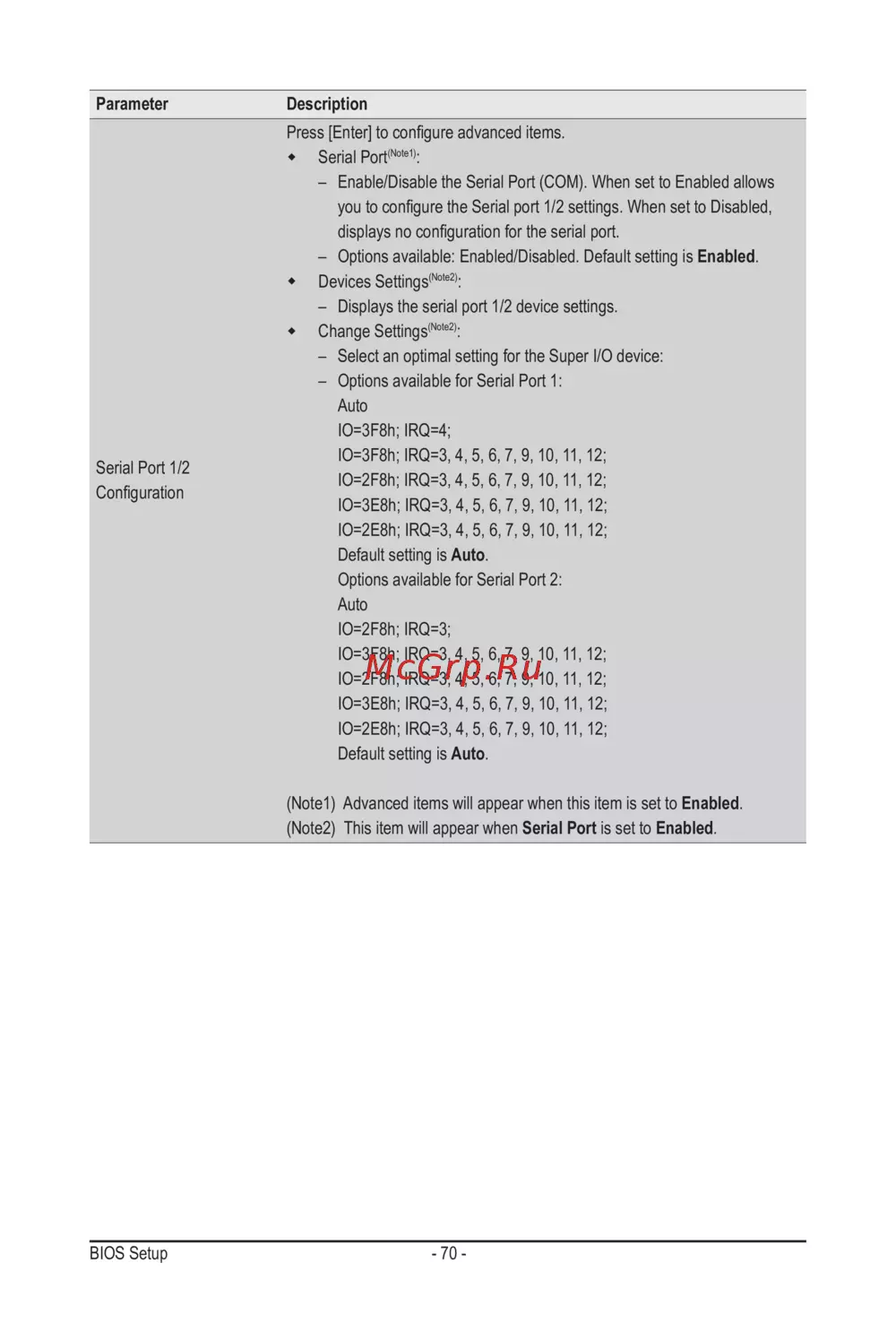

BIOS Setup - 70 -
Parameter Description
Serial Port 1/2
Conguration
Press [Enter] to congure advanced items.
Serial Port
(Note1)
:
– Enable/Disable the Serial Port (COM). When set to Enabled allows
you to congure the Serial port 1/2 settings. When set to Disabled,
displays no conguration for the serial port.
– Options available: Enabled/Disabled. Default setting is Enabled.
Devices Settings
(Note2)
:
– Displays the serial port 1/2 device settings.
Change Settings
(Note2)
:
– Select an optimal setting for the Super I/O device:
– Options available for Serial Port 1:
Auto
IO=3F8h; IRQ=4;
IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
Default setting is Auto.
Options available for Serial Port 2:
Auto
IO=2F8h; IRQ=3;
IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
Default setting is Auto.
(Note1) Advanced items will appear when this item is set to Enabled.
(Note2) This item will appear when Serial Port is set to Enabled.
