Gigabyte G292-Z42 (rev. 100) [71/155] 2 6 s5 rtc wake settings

- 71 - BIOS Setup

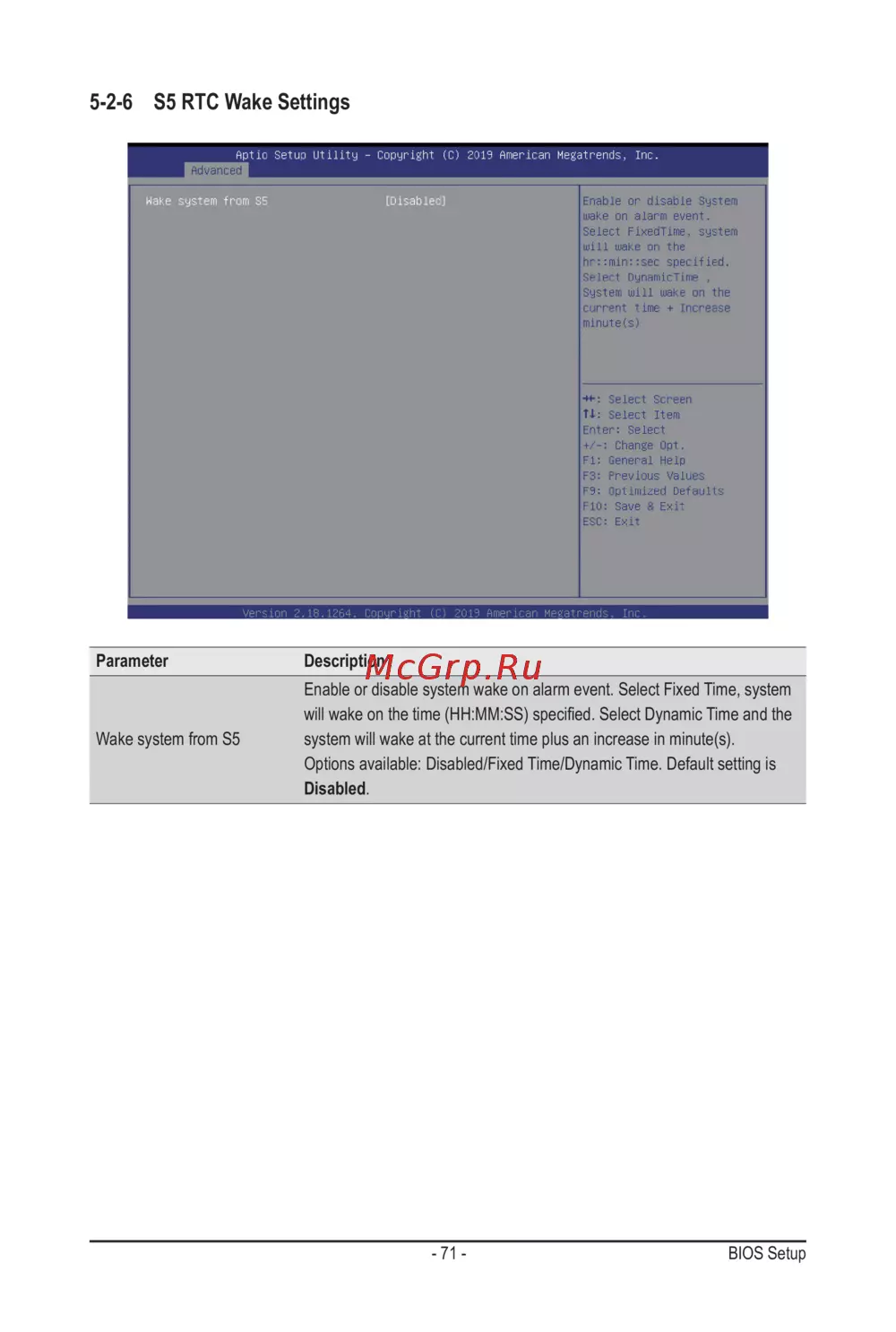

5-2-6 S5 RTC Wake Settings

Parameter Description

Wake system from S5

Enable or disable system wake on alarm event. Select Fixed Time, system

will wake on the time (HH:MM:SS) specied. Select Dynamic Time and the

system will wake at the current time plus an increase in minute(s).

Options available: Disabled/Fixed Time/Dynamic Time. Default setting is

Disabled.
