Gigabyte G292-Z42 (rev. 100) [75/155] 2 8 cpu configuration

- 75 - BIOS Setup

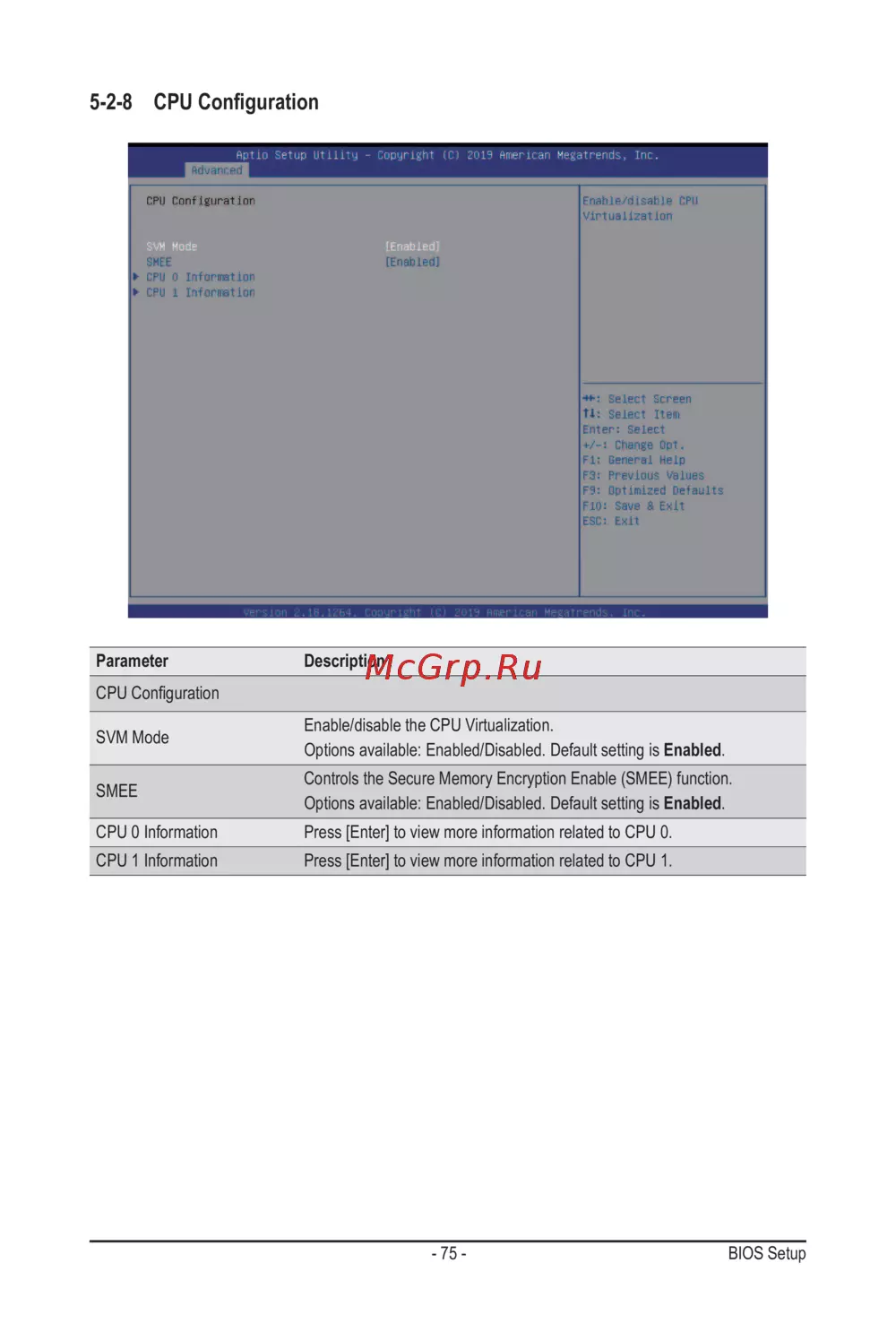

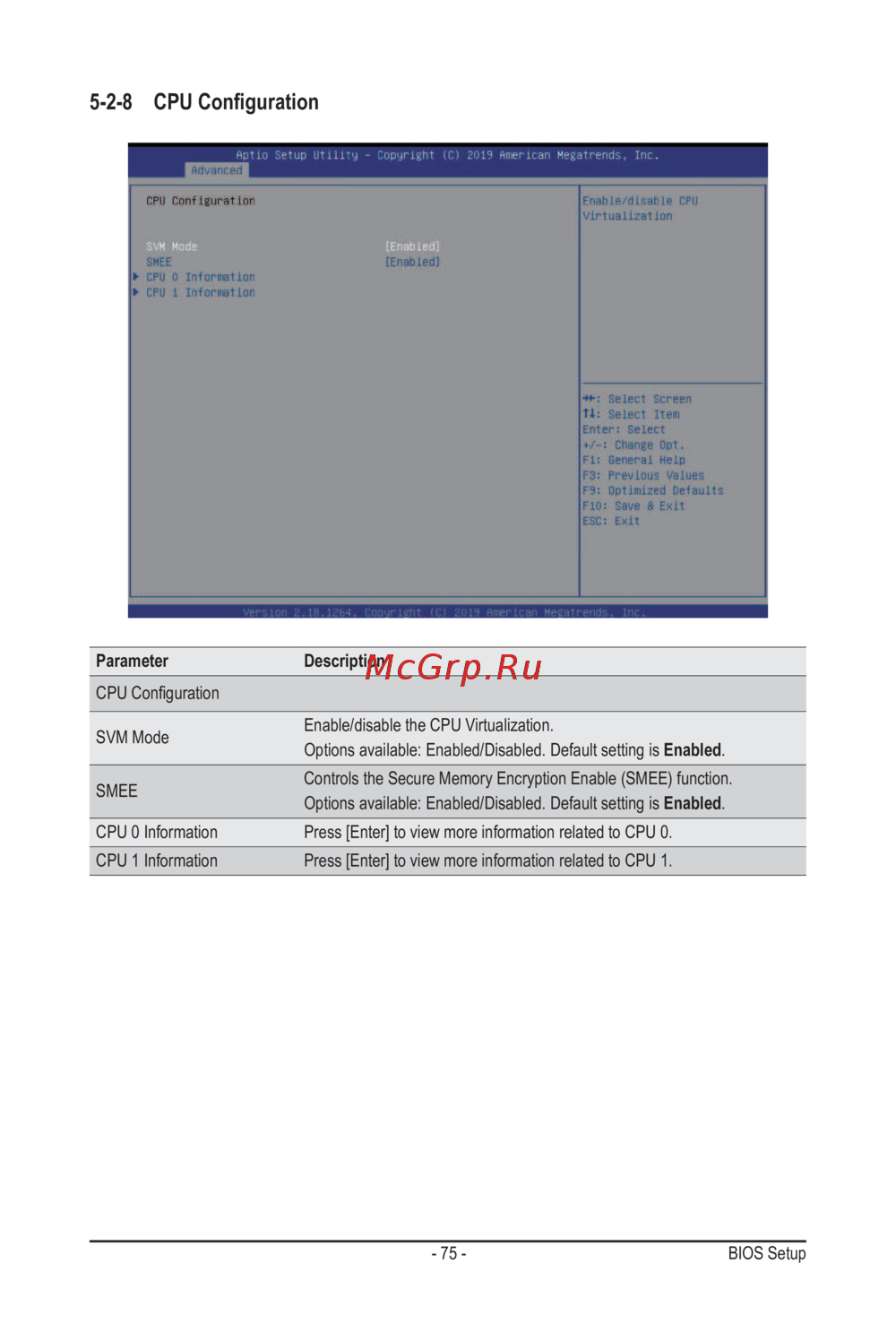

5-2-8 CPU Conguration

Parameter Description

CPU Conguration

SVM Mode

Enable/disable the CPU Virtualization.

Options available: Enabled/Disabled. Default setting is Enabled.

SMEE

Controls the Secure Memory Encryption Enable (SMEE) function.

Options available: Enabled/Disabled. Default setting is Enabled.

CPU 0 Information Press [Enter] to view more information related to CPU 0.

CPU 1 Information Press [Enter] to view more information related to CPU 1.
