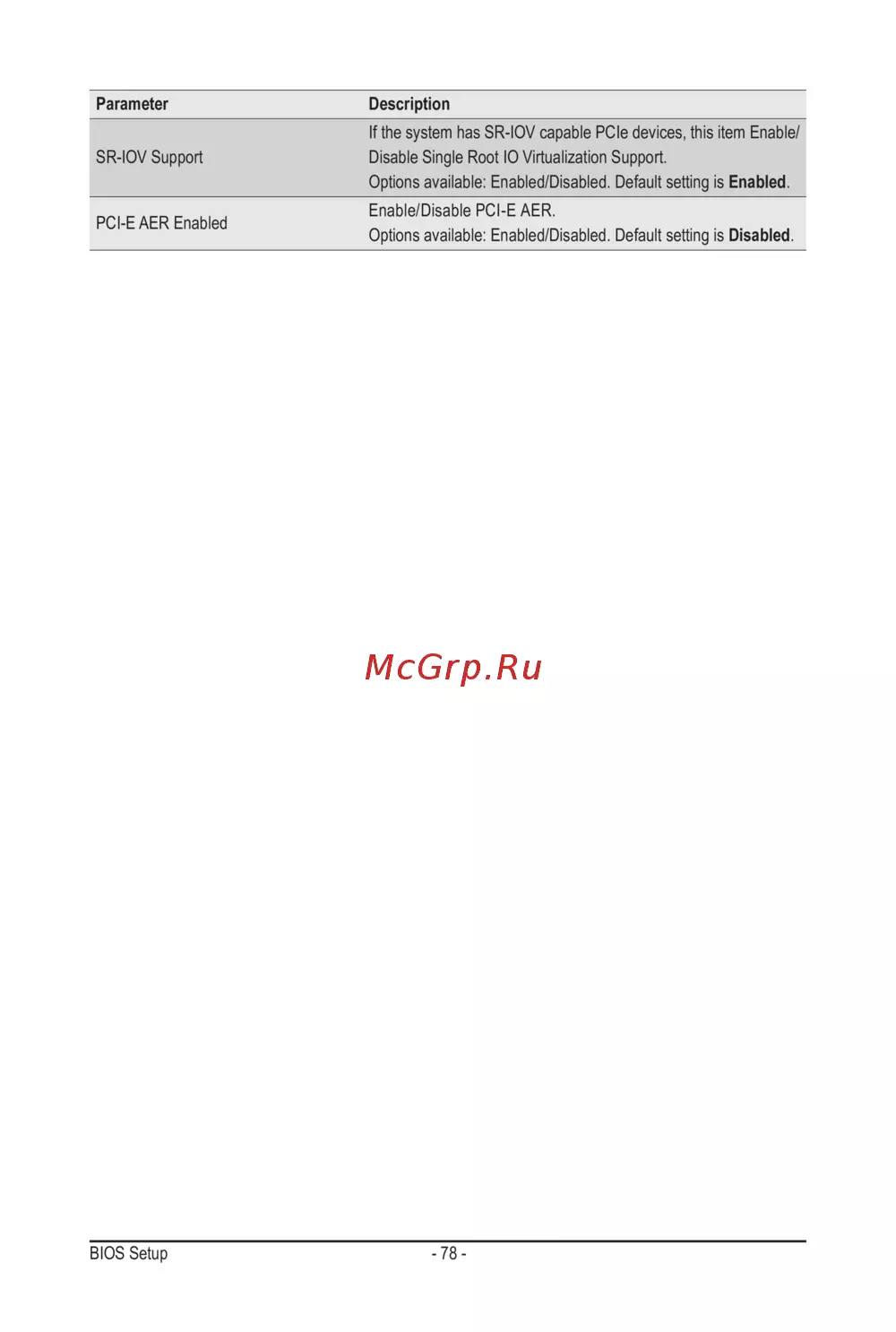

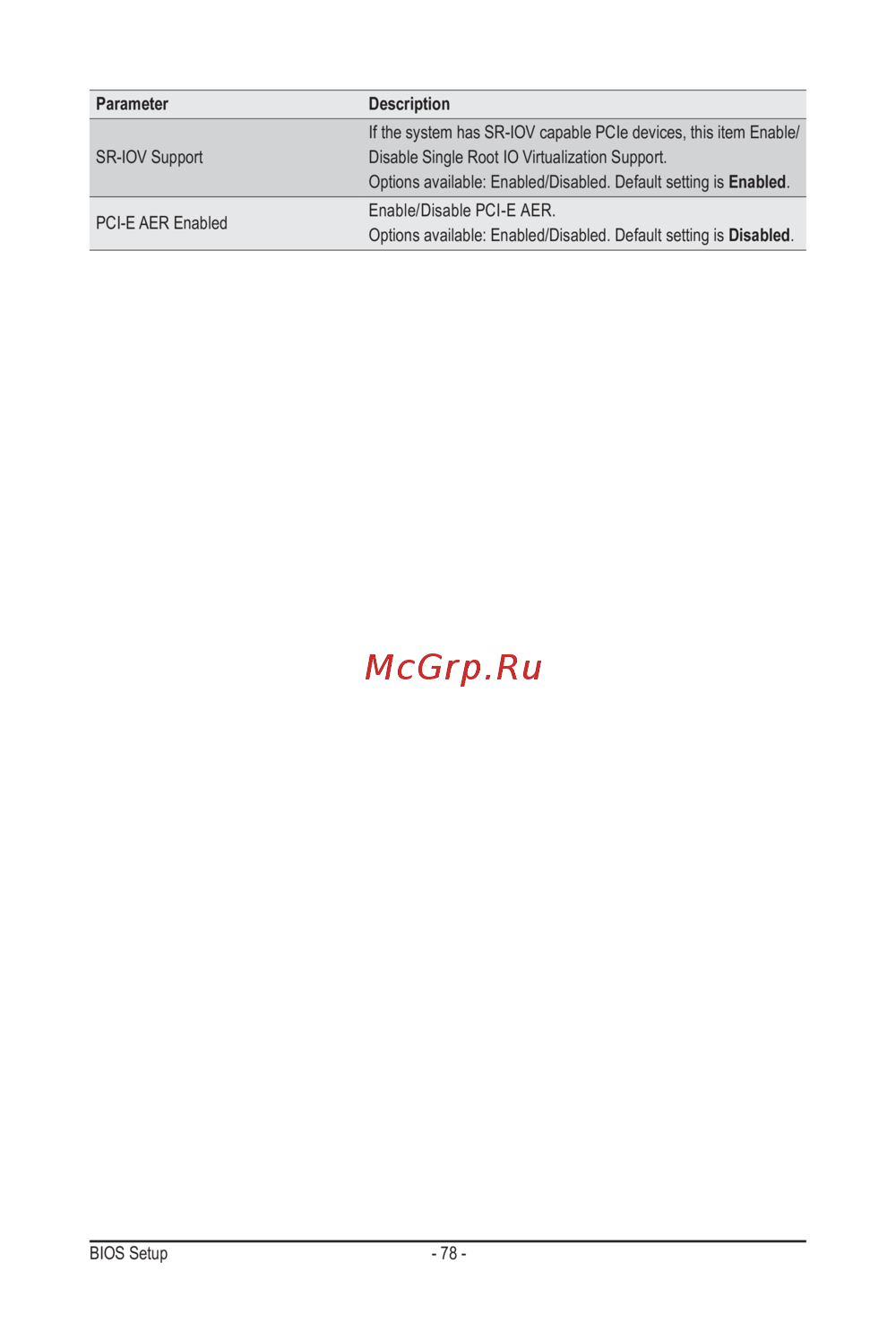

BIOS Setup - 78 -

Parameter Description

SR-IOV Support

If the system has SR-IOV capable PCIe devices, this item Enable/

Disable Single Root IO Virtualization Support.

Options available: Enabled/Disabled. Default setting is Enabled.

PCI-E AER Enabled

Enable/Disable PCI-E AER.

Options available: Enabled/Disabled. Default setting is Disabled.
