Gigabyte G292-Z42 (rev. 100) [81/155] 2 12 nvme configuration

- 81 - BIOS Setup

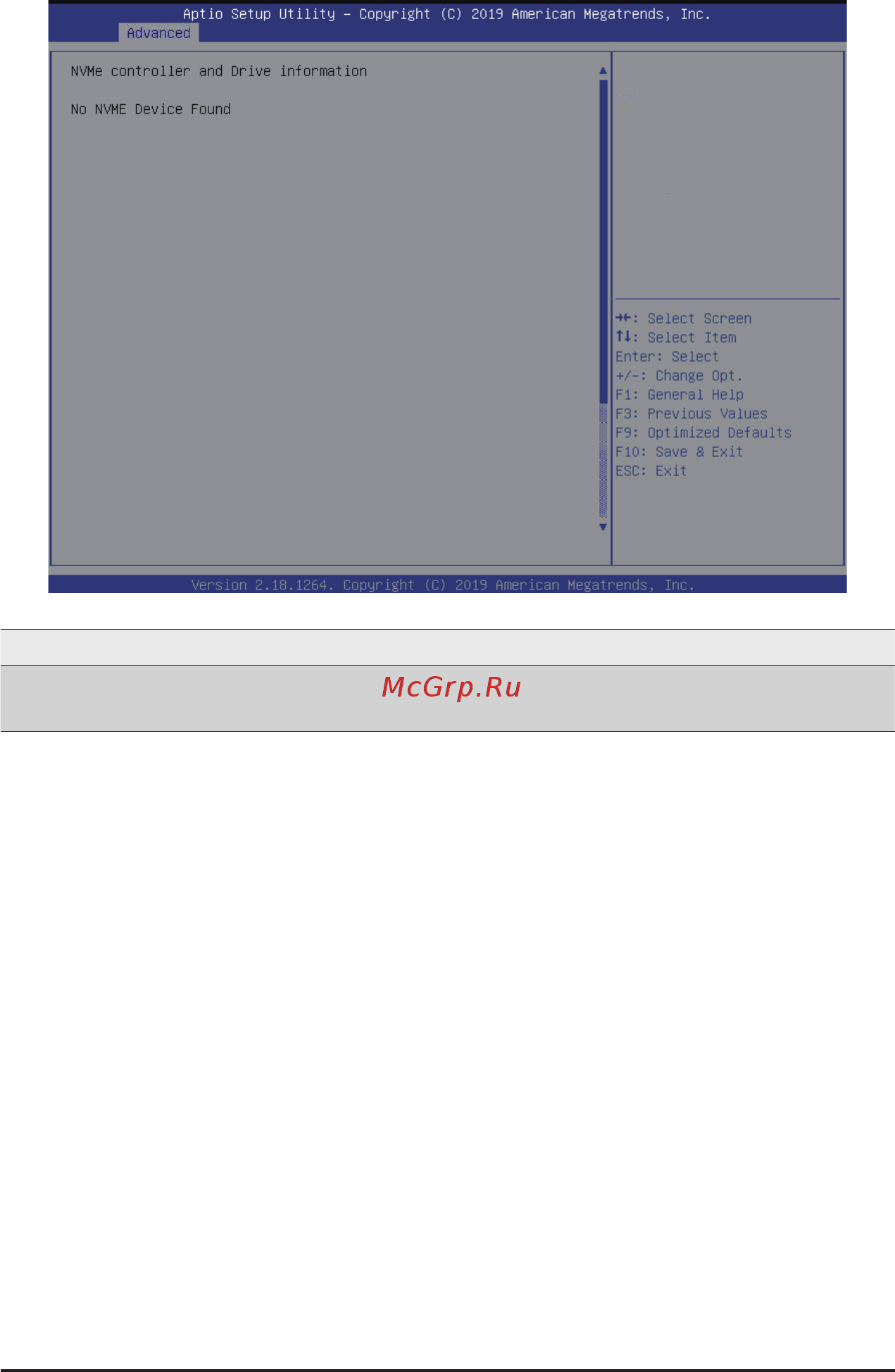

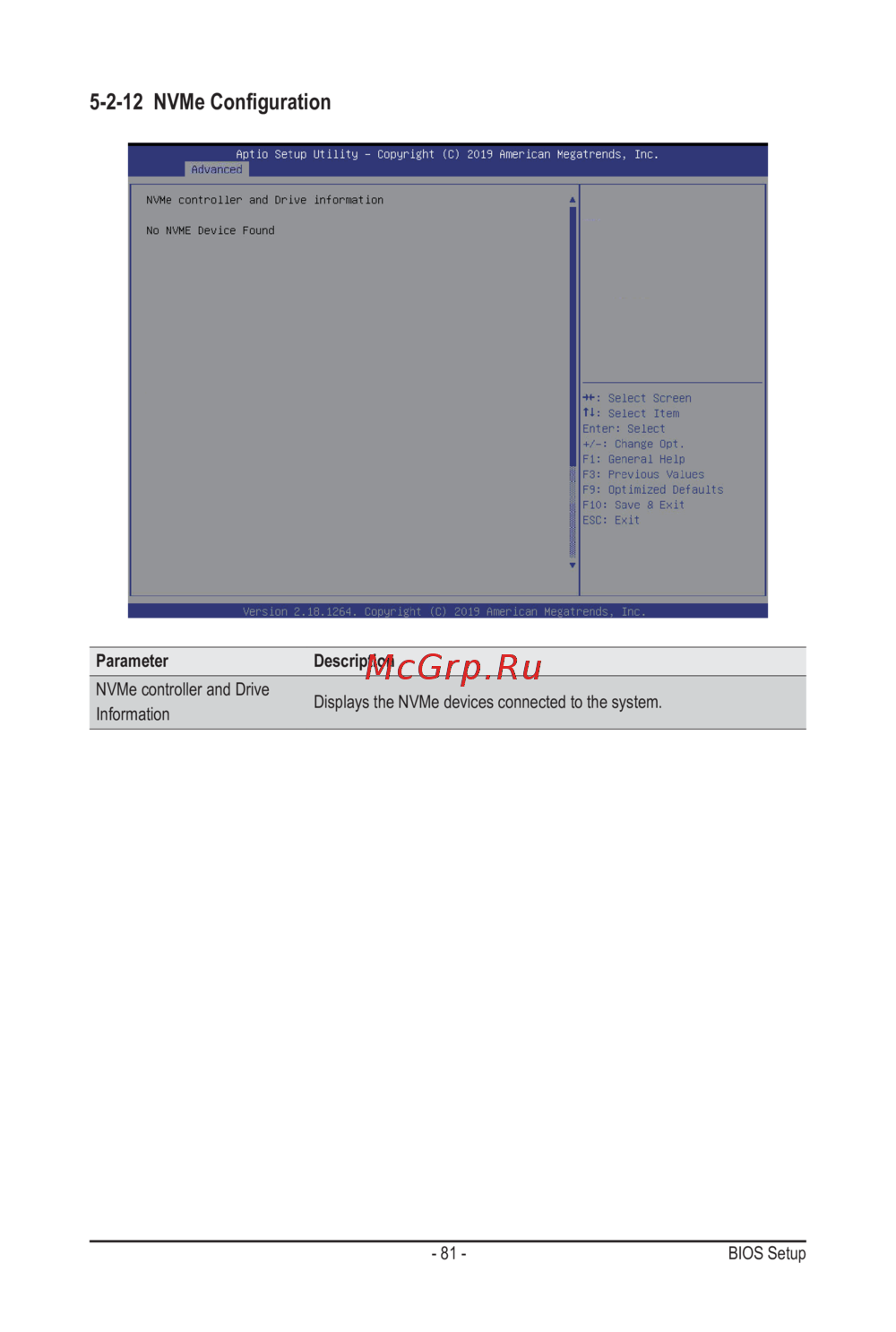

5-2-12 NVMe Conguration

Parameter Description

NVMe controller and Drive

Information

Displays the NVMe devices connected to the system.
