BIOS Setup - 84 -

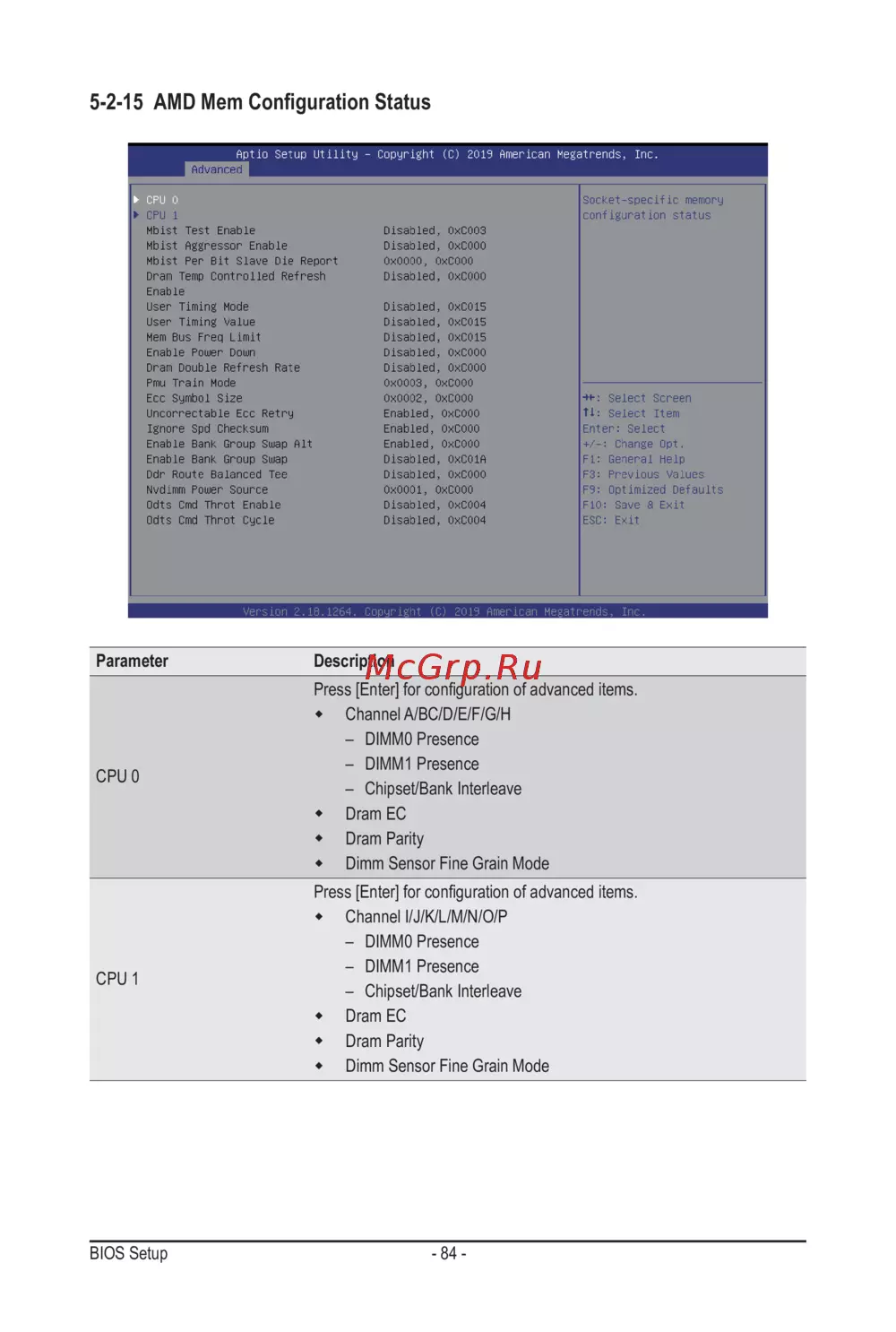

5-2-15 AMD Mem Conguration Status
Parameter Description
CPU 0
Press [Enter] for conguration of advanced items.
Channel A/BC/D/E/F/G/H
– DIMM0 Presence
– DIMM1 Presence
– Chipset/Bank Interleave
Dram EC
Dram Parity
Dimm Sensor Fine Grain Mode
CPU 1
Press [Enter] for conguration of advanced items.
Channel I/J/K/L/M/N/O/P
– DIMM0 Presence
– DIMM1 Presence
– Chipset/Bank Interleave
Dram EC
Dram Parity
Dimm Sensor Fine Grain Mode
