BIOS Setup - 68 -

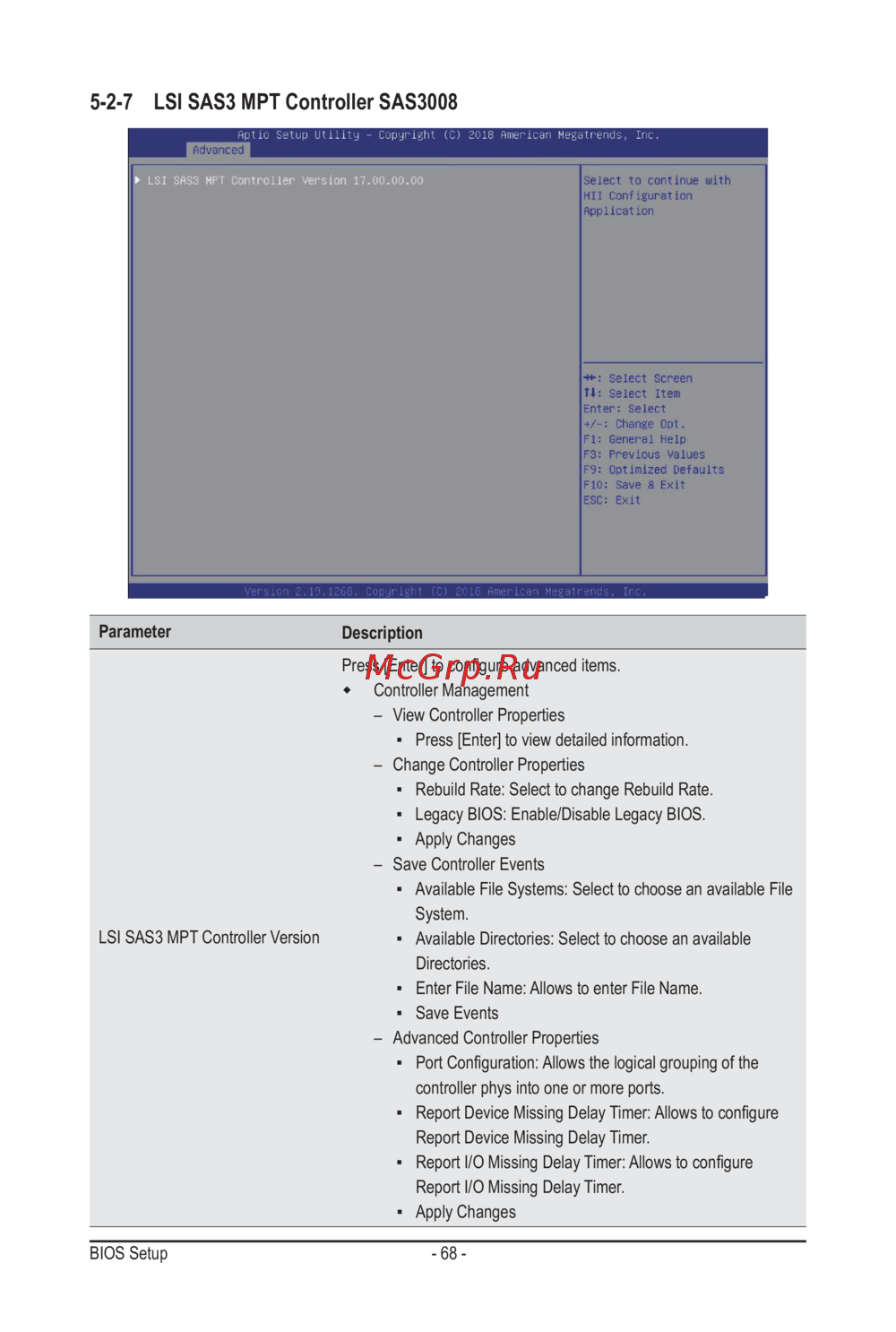

5-2-7 LSI SAS3 MPT Controller SAS3008
Parameter
Description
LSI SAS3 MPT Controller Version
Press [Enter] to congure advanced items.
Controller Management
– View Controller Properties
▪ Press [Enter] to view detailed information.
– Change Controller Properties
▪ Rebuild Rate: Select to change Rebuild Rate.
▪ Legacy BIOS: Enable/Disable Legacy BIOS.
▪ Apply Changes
– Save Controller Events
▪ Available File Systems: Select to choose an available File
System.
▪ Available Directories: Select to choose an available
Directories.
▪ Enter File Name: Allows to enter File Name.
▪ Save Events
– Advanced Controller Properties
▪ Port Conguration: Allows the logical grouping of the
controller phys into one or more ports.
▪ Report Device Missing Delay Timer: Allows to congure
Report Device Missing Delay Timer.
▪ Report I/O Missing Delay Timer: Allows to congure
Report I/O Missing Delay Timer.
▪ Apply Changes
