- 77 - BIOS Setup

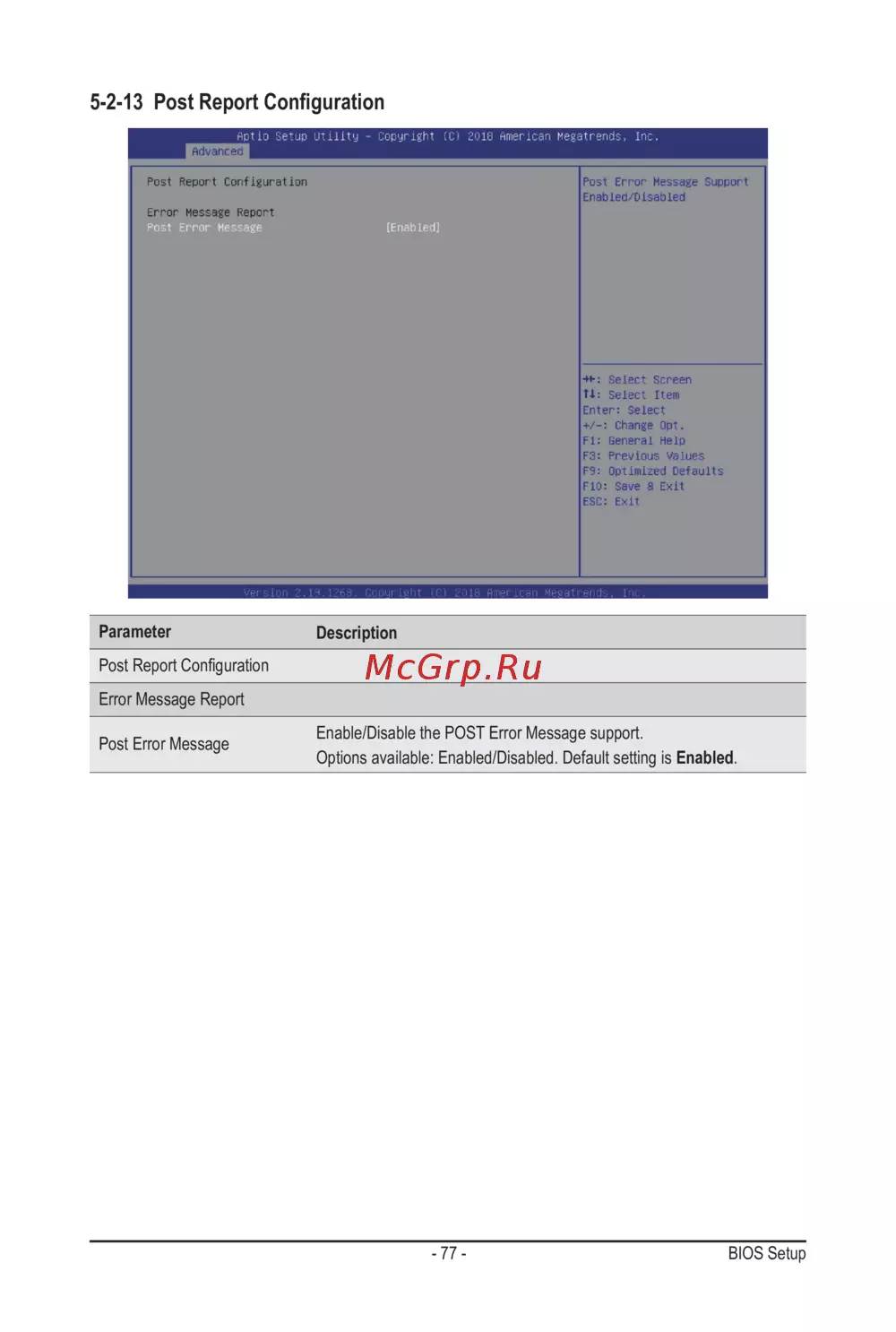

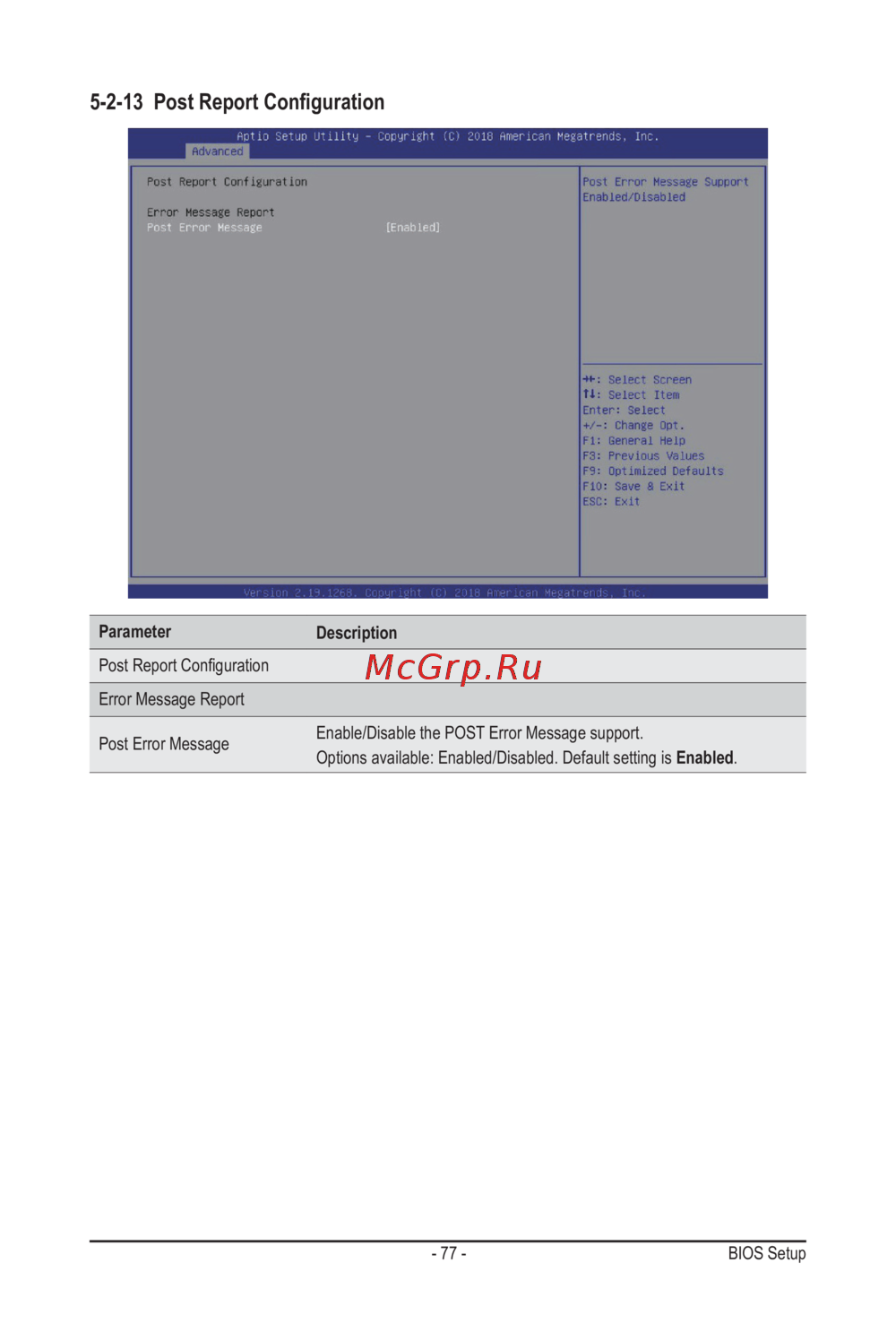

5-2-13 Post Report Conguration

Parameter

Description

Post Report Conguration

Error Message Report

Post Error Message

Enable/Disable the POST Error Message support.

Options available: Enabled/Disabled. Default setting is Enabled.
