BIOS Setup - 96 -

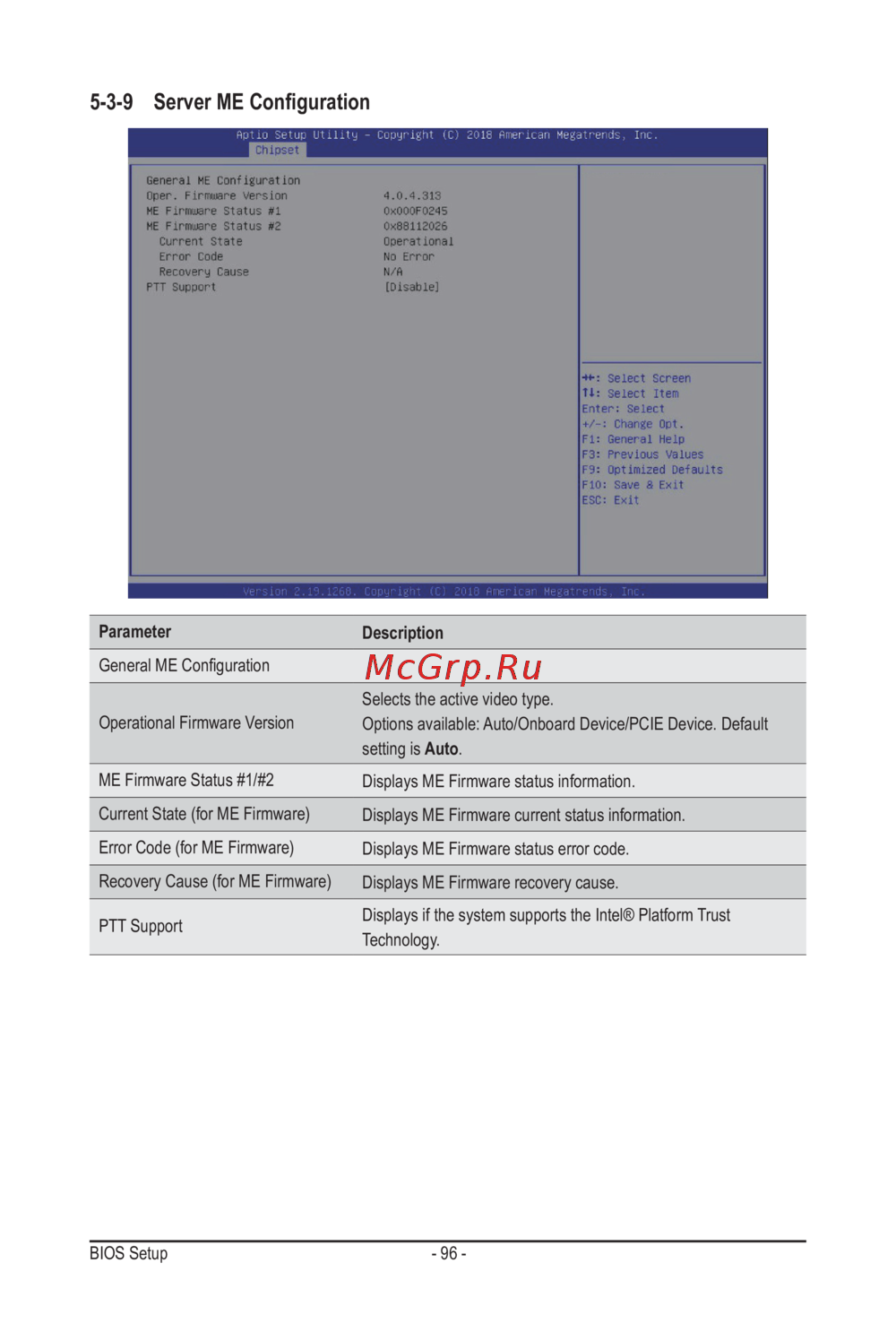

5-3-9 Server ME Conguration

Parameter

Description

General ME Conguration

Operational Firmware Version

Selects the active video type.

Options available: Auto/Onboard Device/PCIE Device. Default

setting is Auto.

ME Firmware Status #1/#2

Displays ME Firmware status information.

Current State (for ME Firmware)

Displays ME Firmware current status information.

Error Code (for ME Firmware)

Displays ME Firmware status error code.

Recovery Cause (for ME Firmware)

Displays ME Firmware recovery cause.

PTT Support

Displays if the system supports the Intel® Platform Trust

Technology.
