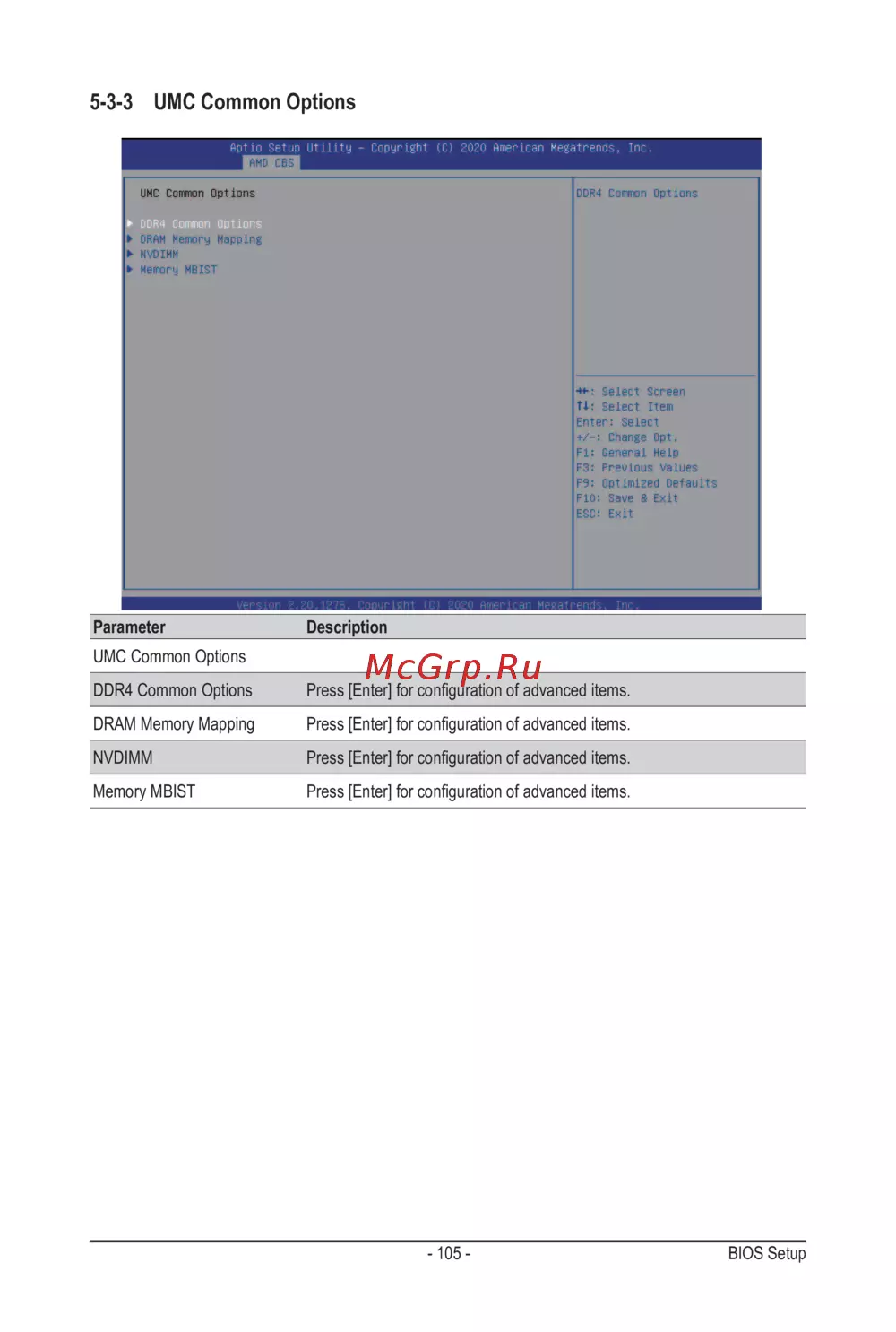

- 105 - BIOS Setup

5-3-3 UMC Common Options

Parameter Description

UMC Common Options

DDR4 Common Options Press [Enter] for conguration of advanced items.

DRAM Memory Mapping Press [Enter] for conguration of advanced items.

NVDIMM Press [Enter] for conguration of advanced items.

Memory MBIST Press [Enter] for conguration of advanced items.
