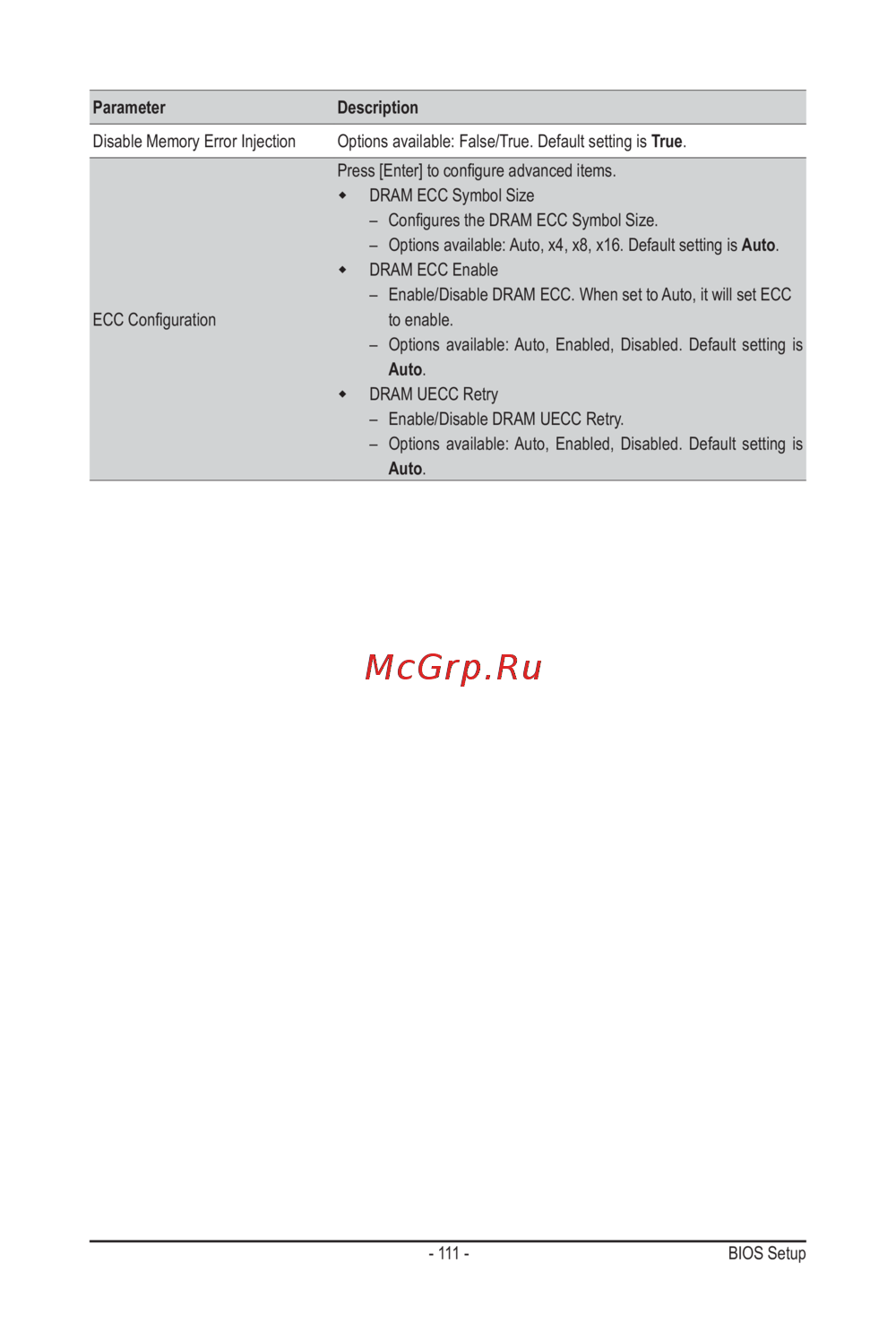

- 111 - BIOS Setup

Parameter Description

Disable Memory Error Injection Options available: False/True. Default setting is True.

ECC Conguration

Press [Enter] to congure advanced items.



DRAM ECC Symbol Size

– Congures the DRAM ECC Symbol Size.

– Options available: Auto, x4, x8, x16. Default setting is Auto.



DRAM ECC Enable

– Enable/Disable DRAM ECC. When set to Auto, it will set ECC

to enable.

– Options available: Auto, Enabled, Disabled. Default setting is

Auto.



DRAM UECC Retry

– Enable/Disable DRAM UECC Retry.

– Options available: Auto, Enabled, Disabled. Default setting is

Auto.
