Gigabyte H262-Z6B (rev. 100) [114/172] 3 3 1 5 security

BIOS Setup - 112 -

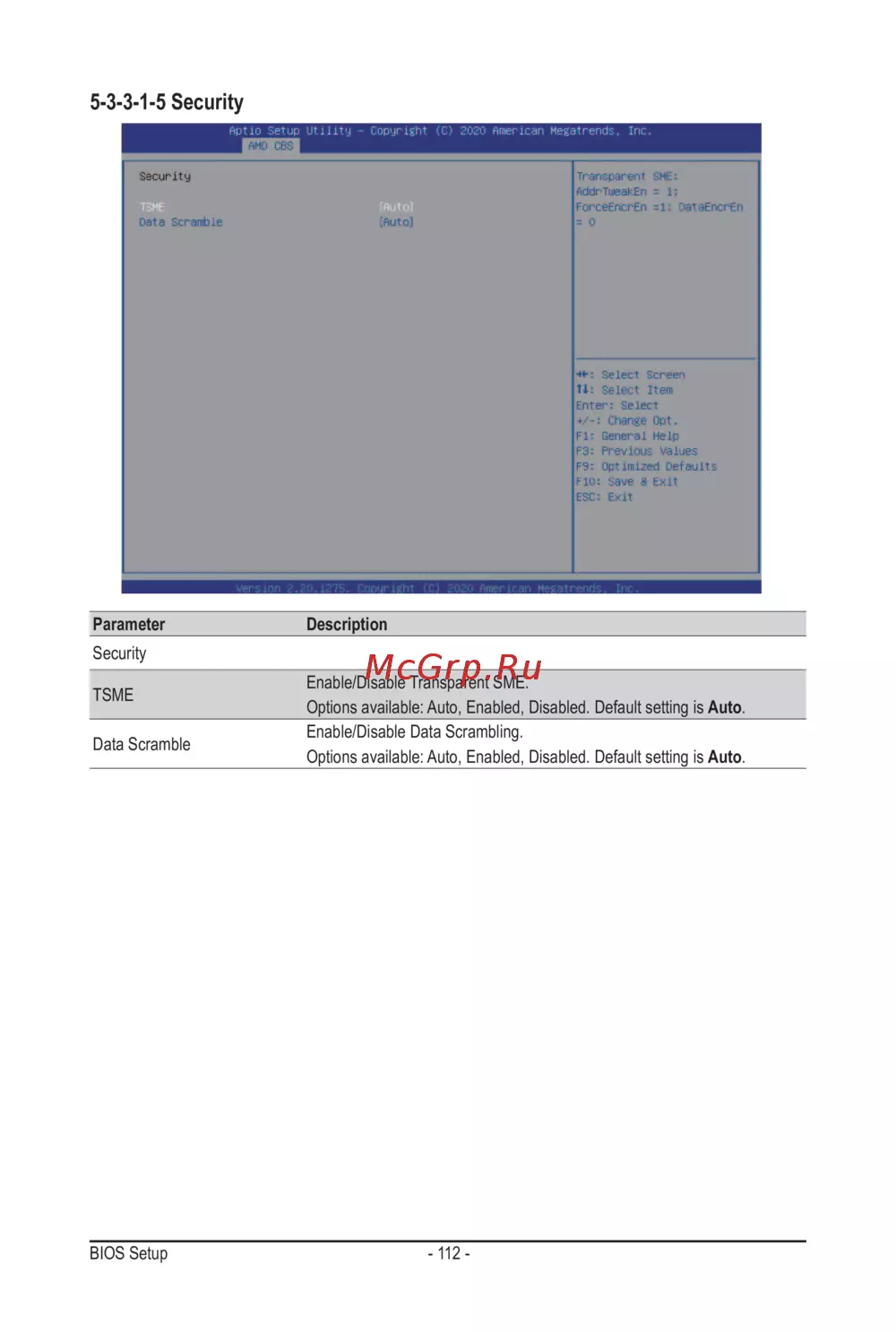

5-3-3-1-5 Security

Parameter Description

Security

TSME

Enable/Disable Transparent SME.

Options available: Auto, Enabled, Disabled. Default setting is Auto.

Data Scramble

Enable/Disable Data Scrambling.

Options available: Auto, Enabled, Disabled. Default setting is Auto.
