Gigabyte H262-Z6B (rev. 100) [126/172] 3 5 fch common options

BIOS Setup - 124 -

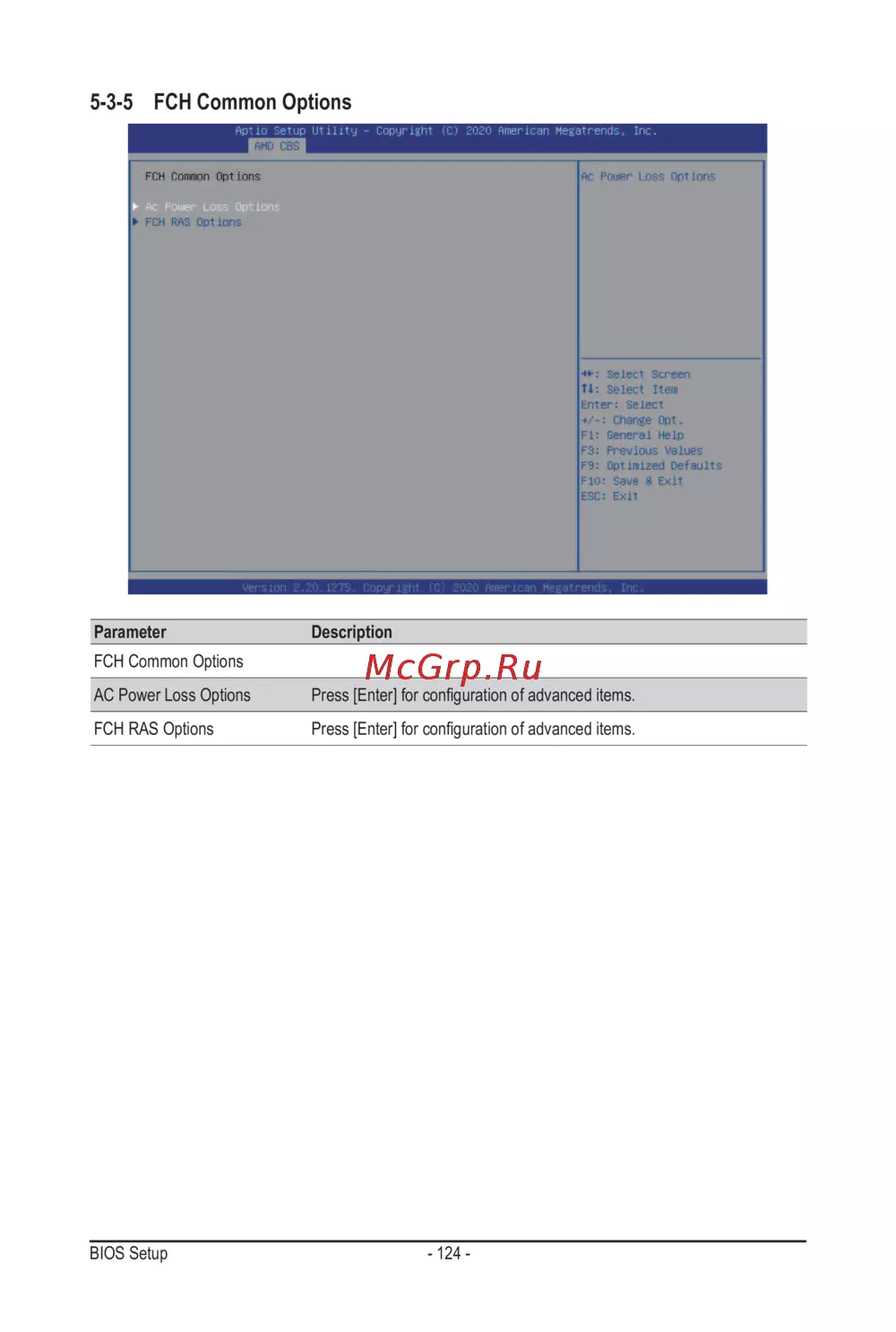

5-3-5 FCH Common Options

Parameter Description

FCH Common Options

AC Power Loss Options Press [Enter] for conguration of advanced items.

FCH RAS Options Press [Enter] for conguration of advanced items.
