Gigabyte H262-Z6B (rev. 100) [127/172] 3 5 1 ac power loss options

- 125 - BIOS Setup

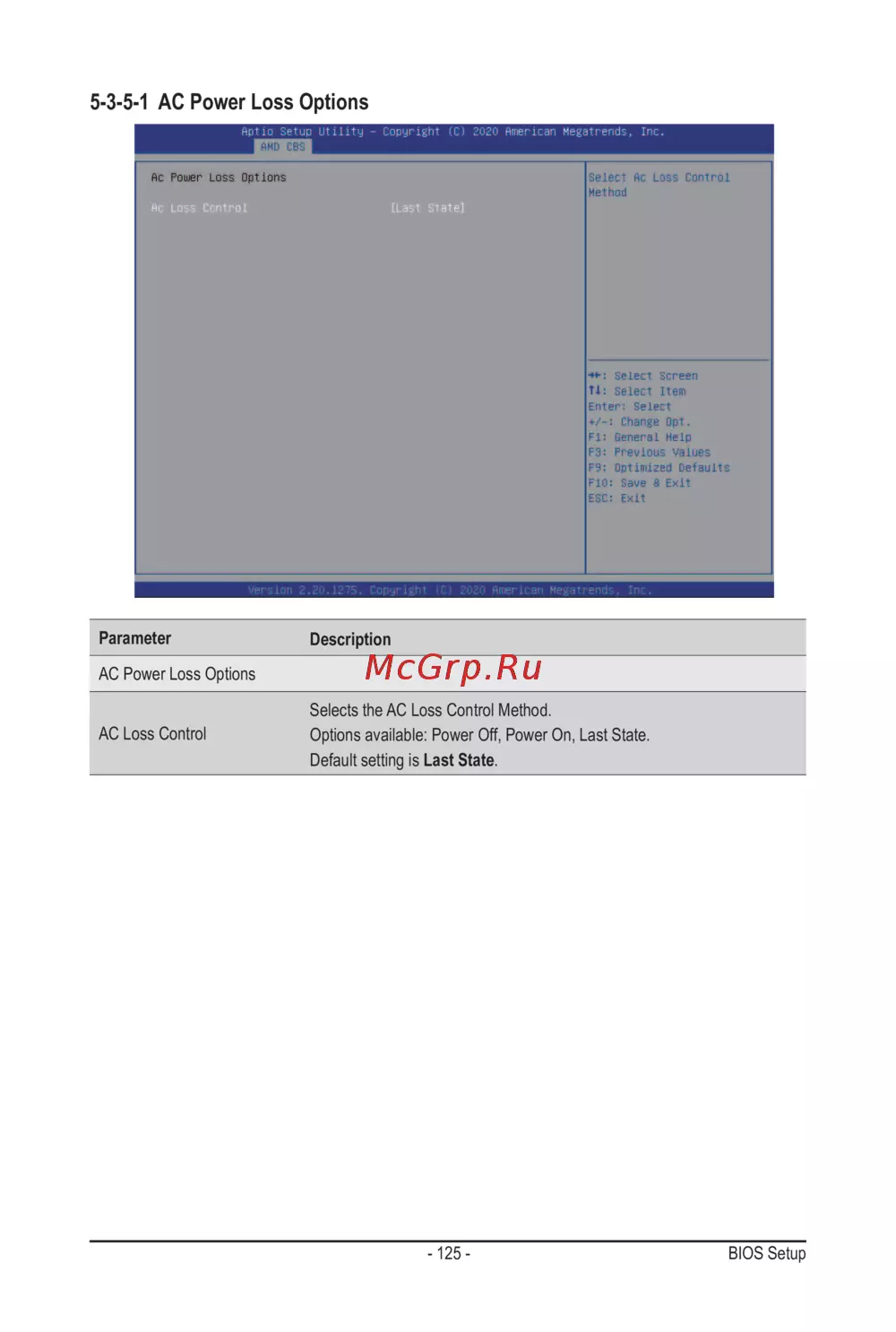

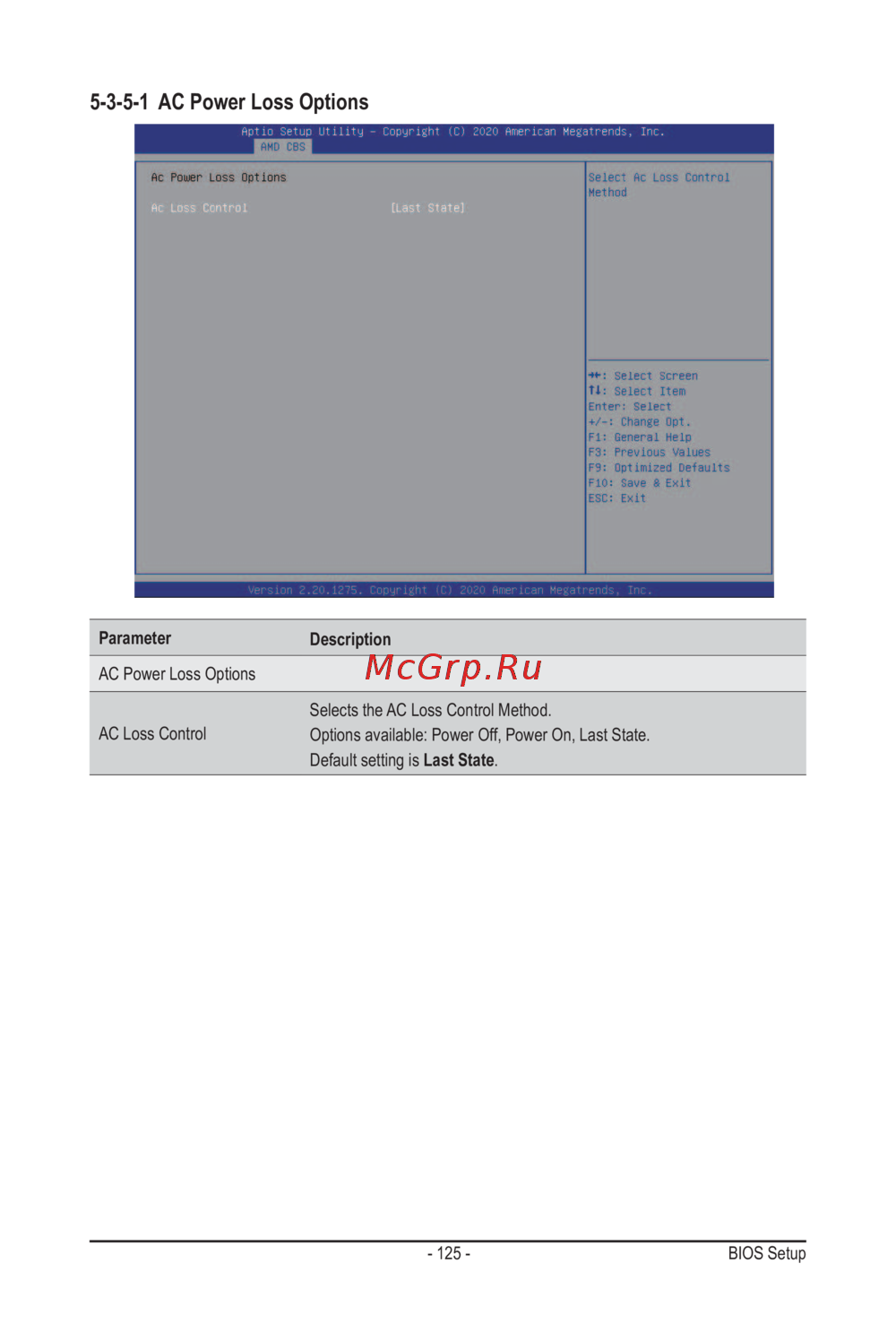

5-3-5-1 AC Power Loss Options

Parameter

Description

AC Power Loss Options

AC Loss Control

Selects the AC Loss Control Method.

Options available: Power Off, Power On, Last State.

Default setting is Last State.
