Gigabyte H262-Z6B (rev. 100) [131/172] 4 amd pbs menu

- 129 - BIOS Setup

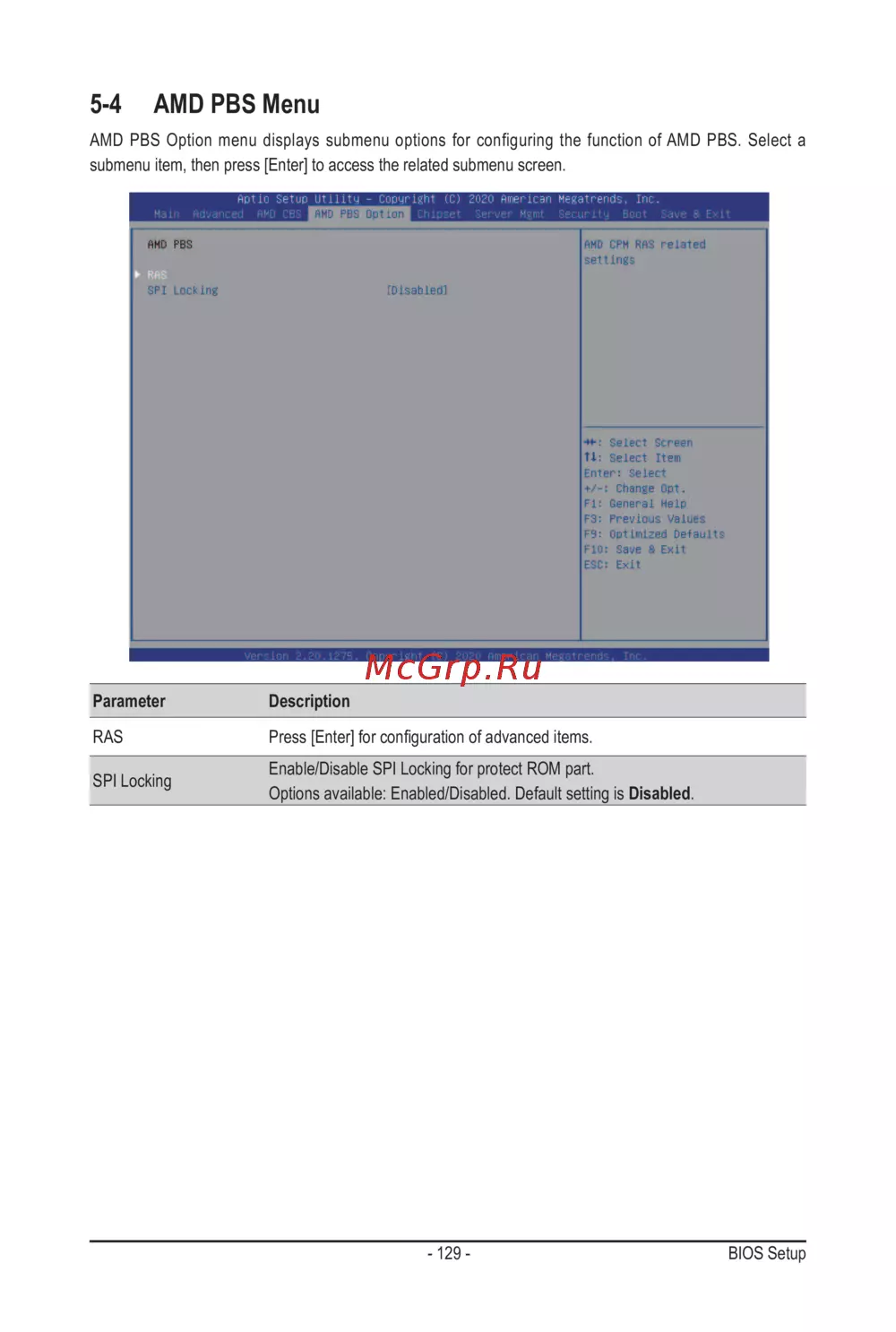

5-4 AMD PBS Menu

AMD PBS Option menu displays submenu options for configuring the function of AMD PBS. Select a

submenu item, then press [Enter] to access the related submenu screen.

Parameter Description

RAS Press [Enter] for conguration of advanced items.

SPI Locking

Enable/Disable SPI Locking for protect ROM part.

Options available: Enabled/Disabled. Default setting is Disabled.
