Gigabyte H262-Z6B (rev. 100) [135/172] 5 1 north bridge

- 133 - BIOS Setup

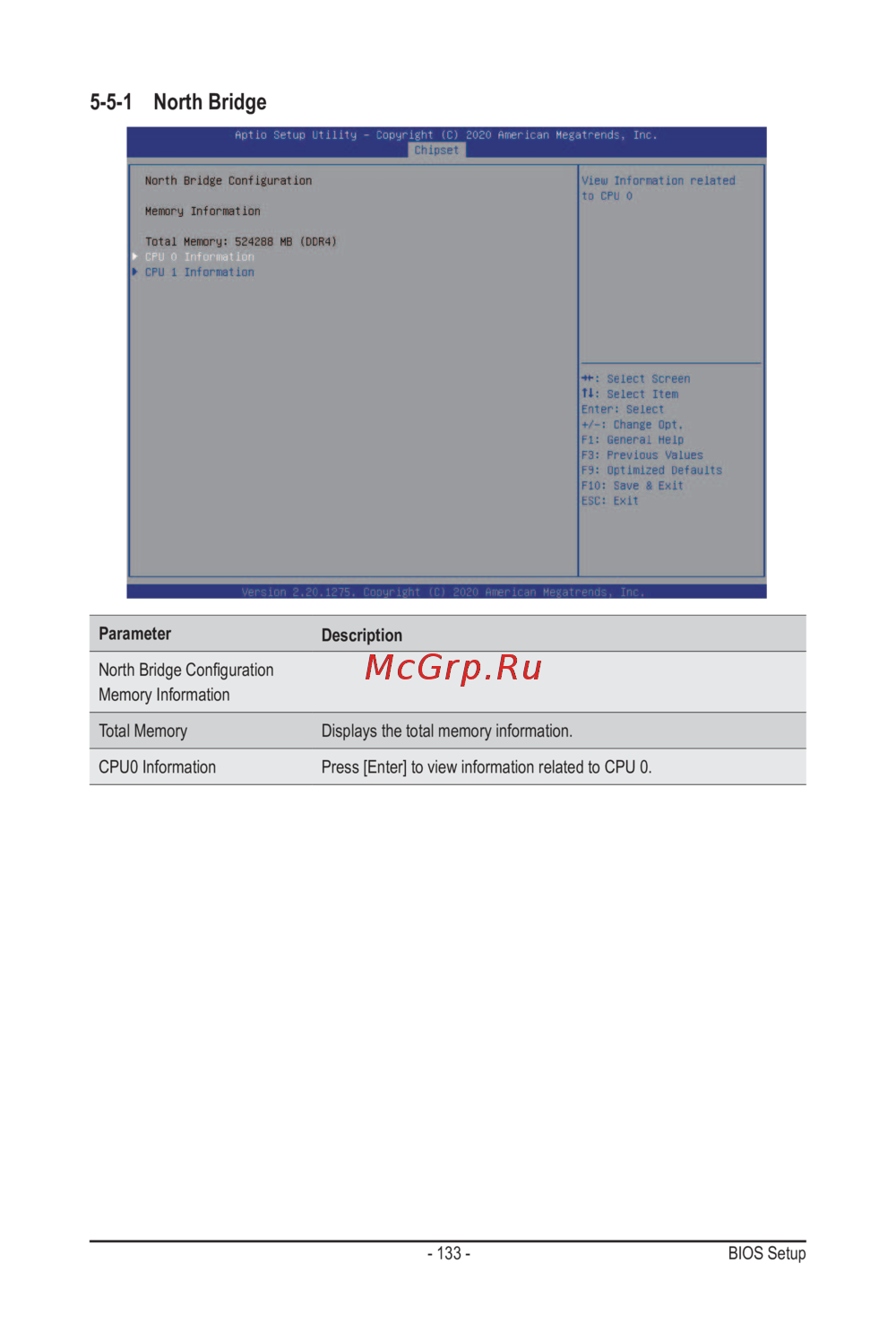

5-5-1 North Bridge

Parameter

Description

North Bridge Conguration

Memory Information

Total Memory Displays the total memory information.

CPU0 Information Press [Enter] to view information related to CPU 0.
