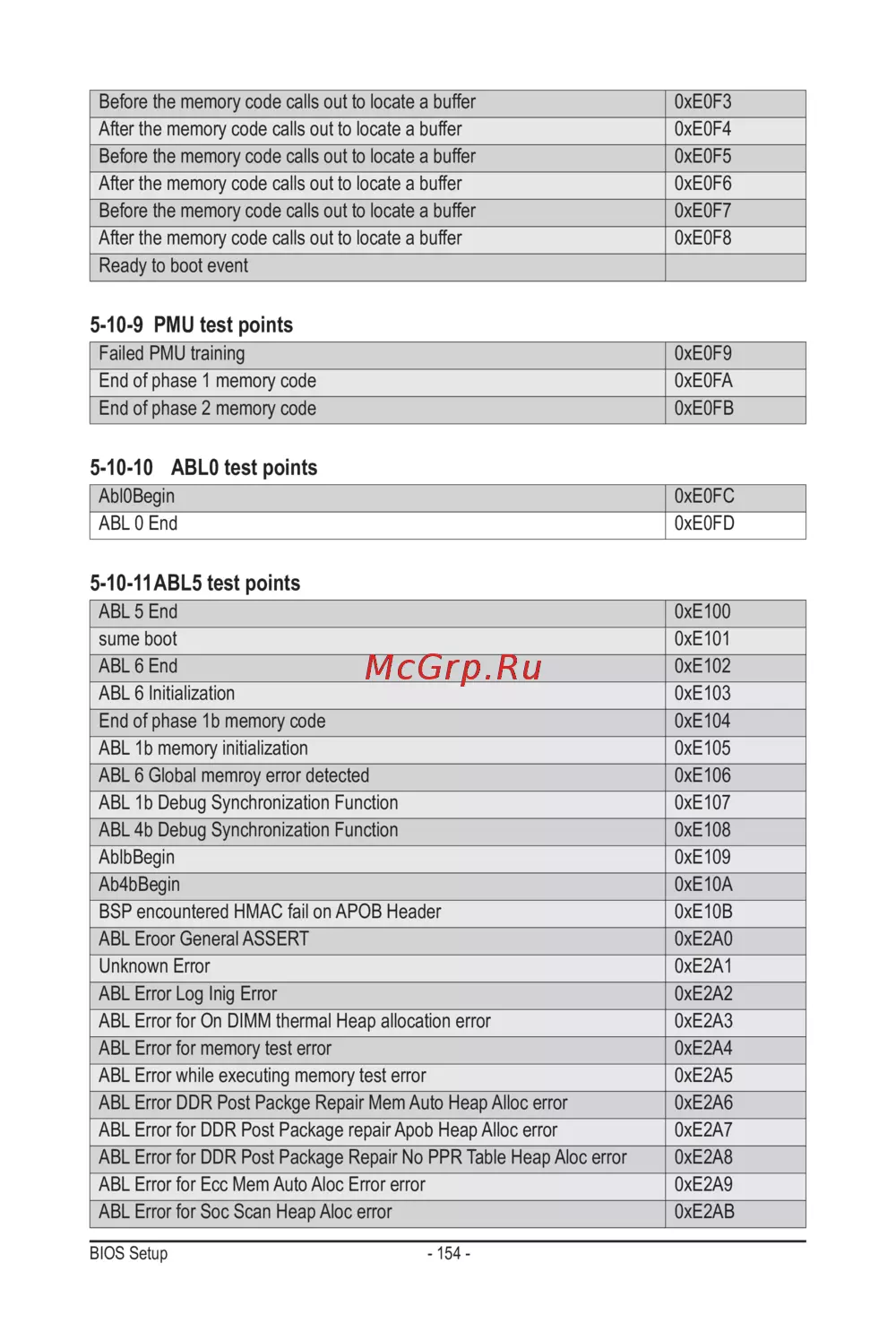

BIOS Setup - 154 -
Before the memory code calls out to locate a buffer 0xE0F3
After the memory code calls out to locate a buffer 0xE0F4
Before the memory code calls out to locate a buffer 0xE0F5
After the memory code calls out to locate a buffer 0xE0F6
Before the memory code calls out to locate a buffer 0xE0F7
After the memory code calls out to locate a buffer 0xE0F8
Ready to boot event
5-10-9 PMU test points
Failed PMU training 0xE0F9
End of phase 1 memory code 0xE0FA
End of phase 2 memory code 0xE0FB
5-10-10 ABL0 test points
Abl0Begin 0xE0FC
ABL 0 End 0xE0FD
5-10-11 ABL5 test points
ABL 5 End 0xE100
sume boot 0xE101
ABL 6 End 0xE102
ABL 6 Initialization 0xE103
End of phase 1b memory code 0xE104
ABL 1b memory initialization 0xE105
ABL 6 Global memroy error detected 0xE106
ABL 1b Debug Synchronization Function 0xE107
ABL 4b Debug Synchronization Function 0xE108
AblbBegin 0xE109
Ab4bBegin 0xE10A
BSP encountered HMAC fail on APOB Header 0xE10B
ABL Eroor General ASSERT 0xE2A0
Unknown Error 0xE2A1
ABL Error Log Inig Error 0xE2A2
ABL Error for On DIMM thermal Heap allocation error 0xE2A3
ABL Error for memory test error 0xE2A4
ABL Error while executing memory test error 0xE2A5
ABL Error DDR Post Packge Repair Mem Auto Heap Alloc error 0xE2A6
ABL Error for DDR Post Package repair Apob Heap Alloc error 0xE2A7
ABL Error for DDR Post Package Repair No PPR Table Heap Aloc error 0xE2A8
ABL Error for Ecc Mem Auto Aloc Error error 0xE2A9
ABL Error for Soc Scan Heap Aloc error 0xE2AB
