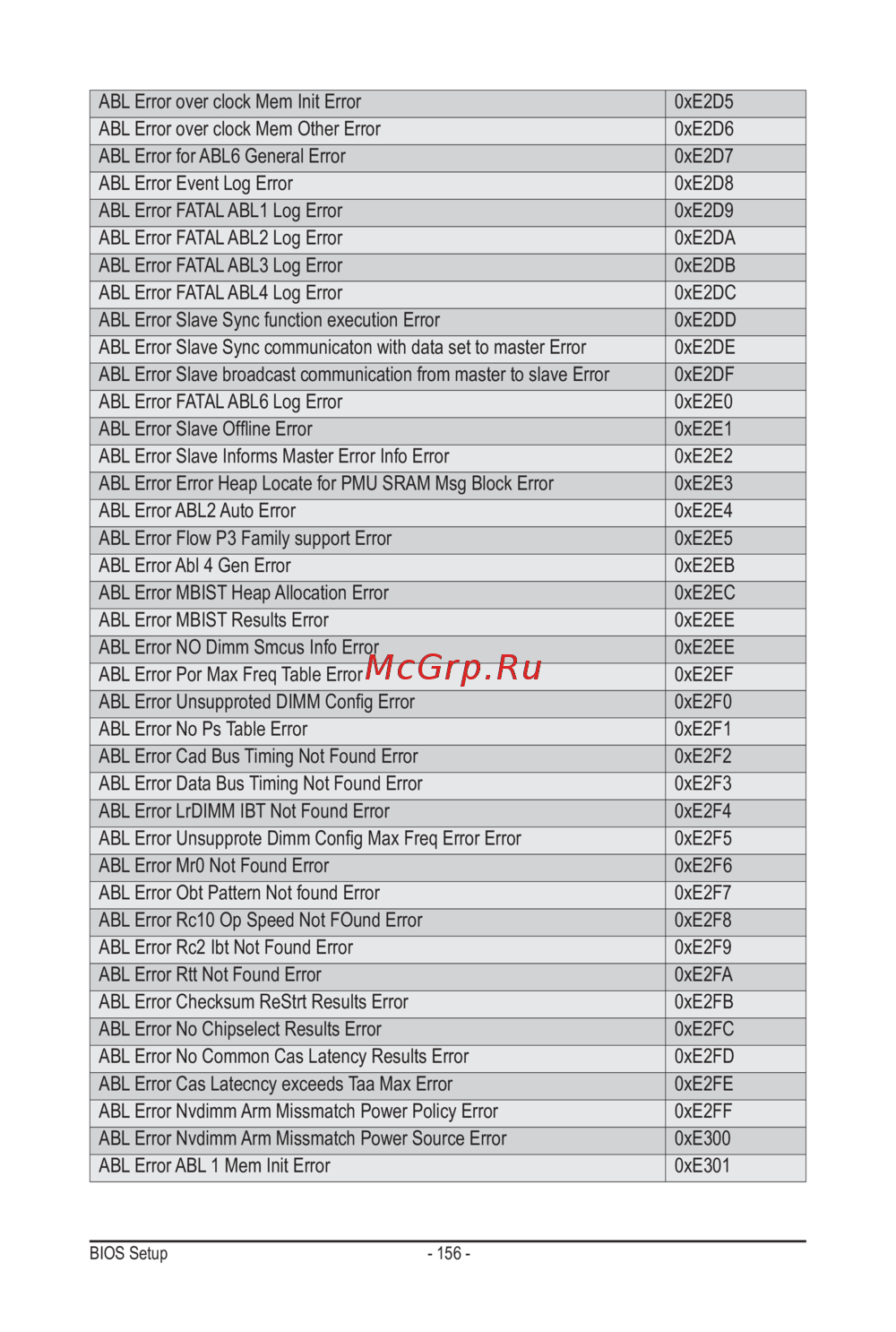

BIOS Setup - 156 -
ABL Error over clock Mem Init Error 0xE2D5
ABL Error over clock Mem Other Error 0xE2D6
ABL Error for ABL6 General Error 0xE2D7
ABL Error Event Log Error 0xE2D8
ABL Error FATAL ABL1 Log Error 0xE2D9
ABL Error FATAL ABL2 Log Error 0xE2DA
ABL Error FATAL ABL3 Log Error 0xE2DB
ABL Error FATAL ABL4 Log Error 0xE2DC
ABL Error Slave Sync function execution Error 0xE2DD
ABL Error Slave Sync communicaton with data set to master Error 0xE2DE
ABL Error Slave broadcast communication from master to slave Error 0xE2DF
ABL Error FATAL ABL6 Log Error 0xE2E0
ABL Error Slave Ofine Error 0xE2E1
ABL Error Slave Informs Master Error Info Error 0xE2E2
ABL Error Error Heap Locate for PMU SRAM Msg Block Error 0xE2E3
ABL Error ABL2 Auto Error 0xE2E4
ABL Error Flow P3 Family support Error 0xE2E5
ABL Error Abl 4 Gen Error 0xE2EB
ABL Error MBIST Heap Allocation Error 0xE2EC
ABL Error MBIST Results Error 0xE2EE
ABL Error NO Dimm Smcus Info Error 0xE2EE
ABL Error Por Max Freq Table Error 0xE2EF
ABL Error Unsupproted DIMM Cong Error 0xE2F0
ABL Error No Ps Table Error 0xE2F1
ABL Error Cad Bus Timing Not Found Error 0xE2F2
ABL Error Data Bus Timing Not Found Error 0xE2F3
ABL Error LrDIMM IBT Not Found Error 0xE2F4
ABL Error Unsupprote Dimm Cong Max Freq Error Error 0xE2F5
ABL Error Mr0 Not Found Error 0xE2F6
ABL Error Obt Pattern Not found Error 0xE2F7
ABL Error Rc10 Op Speed Not FOund Error 0xE2F8
ABL Error Rc2 Ibt Not Found Error 0xE2F9
ABL Error Rtt Not Found Error 0xE2FA
ABL Error Checksum ReStrt Results Error 0xE2FB
ABL Error No Chipselect Results Error 0xE2FC
ABL Error No Common Cas Latency Results Error 0xE2FD
ABL Error Cas Latecncy exceeds Taa Max Error 0xE2FE
ABL Error Nvdimm Arm Missmatch Power Policy Error 0xE2FF
ABL Error Nvdimm Arm Missmatch Power Source Error 0xE300
ABL Error ABL 1 Mem Init Error 0xE301
