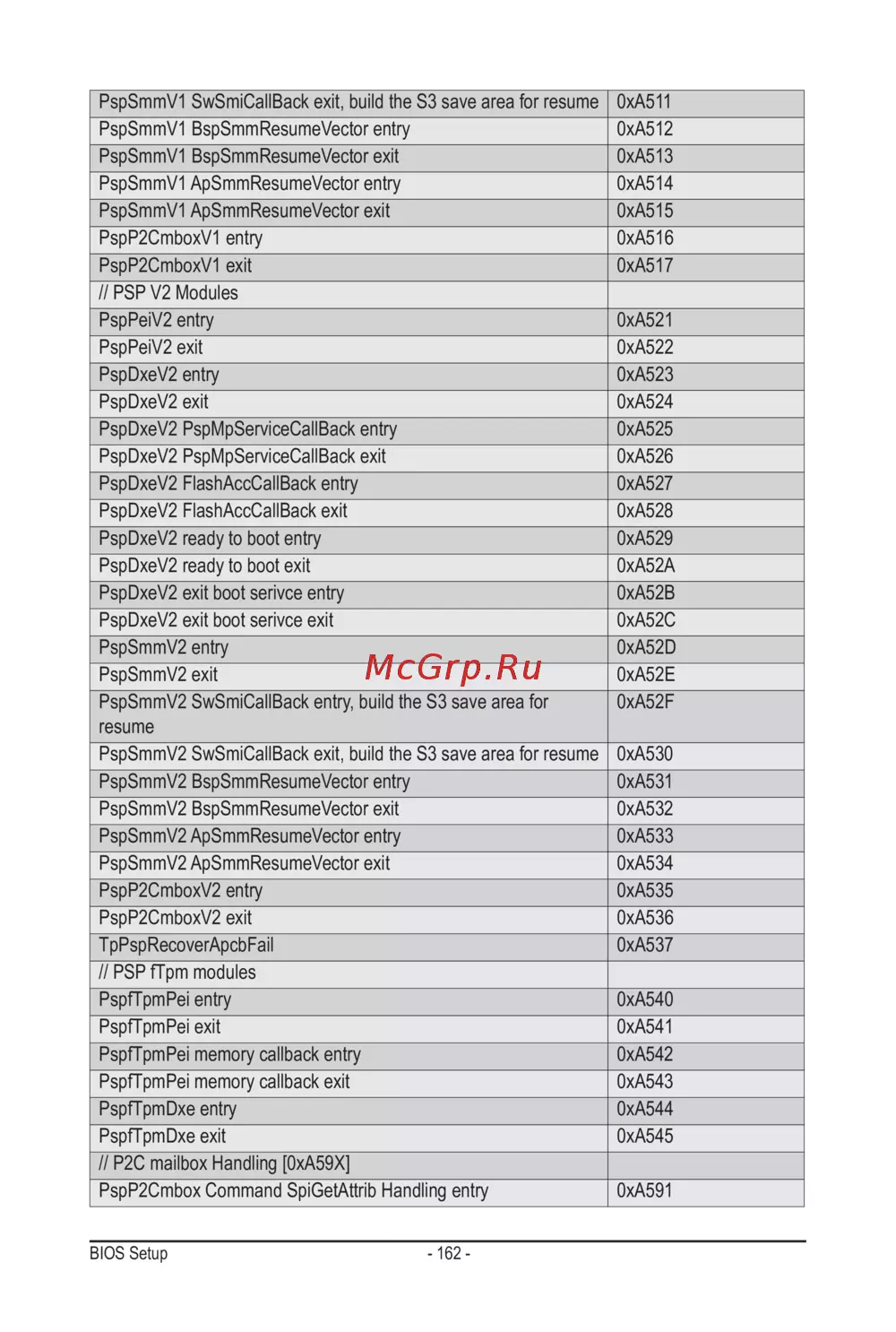

BIOS Setup - 162 -
PspSmmV1 SwSmiCallBack exit, build the S3 save area for resume 0xA511
PspSmmV1 BspSmmResumeVector entry 0xA512
PspSmmV1 BspSmmResumeVector exit 0xA513
PspSmmV1 ApSmmResumeVector entry 0xA514
PspSmmV1 ApSmmResumeVector exit 0xA515
PspP2CmboxV1 entry 0xA516
PspP2CmboxV1 exit 0xA517
// PSP V2 Modules
PspPeiV2 entry 0xA521
PspPeiV2 exit 0xA522
PspDxeV2 entry 0xA523
PspDxeV2 exit 0xA524
PspDxeV2 PspMpServiceCallBack entry 0xA525
PspDxeV2 PspMpServiceCallBack exit 0xA526
PspDxeV2 FlashAccCallBack entry 0xA527
PspDxeV2 FlashAccCallBack exit 0xA528
PspDxeV2 ready to boot entry 0xA529
PspDxeV2 ready to boot exit 0xA52A
PspDxeV2 exit boot serivce entry 0xA52B
PspDxeV2 exit boot serivce exit 0xA52C
PspSmmV2 entry 0xA52D
PspSmmV2 exit 0xA52E
PspSmmV2 SwSmiCallBack entry, build the S3 save area for
resume
0xA52F
PspSmmV2 SwSmiCallBack exit, build the S3 save area for resume 0xA530
PspSmmV2 BspSmmResumeVector entry 0xA531
PspSmmV2 BspSmmResumeVector exit 0xA532
PspSmmV2 ApSmmResumeVector entry 0xA533
PspSmmV2 ApSmmResumeVector exit 0xA534
PspP2CmboxV2 entry 0xA535
PspP2CmboxV2 exit 0xA536
TpPspRecoverApcbFail 0xA537
// PSP fTpm modules
PspfTpmPei entry 0xA540
PspfTpmPei exit 0xA541
PspfTpmPei memory callback entry 0xA542
PspfTpmPei memory callback exit 0xA543
PspfTpmDxe entry 0xA544
PspfTpmDxe exit 0xA545
// P2C mailbox Handling [0xA59X]
PspP2Cmbox Command SpiGetAttrib Handling entry 0xA591
