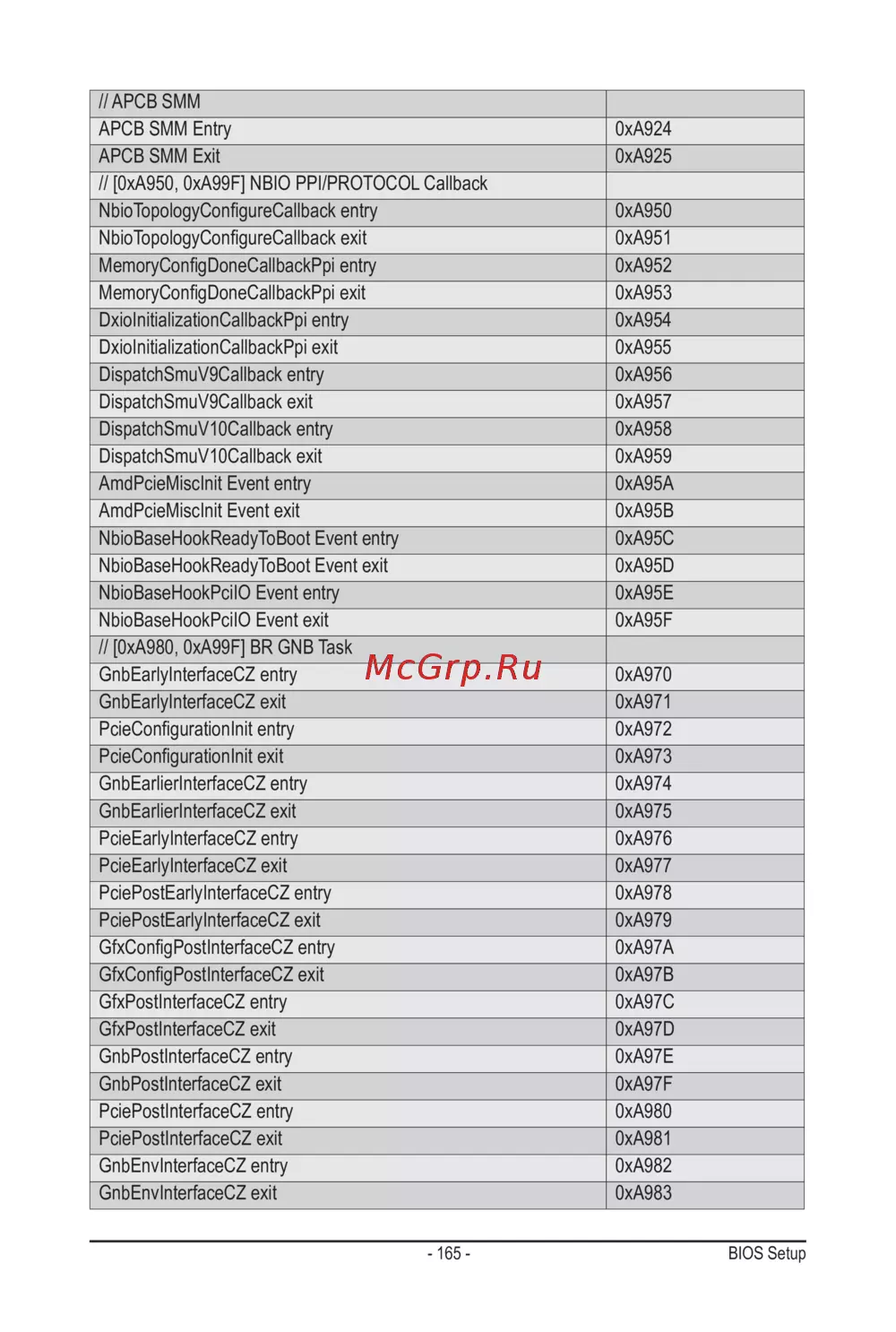

- 165 - BIOS Setup
// APCB SMM
APCB SMM Entry 0xA924
APCB SMM Exit 0xA925
// [0xA950, 0xA99F] NBIO PPI/PROTOCOL Callback
NbioTopologyCongureCallback entry 0xA950
NbioTopologyCongureCallback exit 0xA951
MemoryCongDoneCallbackPpi entry 0xA952
MemoryCongDoneCallbackPpi exit 0xA953
DxioInitializationCallbackPpi entry 0xA954
DxioInitializationCallbackPpi exit 0xA955
DispatchSmuV9Callback entry 0xA956
DispatchSmuV9Callback exit 0xA957
DispatchSmuV10Callback entry 0xA958
DispatchSmuV10Callback exit 0xA959
AmdPcieMiscInit Event entry 0xA95A
AmdPcieMiscInit Event exit 0xA95B
NbioBaseHookReadyToBoot Event entry 0xA95C
NbioBaseHookReadyToBoot Event exit 0xA95D
NbioBaseHookPciIO Event entry 0xA95E
NbioBaseHookPciIO Event exit 0xA95F
// [0xA980, 0xA99F] BR GNB Task
GnbEarlyInterfaceCZ entry 0xA970
GnbEarlyInterfaceCZ exit 0xA971
PcieCongurationInit entry 0xA972
PcieCongurationInit exit 0xA973
GnbEarlierInterfaceCZ entry 0xA974
GnbEarlierInterfaceCZ exit 0xA975
PcieEarlyInterfaceCZ entry 0xA976
PcieEarlyInterfaceCZ exit 0xA977
PciePostEarlyInterfaceCZ entry 0xA978
PciePostEarlyInterfaceCZ exit 0xA979
GfxCongPostInterfaceCZ entry 0xA97A
GfxCongPostInterfaceCZ exit 0xA97B
GfxPostInterfaceCZ entry 0xA97C
GfxPostInterfaceCZ exit 0xA97D
GnbPostInterfaceCZ entry 0xA97E
GnbPostInterfaceCZ exit 0xA97F
PciePostInterfaceCZ entry 0xA980
PciePostInterfaceCZ exit 0xA981
GnbEnvInterfaceCZ entry 0xA982
GnbEnvInterfaceCZ exit 0xA983
