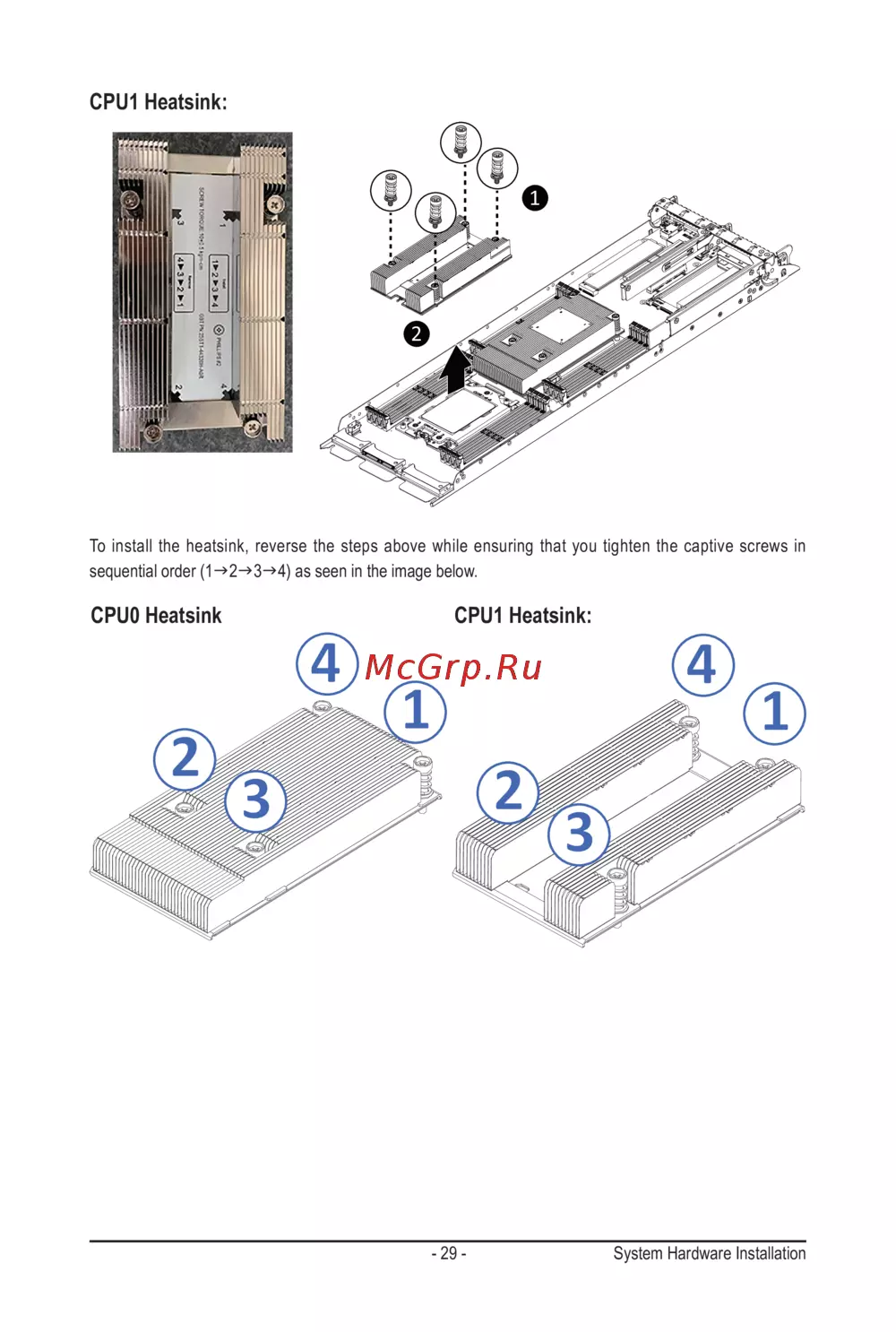

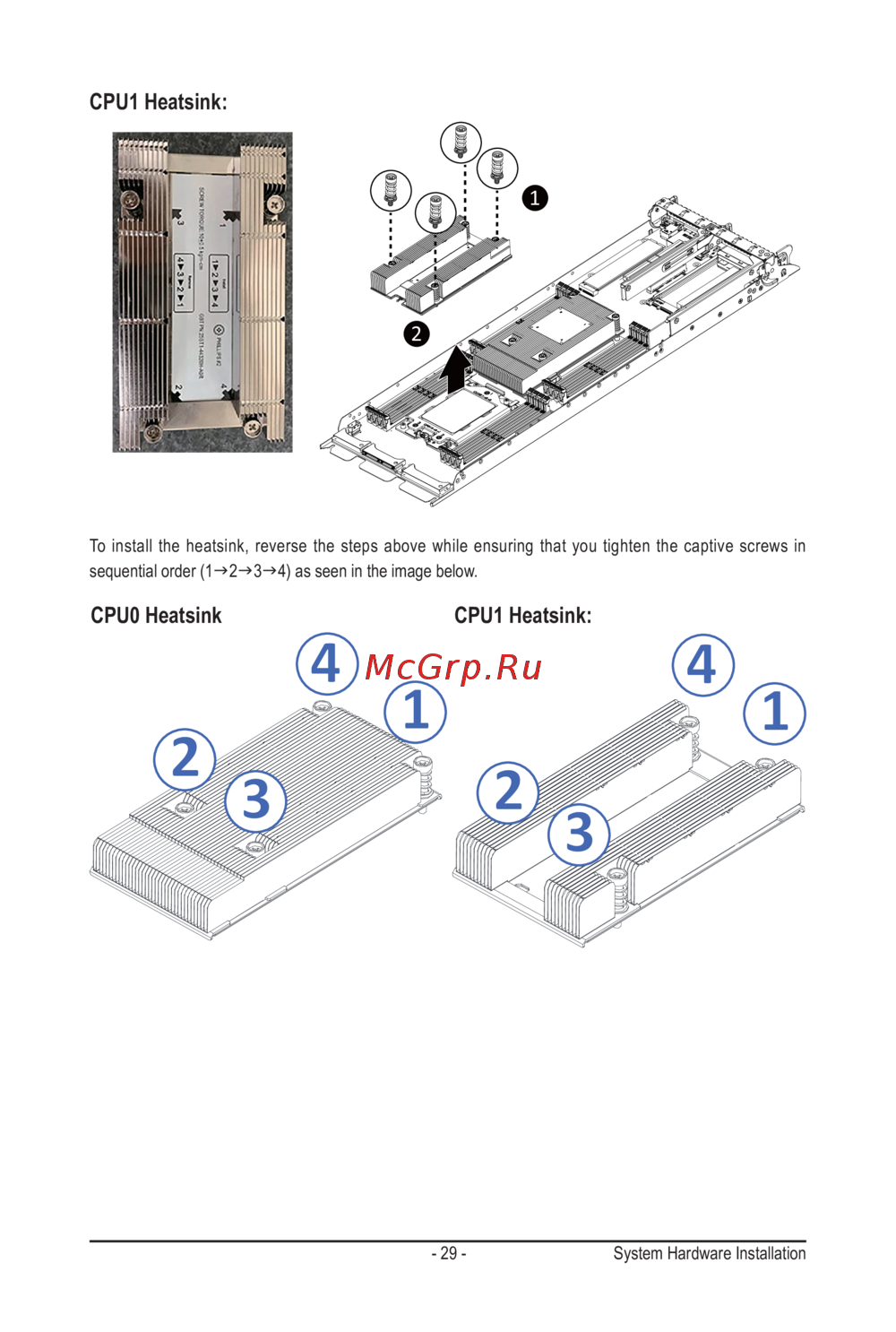

Gigabyte H262-Z6B (rev. 100) [31/172] Cpu1 heatsink

- 29 - System Hardware Installation

CPU1 Heatsink:

To install the heatsink, reverse the steps above while ensuring that you tighten the captive screws in

sequential order (1

4) as seen in the image below.

CPU0 Heatsink CPU1 Heatsink:
